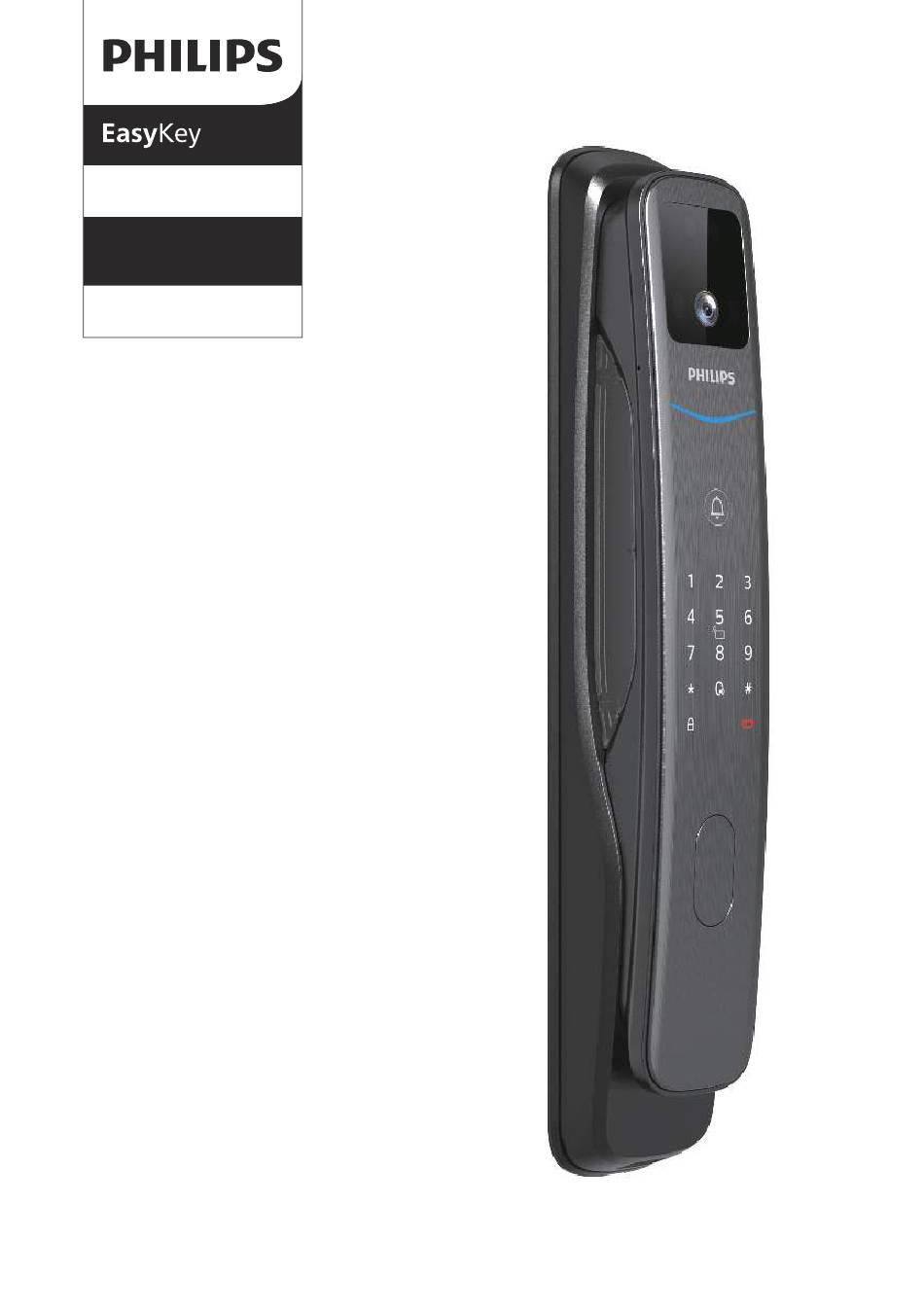

7000 series
Palm vein
smart door lock
DDL702-MVP-17HWS
User
manual
Register your product and
get support at www.philips.com/support

Advertisement

loading
Need help?

Need help?

Do you have a question about the EasyKey 7000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Philips EasyKey 7000 Series

  • Page 1 7000 series Palm vein smart door lock DDL702-MVP-17HWS User manual Register your product and get support at www.philips.com/support...
  • Page 3: Table Of Contents

    Contents 1 Important Information 6 Other features Safety Armed mode Caution Mute mode Disposal of used locks and batteries Factory reset Doorbell Video and intercom Display 2 Assembly Included items Explodedviews 7 Indicators Notice before assembling Adjustable latch instructions Lock status indicator Assembly steps Low battery indicator Armed mode indicator...
  • Page 4: Important Information

    ◆ Please ensure that installation or any component replacement is carried out by ◆ Please do not attempt to forcibly disassemble Philips, a Philips authorized service center, or the product to trigger an alert or cause damage. professional technicians. ◆ Please avoid using sharp objects to scrape ◆...
  • Page 5: Assembly

    2 Assembly Included items This included item list is for reference only. Please refer to the actual packing items. ① Exterior assembly with ② Interior assembly with ③ Drilling template ④ Mortise silicone pad silicone pad Easy Key Warranty Quick Start EasyKey Easy Key Card...
  • Page 6: Explodedviews

    Exploded views 1. Display ×1 6. Mortise x1 12. Lock cylinder anchor 2. Li-polymer battery ×1 7. Mortise anchor screw screw ×1 3. Interior assembly ×1 ×4 13. Square shaft ×1 4. M6 anchor screw ×3 8. M6 screw sleeve ×3 14.
  • Page 7: Notice Before Assembling

    Notice before assembling This product applies to doors with swing directions as follows: left-hand inswing, left-hand outswing, right-hand inswing, and right-hand outswing. Left-hand swing Right-hand swing Left-hand inswing Right-hand inswing Left-hand outswing Right-hand outswing Attention 1. Please select the appropriate installation kit based on the door thickness. 2. The product supports door thickness ranging from 38 to 120mm.
  • Page 8: Assembly Steps

    Assembly steps The following assembly steps apply to the right-hand swing doors. For left-hand swing doors, please read through the [Notice before assembling] and adjust the latch direction first. To drill holes in the door according Insert the lock cylinder into the to the drilling template, mount the mortise, then tighten the anchor mortise into the jamb, and secure the...
  • Page 9 Pass the connecting cable through the Closely align the mounting plate hole on the door. Align the keyhole against the interior side of the door, and the plastic cover, inserting them and secure it tightly with the M6 anchor to closely fit against the exterior side screw.
  • Page 10 Once the interior assembly is securely Install the batteries, put on the battery fixed, rotate the bottom deco cover cover and top cover to complete the back into place, then insert the assembly. assembly cables and mortise cables into their respective sockets. Assembly cable socket Mortise cable socket...
  • Page 11: Get To Know Your Lock

    3 Get to know your lock ① Palm vein module Exterior assembly ② Camera ③ Fingerprint sensor(back of the handle) ④ Doorbell ⑤ Keypad ⑥ Mute button ⑦ Lock button ⑧ Lock button ⑨ Radar sensor ⑩ Lock status indicator ⑪...
  • Page 12: Settings

    4 Settings Instructions before setting ◆ The system modes include the general mode and dual verification mode. General mode Door can be opened using any enrolled unlock method. Dual verification mode Door can be opened using any two combinations of fingerprint, PIN code, key tag or palm vein recognition.
  • Page 13: Master Mode

    Master mode User settings Add a user PIN code Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. Master PIN code Press [1] to enter settings, then press [1] After illuminating the keypad, without again to add a user.
  • Page 14 Add or modify master fingerprint Add a one-time code Press the [*] key twice, enter the master PIN Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. code, and then press the [#] key to confirm. Press [1] to enter settings, then press [4] to Press [1] to enter settings, then press [2] to add or modify the master fingerprint.
  • Page 15: System Settings

    删除用户 Delete a user Volume settings Press the [*] key twice, enter the master PIN Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. code, and then press the [#] key to confirm. Press [1] to enter settings, then press [6] to Press [2] to enter system settings, then press delete a user.
  • Page 16: Network Settings

    Dual verification Network settings Join a network Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. Press [2] to enter system settings, then press [4] to enable or disable dual verification.
  • Page 17: Network Connection

    Latch bolt rebound duration Please scan the QR code or go to the corresponding App Store to search and download “Philips Home Access”. Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm.
  • Page 18: Start Using Your Lock

    5 Start using your lock Outdoor/ indoor unlock Outdoor unlock Key tag Palm vein 密码开门 PIN code Fingerprint Push or Push or Push or pull pull pull Palm vein sensor Fingerprint Push or sensor pull Keypad Keypad ① Place the finger ①...
  • Page 19: Outdoor/ Indoor Lock

    Outdoor/ indoor lock After the door is closed, the main bolt will automatically extend to lock, accompanied by a voice prompt indicating that the door is closed. Outdoor lock If the automatic locking fails, press the lock button on the keypad after closing it.
  • Page 20: Indoor Lockout

    Indoor lockout When the smart lock is locked, push and rotate the thumb turn left or right to activate indoor lockout (as shown in the left image). To deactivate it, rotate the thumb turn back to the center position. Mechanical key ①Take out the mechanical ②Press the keyway cover, ③Insert the mechanical key...
  • Page 21: Other Features

    6 Other features Armed mode Function: Once the door lock is opened from the inside, it will trigger an alert. How to use: After locking the door, press [8] key to enter the armed mode. Attention 1. Armed mode is only available for mortise locks equipped with a detection switch;...
  • Page 22: Factory Reset

    Factory reset Function: Empty all user data and restore to factory default settings. How to use: Press the [RES] button twice with a sharp object to reset the lock, which will erase all user information. Doorbell Function: The indoor speaker plays a ding-dong sound, informing that someone is at the door.
  • Page 23: Video And Intercom

    Video and intercom Function: The app's video viewing feature allows real-time monitoring of the doorstep and two-way communication. How to use: Once the door lock is connected to the app, you can use the video viewing feature to monitor the doorway in real-time and engage in two-way communication.
  • Page 24: Indicators

    7 Indicators Status indicator Blue: when the system wakes up, the indicator turns blue, indicating that the door lock is ready for operation. Status indicator Green: when the door lock is unlocked, the indicator turns green, indicating that the door has opened. Red: when the door lock is locked, the indicator turns red, indicating that the door has closed.
  • Page 25: System Locking Indicator

    System locking indicator [2] button in flashing [1] button in flashing If there are five consecutive incorrect attempts within five minutes using fingerprint, PIN code, or key tag, the door lock will be locked for two minutes. Attention Prompts will only appear upon touching to wake up the keypad or In2mins In1min...
  • Page 26: Troubleshooting

    8 Troubleshooting Alert types Armed mode Triggering: when the door lock is in the armed mode, an alert will be triggered upon unlocking the lock from the inside Alert method: continuous, repeated alert sound Off: the alert ends upon successful verification of any unlock method Low battery alert Triggering: when the system awakens, it will...
  • Page 27 Latch abnormality alert Triggering: abnormal latch bolt operation resulting in unsuccessful locking or unlocking Alert method: continuous, repeated alert sound Off: the alert will be off automatically Motion detection alert Triggering: if suspicious individuals linger within the view of the main camera outside the door for a duration exceeding the preset value, it will activate a loitering alert.
  • Page 28: How To Apply External Power Source

    How to apply external power source If the battery voltage is low and you can't unlock the door from outside, you can use a 5V power bank as an emergency power source. After unlocking, be sure to replace the battery promptly. If the system malfunctions and the door can't be opened, you can also use a 5V power bank to power the lock, which will...
  • Page 30 Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of Shenzhen Conex Intelligent Technology Co., Ltd., and Shenzhen Conex...
