Philips EasyKey 7000 Series User Manual
Facial recognition smart door lock
Hide thumbs
Also See for EasyKey 7000 Series:
- User manual (30 pages) ,
- User manual (28 pages) ,
- User manual (30 pages)
Related Manuals for Philips EasyKey 7000 Series
Summary of Contents for Philips EasyKey 7000 Series

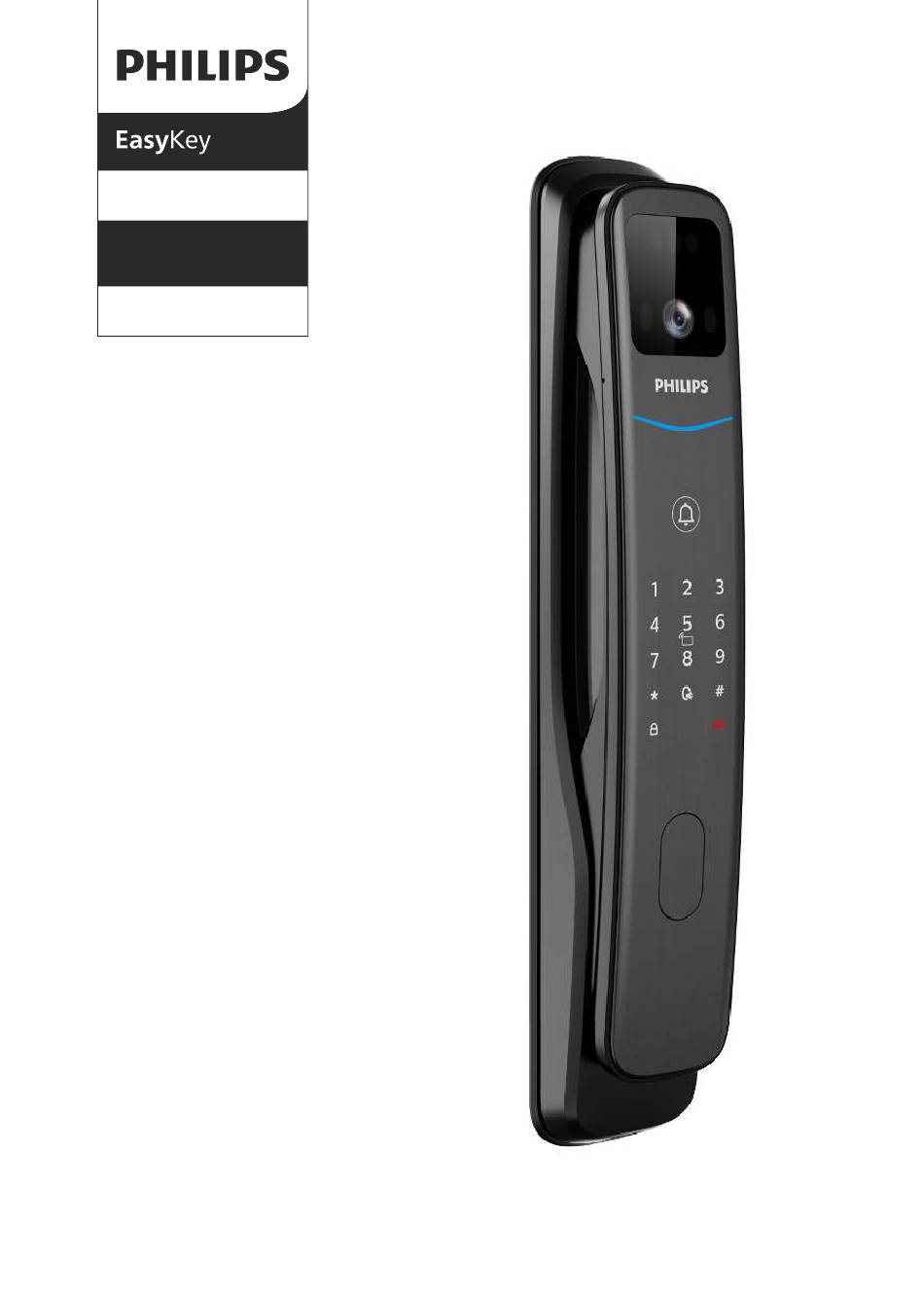

- Page 1 7000 series Facial recognition smart door lock DDL702-FVP-7HWS User manual Register your product(s) to get support from below link: www. philips.com/support...
-
Page 3: Table Of Contents
Contents 1. Important Information 6. Other features Safety Armed mode Caution Mute mode Disposal of used locks and batteries Factory reset Doorbell Video and intercom Display 2. Assembly Packing list Exploded views 7. Indicators Notice before assembling Adjustable latch instructions Lock status indicator Assembly steps Low battery indicator... -
Page 4: Important Information
Philips, a Philips authorized service center, or ◆ Please do not attempt to forcibly disassemble professional technicians. the product to trigger an alert or cause damage. -
Page 5: Assembly
2 Assembly Packing list This packing list is for reference only. Please refer to the actual included items. ① Exterior assembly with ② Interior assembly with ③ Drilling template ④ Mortise silicon pad silicon pad Easy Key Warranty Quick Start EasyKey Card Guide ⑤... -
Page 6: Exploded Views
Exploded views 1.Display × 1 8. M6 screw tube × 3 14. Spring × 1 2. Li-polymer battery × 1 9. Exterior assembly × 1 15. Bottom deco cover × 1 3. Interior assembly × 1 10. Plastic cover × 1 4. -
Page 7: Notice Before Assembling
Notice before assembling This product applies to doors with swing directions as follows left-hand inswing, left-hand outswing, right-hand inswing, and right-hand outswing. Left-hand swing Right-hand swing Left-hand inswing Right-hand inswing Left-hand outswing Right-hand outswing Attention 1. Please select the appropriate installation kit based on the door thickness. 2. -
Page 8: Assembly Procedure
Assembly procedure The following assembly steps apply to the right-hand swing doors. For left-hand swing doors, please read through the [Notice before assembling] and adjust the latch direction first. To drill holes in the door according Insert the lock cylinder into the to the drilling template, mount the corresponding position in the mortise, mortise into the jamb, and secure the... - Page 9 Pass the connecting cable through the Closely align the mounting plate hole on the door. Align the keyway against the interior side of the door, hole and the plastic cover, inserting and secure it tightly with the M6 them to closely fit against the exterior anchor screw.
- Page 10 Once the interior assembly is securely Install the batteries, put on the battery fixed, rotate the bottom deco cover cover and top cover to complete the back into place, then insert the assembly. assembly cables and mortise cables into their respective sockets. Assembly cable socket Mortise cable socket Assembly cable...
-
Page 11: Get To Know Your Lock
3 Get to know your lock This packing list is for reference only. Please refer to the actual packing items. Exterior assembly ① Facial recognition module ② Video module Fingerprint recognition area ③ (back of the handle) ④ Doorbell ⑤ Keypad ⑥... -
Page 12: Settings
4 Settings Instructions before setting The system modes include the general mode and dual verification mode. ◆ General mode door can be opened using any enrolled access method Door can be opened using any two combinations of Dual verification mode fingerprint, PIN code, key tag, or face ID. -
Page 13: Master Mode
Master mode Settings Add a user PIN code Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. Master PIN code Press [1] to enter settings, then press [1] again to add a user. The door lock will After illuminating the keypad, without automatically detect and add PIN codes, fingerprints, and key tags. - Page 14 Add or modify the master fingerprint Add a one-time PIN code Press the [*] key twice, enter the master PIN Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. code, and then press the [#] key to confirm. Press [1] to enter settings, then press [2] to add Press [1] to enter settings, then press [4] to a one-time code.
-
Page 15: System Settings
System settings Modify the master PIN code Language settings Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. Press [1] to enter settings, then press [5] to modify the master PIN code. - Page 16 Auto mode ECO settings Press the [*] key twice, enter the master PIN Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. code, and then press the [#] key to confirm. Press [2] to enter system settings, then press Press [2] to enter system settings, then press [6] [3] to enter ECO settings.
-
Page 17: Network Settings
Network settings Torque settings Join a network Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. Press the [*] key twice, enter the master PIN code, and then press the [#] key to confirm. Press [5] to enter assembly settings, select [2] to enter torque settings. -
Page 18: Network Connection
Network Connection Download the ofÏcial App Please scan the QR code or go to the corresponding App Store to search and download “Philips Home Access”. Add door Lock to network Scan QR code Step1: Connect the door lock with power supply and find the QR codeunder the rear trim of the door lock. - Page 19 5 Get to use your lock Outdoor/ indoor unlock Outdoor unlock Fingerprint Key tag PIN code Face ID Push/ Push/ Push/ Push/ pull the pull the pull the pull the handle handle handle handle to unlock to unlock to unlock to unlock Facial recognition...
- Page 20 Outdoor/ indoor lock After the door is closed, the main bolt will automatically extend to lock, accompanied by a voice prompt indicating that the door is closed. Outdoor lock If the automatic locking fails, press the lock button on the keypad after closing it.
-
Page 21: Lock-Out Mode
Lock-out mode When the smart lock is locked, turn the thumb turn left or right to activate privacy mode (as shown in the left image). To deactivate privacy mode, turn the thumb turn to the middle position. Mechanical key ① Take out the mechanical ②... -
Page 22: Other Features
6 Other features Armed mode Function: Once the door lock is opened from the inside, it will trigger an alert. How to use: After locking the door, press [8] key to enter the armed mode. Attention 1. Armed mode is only available for mortise locks equipped with a Armed mode button detection switch;... -
Page 23: Factory Reset
Factory reset Function: Empty all user data and restore to factory default settings. How to use: Press the [RES] button twice with a sharp object to reset the lock, which will erase all user information. Doorbell Function: The indoor speaker plays a ding- dong sound, informing that someone is at the door. -
Page 24: Video And Intercom
Video and intercom Function: The app's video viewing feature allows real-time monitoring of the doorstep and two-way communication. How to use: Once the door lock is connected to the app, you can use the video viewing feature to monitor the doorway in real-time and engage in two-way communication. -
Page 25: Indicators
7 Indicators Status indicator Blue: when the system wakes up, the indicator turns blue, indicating that the door lock is ready for operation. Green: when the door lock is unlocked, the indicator turns green, indicating that the door has opened. Status indicator Red: when the door lock is locked, the... -
Page 26: Armed Mode Indicator
Armed mode indicator White: when the door lock is in the locked state, the [8] key illuminates, indicating that the Armed mode can be activated. Attention Armed mode is only available for mortise locks equipped with a detection switch; mortise locks without a detection switch do not support this Armed mode indicator feature. -
Page 27: Troubleshooting
8 Troubleshooting Alert types Armed mode Triggering: when the door lock is in the armed mode, an alert will be triggered upon unlocking the lock from the inside. Alert method: continuous, repeated alert sound. Off: the alert ends upon successful verification of any access method.inside. - Page 28 Tamper alert Triggering1: after the door gap is pried open, the assitant bolt will extend. Alert method: continuous, repeated alert sound. Off: the alert will be off automatically or after a successful verification of any access method Triggering1: exterior assembly is pried open, and not properly aligned with the door Alert method: Alert method: continuous, repeated alert sound.
- Page 29 Motion detection alert Triggering1: if suspicious individuals linger within the view of the main camera outside the door for a duration Radar exceeding the preset value, it will activate a sensor loitering alert. Alert method: the main camera will automatically capture video or images and send alert notifications to the app.
-
Page 30: How To Apply External Power Source
How to apply external power source When the battery voltage is low and you're unable to unlock the door from outside, you can use a 5V power bank as an emergency power source for the door lock. After unlocking the door, please replace the battery promptly. -
Page 31: Battery Charging
Battery charging Remove the battery from the door lock and charge the lithium polymer battery using a charging cable. Note: 1. The lithium polymer battery has a one-year warranty. 2. Charging voltage 5V. 3. Poor network conditions may accelerate battery consumption in the door lock. - Page 32 Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of Shenzhen Conex Intelligent Technology Co., Ltd., and Shenzhen Conex Intelligent Technology Co., Ltd. is the warrantor concerning this...
