Specification:
Blow Per Min
Cutting Capacity
Stroke Length
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Air Body Saw & File
ST-6600D
5,000 b.p.m.
Alum. 3mm thickness
0.394" (10mm)
8.5 CFM (240 L/min)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.97 lbs (1.35 kg)
Noise and Vibration:
Vibration
EN ISO 28927-8
Sound Pressure Level
Load:
2.6 m/s²
Sound power level
Uncertainty
K= 1.5 m/s
²
Noise
Remark
EN ISO 15744
Please always
load: 74 dB(A)
wear ear
protector at
environment
load: 85 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
hearing!
K= 3dB
ST-6600D-S-2212A-D5F
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-6600D
Summary of Contents for Sumake ST-6600D

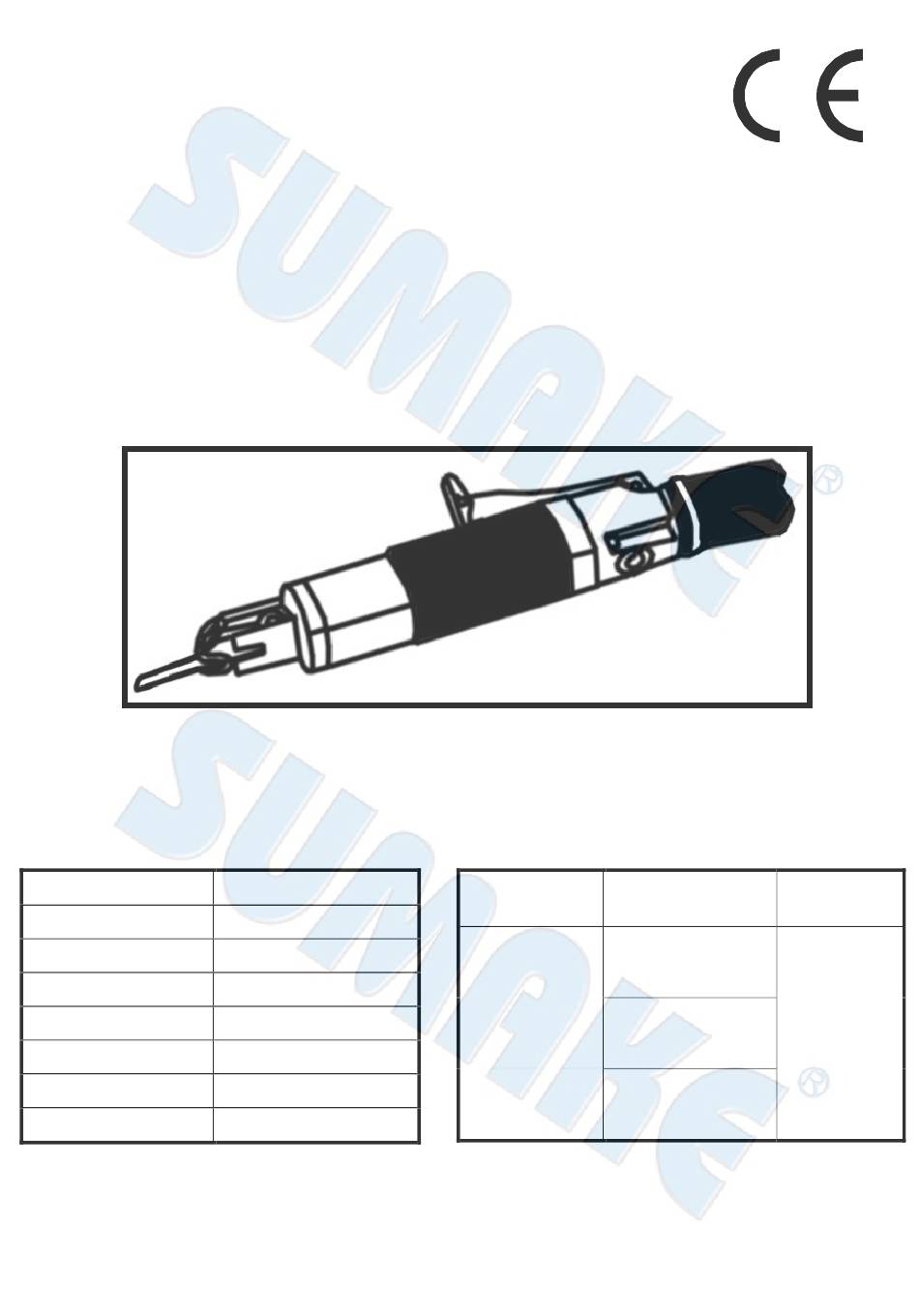

- Page 1 3/8” (10 mm) dB(A) due to risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! K= 1.5 m/s K= 3dB ² Net Weight 2.97 lbs (1.35 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6600D-S-2212A-D5F...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR BODY SAW & FILE Model/ Serial No.： ST-6600D to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 3 ⚫ Tool accessory may continue to function briefly after throttle is released. ⚫ Use accessories recommended by SUMAKE. ⚫ Do not use dull or damaged blades. Do not force the tool. It will perform better when used at the speed for which it was designed.
-
Page 4: Parts List
ST-6600D AIR BODY SAW & FILE PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 6600D-01 Body 6600D-26 Spring Pin 6600D-02 Cylinder 6600D-28 O-Ring 6600D-03 Piston Rod 6600D-29 O-Ring 6600D-04 Operate Piston 6600D-30 Air Regulator 6600D-05 Work Piston 6600D-32... - Page 5 CUTTER(SAW) Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 other parts of the body. 2. While using the tool, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks which may help avoid discomfort and fatigue. 3.
- Page 8 the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary.
