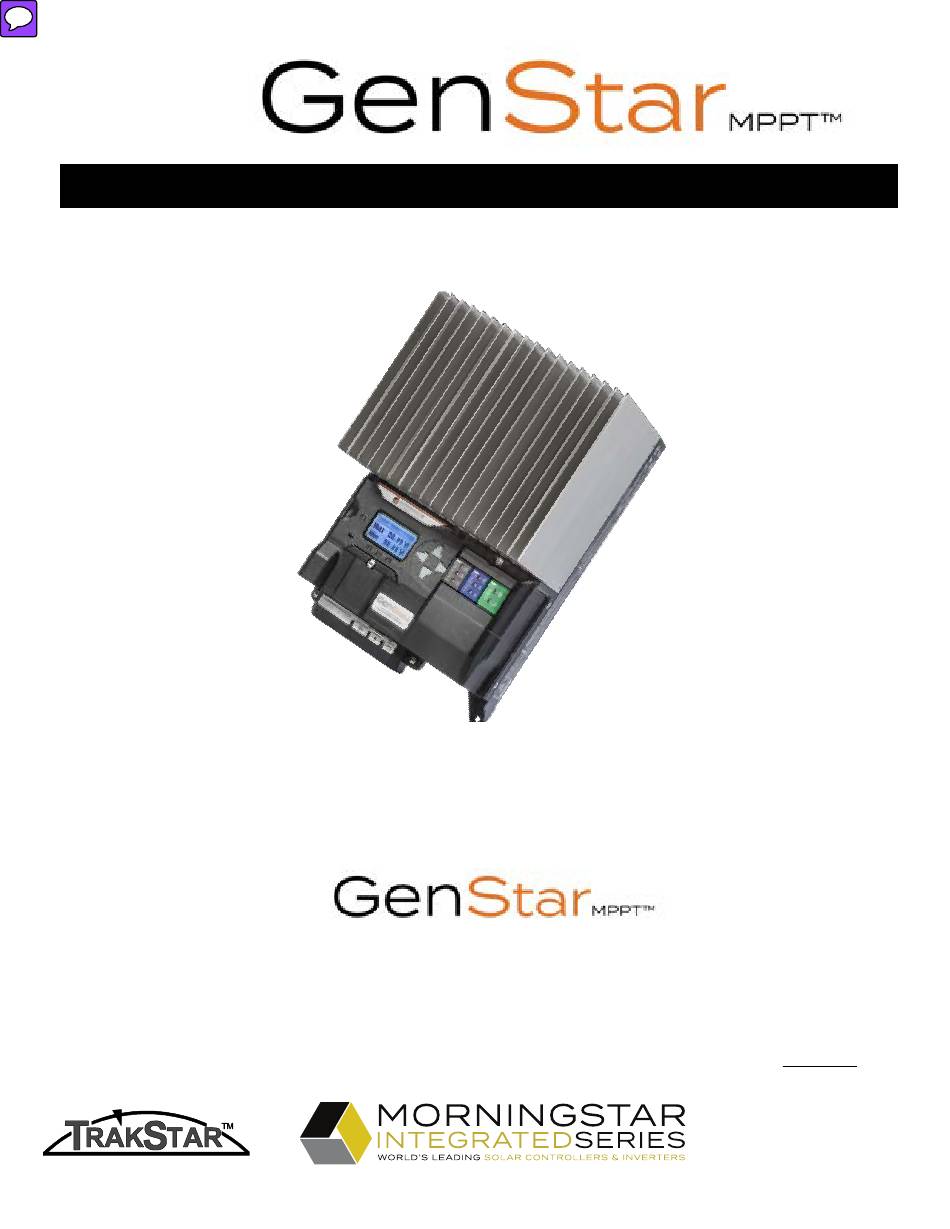

Solar DC System Controller
Installation, Operation and Maintenance Manu al
Solar Battery Charger & Load Controller
With
TrakStar
Maximum Power Point Tracking Technology
TM
MODELS
GS-MPPT-60M-200V
GS-MPPT-80M-200V
GS-MPPT-100M-200V
MAXIMUM POWER POINT TRACKING
