CYP CR-IPS4 Operation Manual

Ip to serial controller with 4 x i/o ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

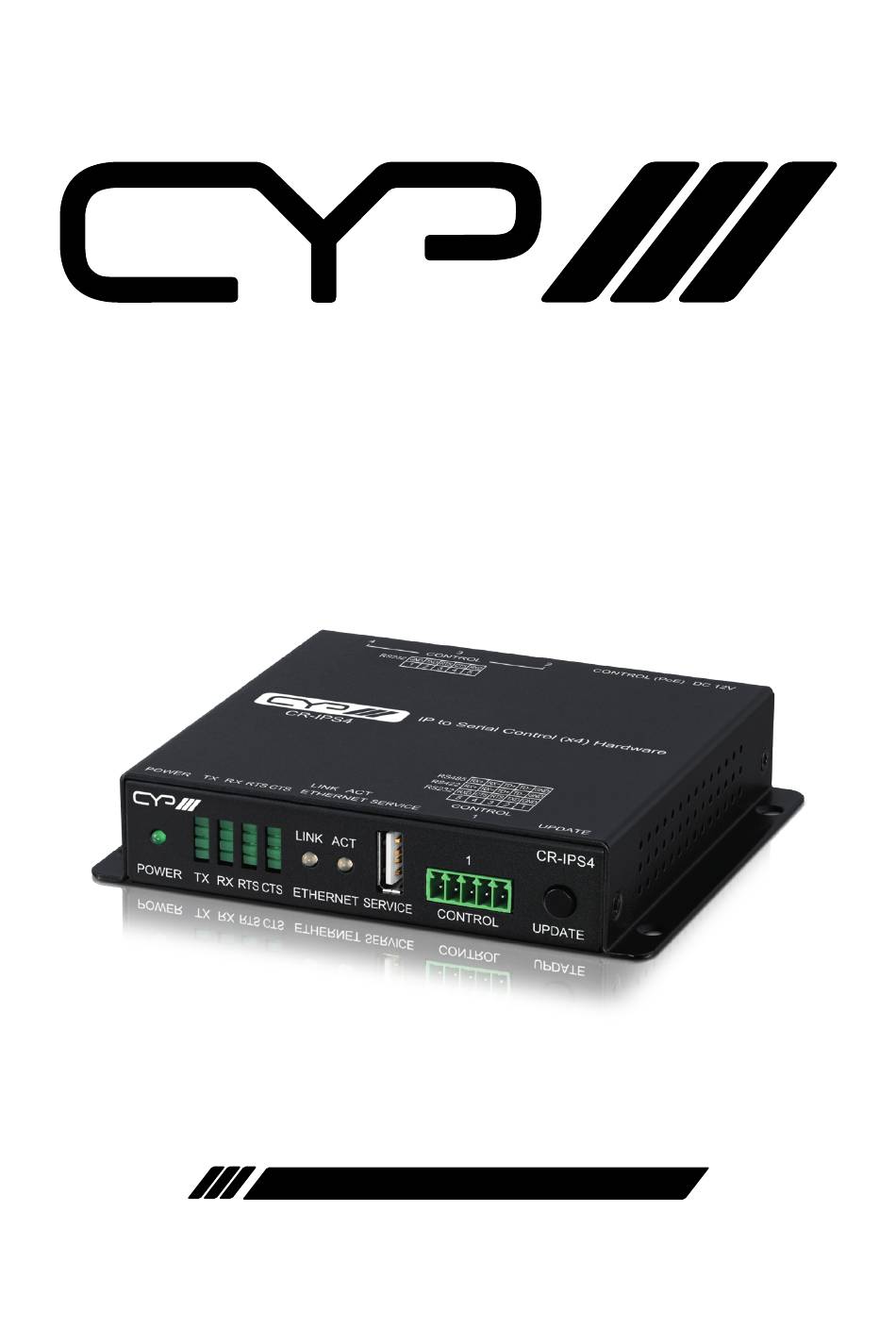

CR-IPS4
IP to Serial Controller with 4 x I/O Ports
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-IPS4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CR-IPS4

Summary of Contents for CYP CR-IPS4

  • Page 1 CR-IPS4 IP to Serial Controller with 4 x I/O Ports OPERATION MANUAL...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Version History

    VERSION HISTORY REV. DATE SUMMARY OF CHANGE Ver 1.00 2024/12/10 Initial Release...

  • Page 6: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications ............1 3. Package Contents ..........1 4. System Requirements ...........2 5. Features ..............2 6. Operation Controls and Functions .......3 6.1 Front Panel ................3 6.2 Rear Panel ................4 6.3 Serial Pinout and Defaults ...........5 6.4 WebGUI Control ..............6 6.4.1 Console Pages ............8 6.4.1.1 IP to Serial Page ..........8 6.4.2 Diagnostics Pages..........

  • Page 7: Introduction

    1. INTRODUCTION The CR-IPS4 is a Control System Centre for users to control a variety of serial devices. This four way version supports RS-232 at each I/O port and 1 port for the additional use of RS-422 or RS-485. Users can connect up to four devices simultaneously and control them via a 3 (or 5)-pin adapter cable to send RS-232/422/485 commands from this unit.

  • Page 8: System Requirements

    4. SYSTEM REQUIREMENTS  Equipment which can be controlled via serial.  An active network connection from a switch or router for control of serial devices. 5. FEATURES  Support one RS-232/422/485 port and three RS-232 ports  Enable control up to four devices simultaneously  Support multiple user control interfaces including WebGUI, Telnet and RS-232/422/485  Simple configuration of macros, triggers settings via the WebGUI...

  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CR-IPS4 LINK ACT POWER TX RX RTS CTS ETHERNET SERVICE CONTROL UPDATE POWER LED: This LED will illuminate to indicate the unit is on and receiving power. TX/RX LEDs: These LEDs will illuminate to indicate the unit status of transmitting and receiving data.

  • Page 10: Rear Panel

    6.2 Rear Panel DC 12V CONTROL DC 12V Port: Plug the 12V DC power adapter into the unit and connect it to an AC wall outlet for power. Note: Optional, not required if the unit is powered via PoE. LAN Port: Connect directly, or through a network switch to your PC/ laptop to control the unit via Telnet/WebGUI.

  • Page 11: Serial Pinout And Defaults

    6.3 Serial Pinout and Defaults Serial Port Default Settings Baud Rate 9600 Data Bits Parity Bits None Stop Bits Flow Control None 5-pin Terminal Block...

  • Page 12: Webgui Control

    6.4 WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorised dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Internet”...
  • Page 13 WebGUI Overview After connecting to the WebGUI’s address in a web browser, the system monitor page will appear. This page contains a set of useful information that can be accessed without the need to log in. Click the login icon ( ) in the upper right corner to log in, enter the appropriate user name and password then click “Continue”...

  • Page 14: Console

    The left side of the browser will display a compressed version of the above menu tabs where all primary functions of the unit are controllable via the built in WebGUI. The individual functions will be introduced in the following sections. 6.4.1 Console Pages The Console page contains a configuration page for managing the unit’s peripheral settings such as serial.
  • Page 15 1) COM 1~4: Enter the command to be sent to the specified serial port and press “Send”. Clicking on “ASC” or ”Hex” button will define the command type between plain ASCII or hex. Clicking on the “Edit” icon ( ) opens up the COM Edit window. The console bypass port number is also displayed on the top right corner.

  • Page 16: Diagnostics

    „ IP Port Setting: To change the IP port, type the new port in the space provided, then click on the “Apply” button. „ ASC End Character Setting: Select the termination character(s) button, if any, to attach to the end of the command when it is sent, then click on the “Apply”...

  • Page 17: System Settings Page

    6.4.3 System Settings Page Click on the “System Settings” page to make changes to various system settings. From this page you can change the WebGUI login timeout, device name, and IP configurations. It also allows the user to reset the unit to factory default and to update the firmware.

  • Page 18: User Management Page

    „ Network Reset: Reset all Ethernet settings back to their factory defaults. 2) Backup & Restore: „ Backup: The current system configuration, including routing and settings, may be saved as a JSON file to a PC. Click the “Backup” button to save the current system configuration to your local PC. „...

  • Page 19: System Information Page

    1) Administrator Account: The username and password for the WebGUI can be changed on this page. After entering the old and new login information, press “Apply” to save the changes. Note: The default user name and password is “admin”. 6.4.5 System Information Page This page provides technical support information, including serial number/version details and contact information for the manufacturer.

  • Page 20: Telnet Control

    6.5 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Start your preferred Telnet/Console client, or use the built in client provided by most modern computer operating systems. After starting the client, connect by using the current IP address of the unit and port 23 (if the communication port number used by the unit has not been changed previously).
  • Page 21 COMMAND Description and Parameters get hw ver  Show the unit’s current hardware version. get command ver  Show the unit’s command version. get mac addr  Show the unit’s MAC address. get model name  Show the unit’s model name. get model type ...
  • Page 22 COMMAND Description and Parameters set feedback broadcast N1  Enable or disable the broadcast of console command feedback. Available values for N1: [Enable] [Disable] get feedback broadcast  Show the current console command feedback broadcast state. set local echo N1  Enable or disable the local echo display of typed characters.
  • Page 23 COMMAND Description and Parameters set uart N1 reset  Reset the settings of the specified serial port to the factory defaults. Available values for N1: [Serial port] set uart N1 baudrate N2  Set the baud rate of the specified serial port. Available values for N1: [Serial port] Available values for N2:...
  • Page 24 COMMAND Description and Parameters get uart N1 stop bit  Show the current number of stop bits of the specified serial port. Available values for N1: [Serial port] set uart N1 data bit N2  Set the data bits for the specified serial port. Available values for N1: [Serial port] Available values for N2:...
  • Page 25 COMMAND Description and Parameters set uart N1 flow control N2  Set the mode of hardware flow control for the specified serial port. Available values for N1: [Serial port] Available values for N2: [Enable] [Disable] get uart N1 flow control  Show the mode of hardware flow control for the specified serial port.
  • Page 26 COMMAND Description and Parameters Available values for N4: [None] [Odd] [Even] Available values for N5: [Stop bits] get uart N1 all  Show the all parameters of the specified serial port. Available values for N1: [Serial port] set console N1 uart mode N2  Set the uart mode of the specified console.
  • Page 27 COMMAND Description and Parameters get console N1 bypass port  Show the bypass port of the specified console. Available values for N1: [Serial port] set console N1 remote ip N2  Set the remote ip of the specified console. Available values for N1: [Serial port] N2 = X.X.X.X [X = 0~255, Remote IP address]...
  • Page 28 COMMAND Description and Parameters set console N1 data mode N2  Set the data mode of the specified console. Available values for N1: [Serial port] Available values for N2: ascii [ASCII] [Hex] get console N1 data mode  Show the data mode of the specified console. Available values for N1: [Serial port] set console N1 ascii end N2 ...
  • Page 29 COMMAND Description and Parameters get ip mode  Show the current IP address assignment mode. get ipconfig  Show the unit’s current IP configuration information get ipaddr  Show the unit’s current IP address. get netmask  Show the unit’s current netmask. get gateway ...
  • Page 30 COMMAND Description and Parameters get static gateway  Show the unit’s current static gateway address. set static ip settings N1 N2 N3  Set the unit’s static IP, netmask, and gateway address. N1 = X.X.X.X [X = 0~255, Static IP address] N2 = X.X.X.X [X = 0~255, Static netmask] N3 = X.X.X.X...
  • Page 31 COMMAND Description and Parameters set webgui port N1  Set the unit’s WebGUI access port. Available values for N1: 1~65535 [http port number] get webgui port  Show the unit’s current WebGUI access port. set telnet port N1  Set the unit’s Telnet access port. N1 = 1~ 65535 [Telnet port number] get telnet port ...
  • Page 32 COMMAND Description and Parameters set webgui login timeout N1  Set the WebGUI inactivity timeout value. Available values for N1: [Disabled] 1~120 [Timeout in minutes] get webgui login timeout  Show the current WebGUI inactivity timeout value. set webgui language N1  Set the unit’s WebGUI language.

  • Page 33: Connection Diagram

    7. CONNECTION DIAGRAM Serial Controlled Device RS-232/422/485 Output Power Supply CR-IPS4 LINK ACT POWER TX RX RTS CTS ETHERNET SERVICE CONTROL UPDATE DC 12V CONTROL LAN Cable RS-232 Output Internet Connected Router RS-232 Controlled Device...

  • Page 34: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Pass-through Ports 1×RS-232/422/485 (5-pin Terminal Block) 3×RS-232 (5-pin Terminal Block) 1×LAN (RJ-45) Service Port 1×USB 2.0 (Type-A) Baud Rate Up to 115200 Power Supply 12V/1.25A DC (US/EU standards, CE/FCC/UL certified) PoE Support 802.3af minimum ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D)

  • Page 35: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Communication IEEE Institute of Electrical and Electronics Engineers Internet Protocol Kilohertz Local Area Network...
  • Page 36 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
