CYP DS-MSC14-4K Operation Manual

1 to 4 multi-screen controller with 4k input support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DS-MSC14-4K
1 to 4 Multi-screen Controller with 4K Input Support
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-MSC14-4K and is the answer not in the manual?

Questions and answers

Related Manuals for CYP DS-MSC14-4K

Summary of Contents for CYP DS-MSC14-4K

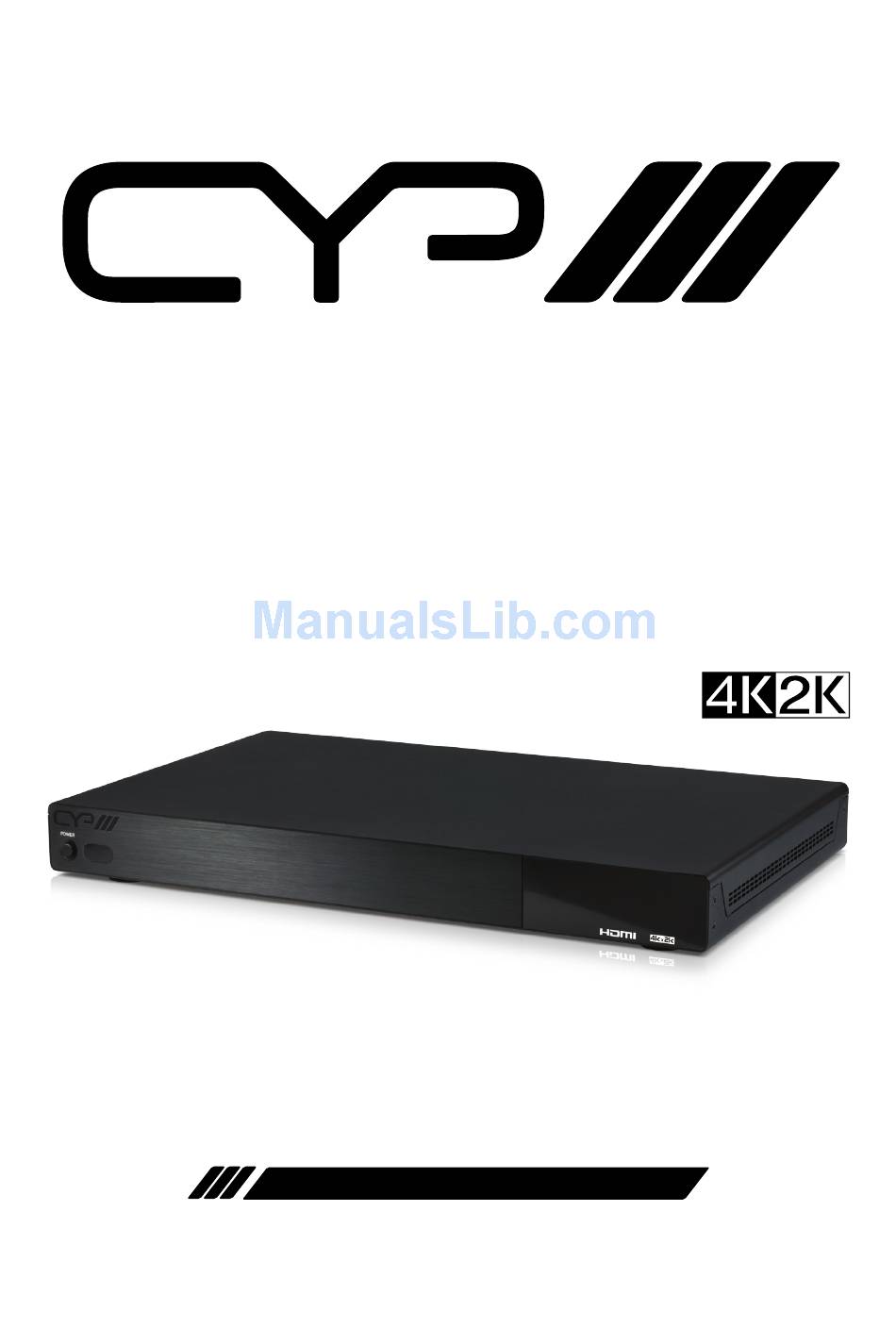

  • Page 1 DS-MSC14-4K 1 to 4 Multi-screen Controller with 4K Input Support OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 8 6.3 RS-232 Protocols ........10 6.4 RS-232 and Telnet Commands ....11 6.5 Telnet Control ..........17 6.6 PC Application Control ......19 7.

  • Page 6: Introduction

    1. INTRODUCTION The DS-MSC14-4K enables a 4K video wall to be created from any third party screens, the HDMI source can be displayed as a single image on each screen or 1 image across all screens. A single unit will create a 2x2 video wall.

  • Page 7: Features

    The DS-MSC14-4K can be controlled via RS-232, Telnet IP control or our piece of control software which can be found on the downloads tab of the website.

  • Page 8: Operation Controls And Functions

    SERVICE: Reserved for manufacturer use only. CONTROL: Connect the unit to an active network for telnet control from a PC/Laptop. Using the “DS-MSC14-4K APP”* allows control of multiple DS-MSC14-4K units (see Section 6.6 for details). RS-232: Connect to a PC/Laptop or RS-232 control system with D-Sub 9pin cables for RS-232 control of the DS-MSC14-4K.
  • Page 9 2x2 Wall Source (4xDisplays) RS-232 Control Device HDMI IN HDMI OUT RS-232 3x3 Wall (9xDisplays) Source HDMI IN HDMI OUT Splitter Control Router HDMI IN HDMI OUT Control HDMI IN HDMI OUT Control Figure 1: Video Wall Configurations...

  • Page 10: Rs-232 Protocols

    6.3 RS-232 Protocols REMOTE DEVICE (PC) HDMI SPLITTER Definition Definition ► ◄ Baud Rate: 115200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 11: Rs-232 And Telnet Commands

    6.4 RS-232 and Telnet Commands COMMAND DESCRIPTION PARAMETER HELP(?) Show Command list NONE HELP(?) N Show Command description N=Command name RRES Request Current Output NONE Resolution SRES N1 Set Output Resolution to N1 N1=0(640x480@60), 1(480p60), 2(576p50), 3(800x600@60), 4(848x480@60), 5(1024x768@60), 6(720p50), 7(720p60), 8(1280x768@60), 9(1280x800@60), 10(1280x960@60),...
  • Page 12 COMMAND DESCRIPTION PARAMETER RINS Get Input Resolution 0(VGA60), 1(VGA72), 2(VGA75), 3(VGA85), 4(WXGA60), 5(WXGA75), 6(XGA60), 7(XGA70), 8(XGA75), 9(XGA85), 10(SXGA60), 11(SXGA75), 12(SVGA56), 13(SVGA60), 14(SVGA72), 15(SVGA75), 16(SVGA85), 17(DTV_480P60), 18(DTV_576P50), 19(DTV_480I60), 20(DTV_576I50), 21(HDTV_720P50), 22(HDTV_720P60), 23(HDTV_1080I50), 24(HDTV_1080I60), 25(HDTV_1080P24), 26(HDTV_1080P50), 27(HDTV_1080P60), 28(V848_480_60), 29(V852_480_60), 30(V854_480_60), 31(V1024_852_60), 32(V1024_1024_60), 33(V1280_800_60), 34(V1280_960_60), 35(V1360_768_60),...
  • Page 13 COMMAND DESCRIPTION PARAMETER 46(V2048_1080_60), 47(V2048_1152_1), 48(V2048_1152_2), 49(V2048_1152_3), 50(V3840_2160_24), 51(V3840_2160_25), 52(V3840_2160_30), 53(V4096_2160_24), 54(K_ NO_SIGNAL), 55(K_NO_ SUPPORT) ROSDD Request Current OSD Display NONE State SOSDD N1 Set OSD Display Enable/ N1=0(OFF), 1(ON) Disable ROSDH Request Current OSD NONE Horizontal Position SOSDH N1 N1=0~20 (5) Set OSD Horizontal Position to ROSDV...
  • Page 14 COMMAND DESCRIPTION PARAMETER RCON N1 Request Chanel N1 Contrast N1=1~4 Value SCON N1 N2 Set Channel N1 Contrast Value N1= 1~4, N2=0~100(50) to N2 RSAT Request Current Saturation NONE Value RSAT N1 Request Channel N1 Current N1=1~4 Saturation Value SSAT N1 N2 Set Channel N1 Saturation N1= 1~4, N2=0~100(50) Value to N2...
  • Page 15 COMMAND DESCRIPTION PARAMETER SETIME N1 Set Ethernet Timeout N1=0(OFF), 1(10 Minutes), 2(20 Minutes), 3(30 Minutes), 4(40 Minutes), 5(50 Minutes), 6(60 Minutes) RLINK Request Ethernet Address NONE RMUTE Request Current Mute NONE SMUTE N1 Set Mute Audio N1=0(Unmute), 1(Mute) RPOW Request Current Power State NONE SPOW N1 Set the Unit Power On/Off...
  • Page 16 COMMAND DESCRIPTION PARAMETER SHOT N1 Fast Setting TV Wall Format N1=0(1x1), 1(2x2), 2(3x3), from Hotkey N1 3(4x4), 4(5x5), 5(6x6), 6(2x3), 7(3x2), 8(3x4), 9(4x2), 10(4x3), 11(4x5), 12(1x2), 13(2x1), 14(1x3), 15(3x1), 16(1x4), 17(4x1), 18(2x4), 19(3x5), 20(5x4), 21(5x3), 22(6x2), 23(6x3) SFAVE N1 Save Current TV Wall Settings N1=1~5 to N1 RFAVE N1...

  • Page 17: Telnet Control

    6.5 Telnet Control Before attempting to use the Telnet control, please ensure that both the HDMI Video Wall unit (via the ‘CONTROL’ port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the ‘Start’ menu and type “cmd”...
  • Page 18 This will bring us into the unit which we wish to control. Type 'HELP' to list the available commands. Note: Commands will be not executed unless followed by a carriage return. Commands are not case sensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.

  • Page 19: Pc Application Control

    6.6 PC Application Control NOTE: The PC Application Control software can be downloaded from the 'Downloads' section on the product page on the CYP website (http://www. cypeurope.com). Double click on the downloaded file to install the software. Once the application has installed successfully, click and open the application.
  • Page 20 6.6.1 System Settings Power: Click on “Power” to power ON/OFF the currently selected unit. To control all connected units, click on “ALL IP” then click Power. From power ON to power OFF the application will disconnect the link, to power ON again please re-connect. Factory Reset: Click on “Factory Reset”...
  • Page 21 6.6.2 Connect Interface Connect: Click “Connect” to link the unit. Disconnect: Click “Disconnect” to terminate the link. MAC: Click on the “MAC” drop-down menu to display the available TV Wall units and select the required unit/MAC for connection. ID No.: When more than one TV Wall unit is in use, it is important that ID No.
  • Page 22 6.6.4 TV Wall Setup (1) Fast TV Wall Setting: Click on hot key to pre-set the TV Wall setup.
  • Page 23 6.6.5 TV Wall Setup (2) Manual Setup: Manually setup the TV wall configuration in Rows and Columns (from 1~15) and click on Send to confirm the setting. Bezel Correction Horizon & Vertical: Set up the Bezel Correction settings on the selected MAC/ID number. The correction will be made to all outputs of the selected unit at once.
  • Page 24 6.6.6 TV Wall Setup (3) Save TV Wall Settings: Save current settings to a Favorite. Up to 5 preset Favourite settings can be stored. Recall TV Wall Settings: Recall preset stored TV Wall settings.
  • Page 25 6.6.7 I/O Setup Output Resolution and OSD Menu Adjustment: All settings under I/O Setup can be done with single TV Wall unit or by clicking on “ALL IP” units with a single click on. Parameters and default values are as stated in RS-232 description parameters.
  • Page 26 6.6.8 Image Adjust Brightness, Contrast, Saturation and Hue Adjustment: All settings under Image Adjust can be done with single TV Wall unit or by clicking on “ALL IP” units with a single click on. Parameters and default values are as stated in RS-232 description parameters. Picture Reset: Picture Reset button is to reset all settings of Image Adjust back to factory default value.

  • Page 27: Connection Diagram

    7. CONNECTION DIAGRAM DVD/Blu-ray Player HDMI Input Router Power HDMI IN HDMI OUT SERVICE CONTROL RS-232 DC 12V Supply HDMI Outputs RS-232 Equipped PC/Laptop 2×2 TVs/Displays (Total 4 Screens)
  • Page 28 DVD/Blu-ray Player HDMI Input Router HDMI Splitter DC 5V OUTPUT PC/Laptop HDMI Input Connections HDMI IN HDMI OUT SERVICE CONTROL RS-232 DC 12V Power Supply D C B A HDMI Outputs HDMI Input HDMI IN HDMI OUT SERVICE CONTROL RS-232 DC 12V Power Supply...

  • Page 29: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/9 Gbps Input Ports 1×HDMI (Female type), 1×Control (RJ45), 1×RS-232 (D-sub 9-pin), 1×USB (Service only) Output Ports 4×HDMI (Female type) IR Frequency 30~50kHz Baud Rate 115200bps ESD Protection Human body model: ± 8 kV (air-gap discharge) ±...

  • Page 30: Supported Resolutions

    8.2 Supported Resolutions INPUT RESOLUTION OUTPUT RESOLUTION 640×480@60/72/75/85 640×480 1280×768@60/75 480p@60 (720×480) 1024×768@60/70/75/85 576p@50 (720×576) 1280×1024@60/75 800×600 800×600@56/60/72/75/85 848×480 480p@60 1024×768 576p@50 720p@50 (1280×720) 480i@60 720p@60 (1280×720) 576i@50 1280×768 720p@50/60 1280×800 1080i@50/60 1280×960 1080p@24/50/60 1280×1024 848×480@60 1360×768 852×480@60 1366×768 854×480@60 1400×1050 1024×852@60 1440×900...

  • Page 31: Output Resolution Limitations

    8.3 Output Resolution Limitations 8.3.1 Input Resolution is 3840×2160 VIDEO WALL 10X10 15X15 640×480            480p@60 (720×480)            576p@50 (720×576) ...
  • Page 32 8.3.2 Input Resolution is 4096×2160 VIDEO WALL 10X10 15X15 640×480            480p@60 (720×480)            576p@50 (720×576)     ...
  • Page 33 8.3.3 Input Resolution is 2048×1080/2048×1152 VIDEO WALL 10X10 15X15 640×480            480p@60 (720×480)            576p@50 (720×576)     ...

  • Page 34: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television On-Screen Display Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array...
  • Page 38 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
