CYP CDPS-CS7-S Operation Manual

Ip master controller (sdvoe)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

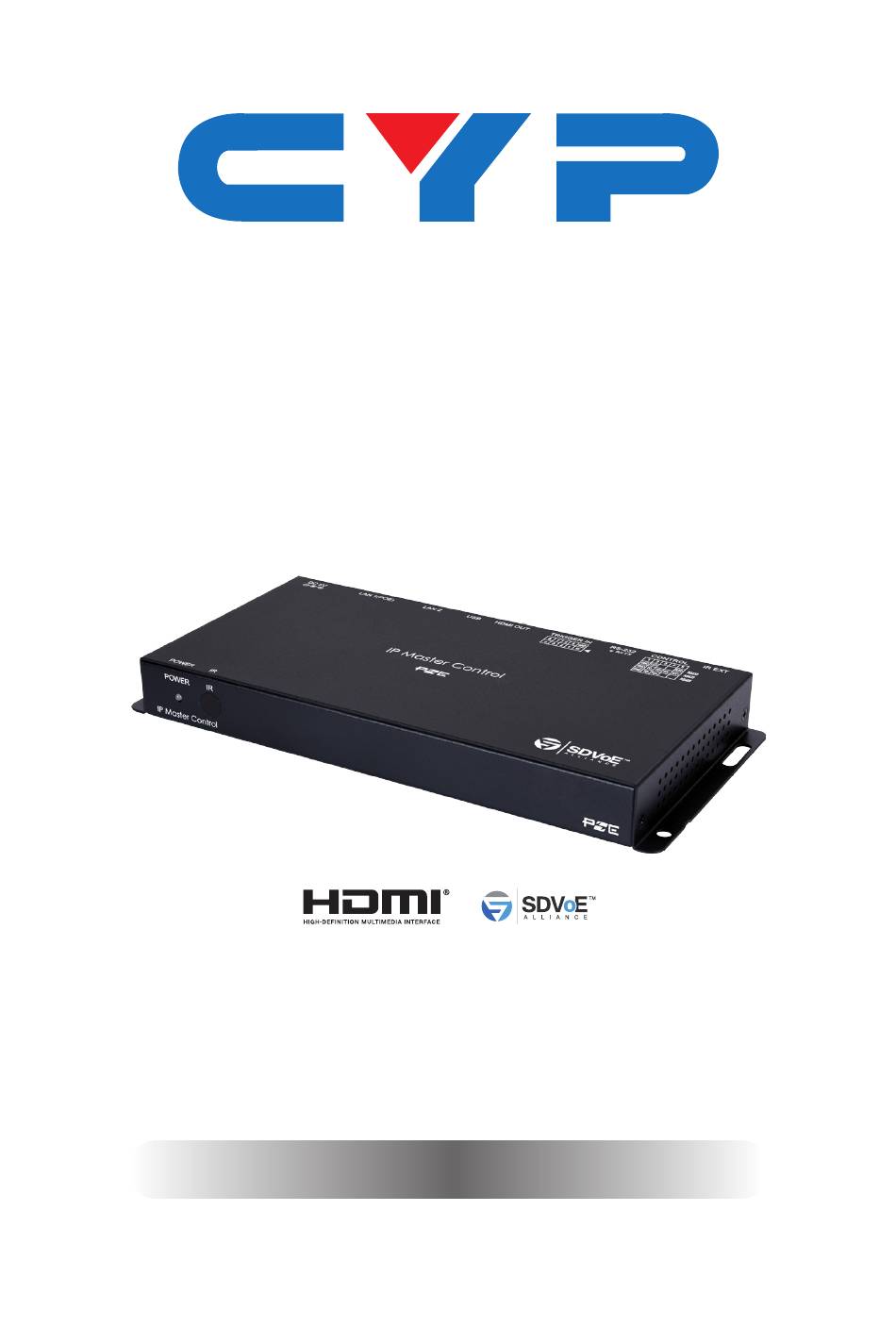

CDPS-CS7-S
IP Master Controller (SDVoE)
(Phase 1)
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-CS7-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CDPS-CS7-S

Summary of Contents for CYP CDPS-CS7-S

  • Page 1 CDPS-CS7-S IP Master Controller (SDVoE) (Phase 1) Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........3 6.3 Remote Control ......... 4 6.4 IR Cable Pinout .......... 5 6.5 RS-232 Pinout and Defaults ......

  • Page 6: Introduction

    1. INTRODUCTION This IP Master Controller is a powerful and flexible solution for controlling multiple SDVoE (Software Defined Video over Ethernet) based extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections (including video, audio, and a variety of control interface types) using the WebGUI.

  • Page 7: Package Contents

    3. PACKAGE CONTENTS • 1× IP Master Controller (SDVoE) • 1× 5V/2.5A DC Power Adapter • 1× Terminal Block (3-pin) • 3× Terminal Block (5-pin) • 1× IR Extender Cable • 1× Remote Control (CR-183) • 1× Shockproof Feet (Set of 4) •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER IP Master Control POWER LED: This LED will illuminate to indicate the unit is on and receiving power. IR Window: Accepts IR signals from the included IR remote for control of this unit only. 6.2 Rear Panel TX RX DC 5V...

  • Page 9: Remote Control

    LAN 2 Port: Connect directly, or through a network switch, to your PC/ laptop to control the unit via WebGUI/Telnet. LAN 1(POE) Port: This port is used to connect to the SDVoE devices to be controlled. Connect to the SDVoE units’ private network through their dedicated network switch, to enable detection and control over those units.

  • Page 10: Ir Cable Pinout

    6.4 IR Cable Pinout IR Extender Cable Infrared Power Ground 6.5 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None Unit Control Serial Output 3-pin Terminal Block 5-pin Terminal Block...

  • Page 11: Webgui Control

    6.6 WebGUI Control • Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
  • Page 12 • WebGUI Overview After connecting to the WebGUI’s address in a web browser, the WebGUI will load and display the System tab. Click “Login" to open the authentication window. Please enter the appropriate user name and password then click “Enter” to log in. Note: The default user name and password is “admin”.

  • Page 13: Monitor & Control Tab

    Clicking the “Logout” button within the “System” tab will automatically log the currently connected user out of the WebGUI and return to login page. Note: When not logged in, only the “Monitor & Control” and “System” tabs are available. 6.6.1 Monitor & Control Tab This tab provides easy to use drag-and-drop control over all basic routing functionality of the transmitters and receivers that have been detected within the local network.
  • Page 14 Note: If a transmitter’s streams require more bandwidth than is available, a warning icon ( ) will be displayed instead of the normal source icon. Video output from a source displaying this icon may become visually unstable. It is recommended to either lower the resolution or framerate of the stream.
  • Page 15 2) HDMI Audio Routing: Provides drag-and-drop control over the independent HDMI audio routing of all detected transmitters and receivers. Note: Bitstream audio is only supported when the receiver’s HDMI audio device setting is set to “HDMI Audio (Follow Video in Genlock Mode)”.
  • Page 16 Stop Stream: To stop the independent HDMI audio stream from a single source, drag the source down to the “Stop” button at the bottom of the window, then release the mouse button. To stop ALL independent HDMI audio streams, drag the “All” button down to the “Stop”...
  • Page 17 3) Analog Audio Routing: Provides drag-and-drop control over the routing of analog audio input streams between all detected transmitters and receivers. ■ Analog Audio Transmitter: This section provides drag-and-drop buttons for all analog input sources detected by the system as well as a button target to stop one or all analog audio streams from being transmitted.
  • Page 18 ALL video outputs, drag the “All” button down to the “Stop” button. Note: If the selected audio source for an analog output has been set to “HDMI Audio (Stereo Downmix)” the audio output can only be stopped from the HDMI Audio page. 4) USB Pairing: Provides drag-and-drop control over the pairing of USB hosts (PC, laptop, etc.) and USB devices (keyboard, mouse, webcam, etc.) between the ports detected on all transmitters and...
  • Page 19 Stop Host: To stop communication from a USB host, drag the USB host down to the “Stop” button at the bottom of the window, then release the mouse button. ■ USB Device: This section provides drag-and-drop buttons for all detected USB device endpoints as well as a button target to stop communication from a device.
  • Page 20 bottom of the window, then release the mouse button. To stop the transmission of ALL IR signals, drag the “All” button down to the “Stop” button. ■ IR Output: This section provides drag-and-drop buttons for all IR output ports detected by the system. Each IR output has an automatically assigned IR stream IP address listed below the output’s name.
  • Page 21 ■ RS-232 Sender: This section provides drag-and-drop buttons for all RS-232 senders detected by the system as well as a button target to stop one or all RS-232 streams from being transmitted. RS-232 Sender Global Broadcast: To broadcast an RS-232 sender to all available RS-232 receivers, click and drag the RS-232 sender’s button on the left to the “All”...

  • Page 22: System Tab

    6.6.2 System Tab This tab provides access to system configuration options including IP configuration for both LAN ports, login and user management, and firmware update functionality. 1) LAN 1 & LAN 2: The IP mode for each LAN port (DHCP or Static IP), IP address, netmask, and gateway can be set here.
  • Page 23 tables. To completely remove old Tx and Rx units from the system, use the “Remove” option on the Transmitter and Receiver pages. ■ S/N: Displays the unit’s serial number. 3) Firmware Upgrade: Provides a method to remotely update the firmware of this unit as well as to update the firmware of detected transmitters and receivers.

  • Page 24: Settings Tab

    6.6.3 Settings Tab This tab's functionality is not currently available and will be added in the “Phase 2” update. 6.6.4 Transmitter Tab This tab shows all transmitters that have been detected by the unit. Details about each transmitter’s name, IP address, and video content, as well as options to configure the network, RS-232, USB, and general device settings are also provided.
  • Page 25 ■ Icon: Displays the icon used to represent the unit. Note: If a transmitter’s streams require more bandwidth than is available, a warning icon ( ) will be displayed instead of the normal source icon. Video output from a source displaying this icon may become visually unstable.
  • Page 26 2) Device Settings: Clicking this button will display a pop-up window providing control over a number of important device settings and allow for those settings to be changed. To activate any changes made, please click on the “Save” button to close the window. ■...

  • Page 27: Receiver Tab

    use Bypass Mode from the scaling tab as most displays cannot properly handle the resulting output. ■ MultiView Divide FPS by two: Enable or disable the Divide FPS (Frames Per Second) by Two feature on the secondary video stream generated by this unit which is used in MultiViewer mode.
  • Page 28 ■ Hello: Clicking on this switch will cause the selected unit to immediately begin flashing the power LED on the front of the unit to make it easy to find. Clicking it a second time returns the LED to its normal behavior. Note: The “Hello”...
  • Page 29 2) Device Settings: Clicking this button will display a pop-up window providing control over a number of important device settings and allow for those settings to be changed. To activate any changes made, please click on the “Save” button to close the window. ■...

  • Page 30: Scaling Tab

    Note: This mode only supports HDMI sources with LPCM audio. ■ Analog Audio Source: Select the audio source type to output from the analog audio output of this unit. Available options are: – HDMI Audio (Stereo Downmix): Output the HDMI audio routed to this unit after downmixing it to stereo.

  • Page 31: Video Wall Tab

    6.6.7 Video Wall Tab This tab provides a way to configure or modify video walls using multiple receivers in a group. All aspects of the video wall can be configured here including dimensions (up to 8x8 displays), bezel compensation, output resolution, and source. 1) Video Wall Setup: The upper left section of this tab contains a list of all currently defined video walls in the system.
  • Page 32 ■ Wall Size: Select the size of the video wall, measured in number of monitors tall by number of monitors wide. The maximum number of displays in a single video wall is 64 (8x8). Note: The source will be stretched to fill the entire video wall. Selecting a non-square configuration of monitors may result in the image being distorted.

  • Page 33: Multiview Tab

    6.6.8 MultiView Tab This tab provides a way to configure or modify the multiviewer functionality of each receiver. All aspects of a multiviewer output can be configured here including window number and arrangement, output resolution, and window sources. Note: Using a source within a multiviewer output will increase the bandwidth requirements of the associated transmitter.
  • Page 34 ■ Display Resolution: Select the output resolution for the multiview receiver. ■ Multiview Layout Selection: This a scrollable list of pre made multiviewer layout designs. Click on the design that best matches your layout and source count requirements to place it in the layout window to the right.

  • Page 35: Telnet Control

    6.7 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. To Access the Command Line Interface (CLI) Click Start, type “cmd” in the search field, and Windows 7 press Enter.

  • Page 36: Rs-232 And Telnet Commands

    6.8 RS-232 and Telnet Commands COMMAND Description and Parameters help Show the full command list. ? Show the full command list. help N1 Show help details about command N1. N1 = {Command name} set factory default Reset the unit to the factory defaults. get model name...
  • Page 37 COMMAND Description and Parameters set lan N1 ip mode N2 Set the IP address assignment mode of the specified LAN port. Available values for N1: [LAN port 1] [LAN port 2] Available values for N2: Static [Static IP mode] DHCP [DHCP mode] get lan N1 ip mode...
  • Page 38 COMMAND Description and Parameters get lan N1 netmask Show the specified LAN port’s current netmask. Available values for N1: [LAN port 1] [LAN port 2] get lan N1 gateway Show the specified LAN port’s current gateway address. Available values for N1: [LAN port 1] [LAN port 2] set lan N1 static ipaddr N2...
  • Page 39 COMMAND Description and Parameters get lan N1 static netmask Show the specified LAN port’s current static netmask. Available values for N1: [LAN port 1] [LAN port 2] set lan N1 static gateway N2 Set the specified LAN port’s static gateway address. Available values for N1: [LAN port 1] [LAN port 2]...
  • Page 40 COMMAND Description and Parameters set uart N1 baudrate N2 Set the baud rate of the specified serial port. Available values for N1: [3-pin serial port] [5-pin serial port] Available values for N2: 2400 [2400 baud] 4800 [4800 baud] 9600 [9600 baud] 19200 [19200 baud] 38400...
  • Page 41 COMMAND Description and Parameters get uart N1 stop bit Show the current number of stop bits for the specified serial port. Available values for N1: [3-pin serial port] [5-pin serial port] set uart N1 data bit N2 Set the data bits used by the specified serial port. Available values for N1: [3-pin serial port] [5-pin serial port]...
  • Page 42 COMMAND Description and Parameters get uart N1 parity Show the current parity setting of the specified serial port. Available values for N1: [3-pin serial port] [5-pin serial port] set uart 2 mode N1 Set the operational mode of the Control Output (5-pin) serial port.

  • Page 43: Connection Diagram

    7. CONNECTION DIAGRAM Serial/Ethernet Port Equipped PC Serial Input Network Switch for Local Network Power Supply TX RX DC 5V IR EXT CONTROL RS-232 TRIGGER IN HDMI OUT LAN 2 LAN 1(POE) Fiber Network Switch for VoIP Network VoIP Receiver TX RX DC 12V HDMI OUT...

  • Page 44: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Output Ports 1×RS-232 (5-pin Terminal Block) Control Ports 1×RS-232 (3-pin Terminal Block) 2×LAN (RJ-45) Reserved Ports 8×Trigger (10-pin Terminal Block) 1×HDMI (Type-A) 1×USB 2.0 (Type A) 1×IR Extender (3.5mm) IR Frequency 30 – 50kHz (30 – 60kHz under ideal conditions) Baud Rate 19200 Power Supply...

  • Page 45: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet Analog-to-Digital Converter ASCII American Standard Code for Information Interchange Audio/Video Receiver or Recorder Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6a Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Digital-to-Analog Converter DHCP...
  • Page 46 ACRONYM COMPLETE TERM On-Screen Display Powered Device SDVoE Software Defined Video over Ethernet Transmission Control Protocol Ultra-High-Definition (10.2Gbps) UHD+ Ultra-High-Definition Plus (18Gbps) UHDTV Ultra-High-Definition Television Universal Serial Bus VLAN Virtual LAN VoIP Video over IP WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array...
