CYP CR-IPS1 Operation Manual

Ip to serial controller with a single i/o port
Hide thumbs

Advertisement

Quick Links

Download this manual

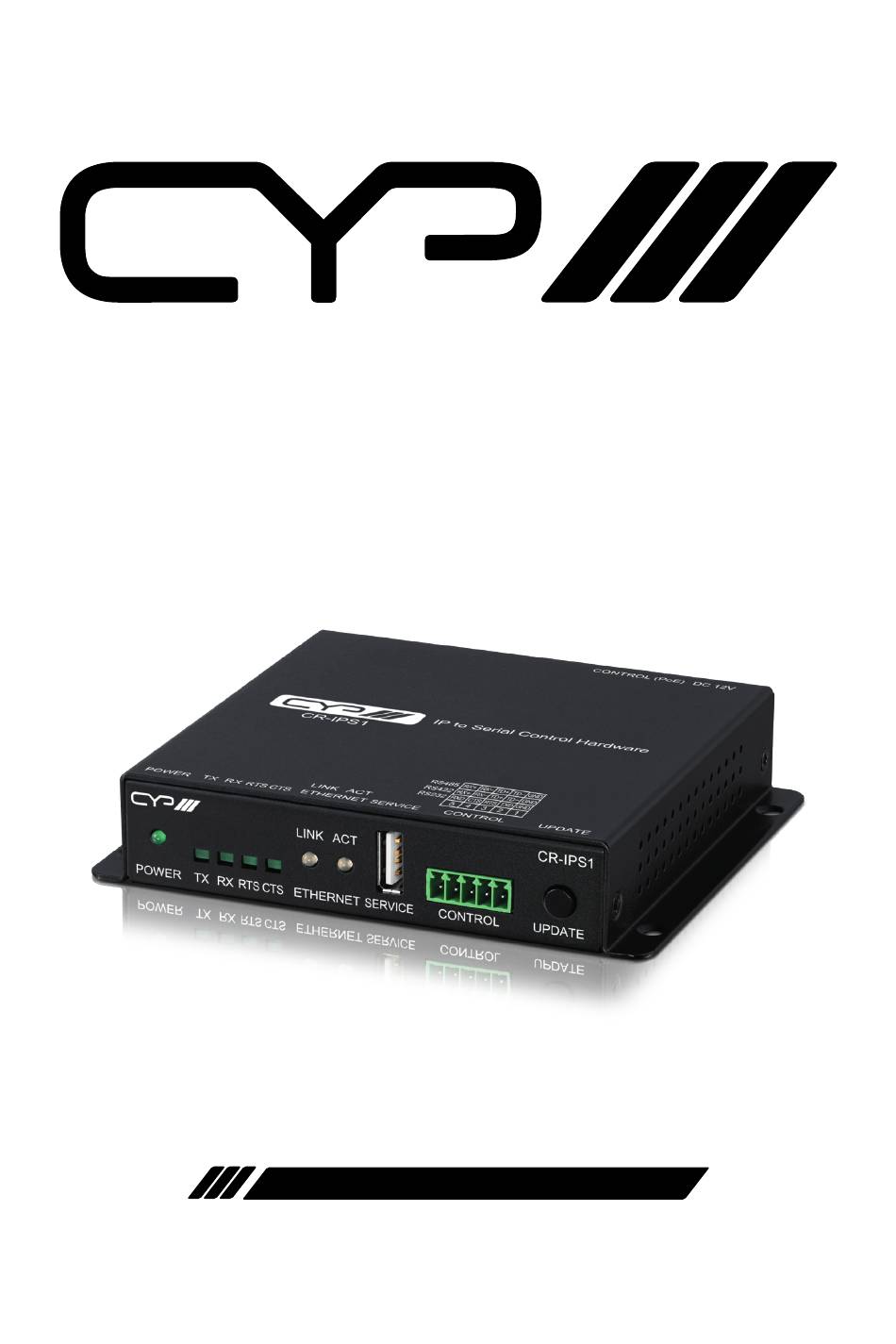

CR-IPS1
IP to Serial Controller with a Single I/O Port
OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CR-IPS1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CR-IPS1

Summary of Contents for CYP CR-IPS1

  • Page 1 CR-IPS1 IP to Serial Controller with a Single I/O Port OPERATION MANUAL...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Version History

    VERSION HISTORY REV. DATE SUMMARY OF CHANGE Ver 1.00 2024/12/10 Initial Release...

  • Page 6: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications ............1 3. Package Contents ..........1 4. System Requirements ...........2 5. Features ..............2 6. Operation Controls and Functions .......3 6.1 Front Panel ................3 6.2 Rear Panel ................4 6.3 Serial Pinout and Defaults ...........4 6.4 WebGUI Control ..............5 6.4.1 Console Pages ............7 6.4.1.1 IP to Serial Page ..........7 6.4.2 Diagnostics Pages..........9...

  • Page 7: Introduction

    1. INTRODUCTION The CR-IPS1 Control System Centre is for users to control a single Serial device of any variety. It supports one RS-232/422/485 port. Users can connect device and control it via a 3 (or 5)-pin adapter cable to send RS- 232/422/485 commands from this unit.

  • Page 8: System Requirements

    4. SYSTEM REQUIREMENTS  Equipment which can be controlled via serial.  An active network connection from a switch or router for control of serial device 5. FEATURES  Supports one RS-232/422/485 port  Support multiple user control interfaces including WebGUI, Telnet and RS-232/422/485  Simple configuration of macros, triggers settings via the WebGUI  Support IEEE 802.1x RTS/CTS protocol...

  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CR-IPS1 LINK ACT POWER TX RX RTS CTS ETHERNET SERVICE CONTROL UPDATE POWER LED: This LED will illuminate to indicate the unit is on and receiving power. TX/RX LEDs: These LEDs will illuminate to indicate the unit status of transmitting and receiving data.

  • Page 10: Rear Panel

    6.2 Rear Panel DC 12V DC 12V Port: Plug the 12V DC power adapter into the unit and connect it to an AC wall outlet for power. Note: Optional, not required if the unit is powered via PoE. LAN Port: Connect directly, or through a network switch to your PC/ laptop to control the unit via Telnet/WebGUI.

  • Page 11: Webgui Control

    6.4 WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorised dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Internet”...
  • Page 12 WebGUI Overview After connecting to the WebGUI’s address in a web browser, the system monitor page will appear. This page contains a set of useful information that can be accessed without the need to log in. Click the login icon ( ) in the upper right corner to log in, enter the appropriate user name and password then click “Continue”...

  • Page 13: Console

    The left side of the browser will display a compressed version of the above menu tabs where all primary functions of the unit are controllable via the built in WebGUI. The individual functions will be introduced in the following sections. 6.4.1 Console Pages The Console page contains a configuration page for managing the unit’s peripheral settings such as serial.
  • Page 14 1) COM: Enter the command to be sent to the specified serial port and press “Send”. Clicking on “ASC” or ”Hex” button will define the command type between plain ASCII or hex. Clicking on the “Edit” icon ( ) opens up the COM Edit window. The console bypass port number is also displayed on the top right corner.

  • Page 15: Diagnostics

    „ IP Port Setting: To change the IP port, type the new port in the space provided, then click on the “Apply” button. „ ASC End Character Setting: Select the termination character(s) button, if any, to attach to the end of the command when it is sent, then click on the “Apply”...

  • Page 16: System Settings Page

    6.4.3 System Settings Page Click on the “System Settings” page to make changes to various system settings. From this page you can change the WebGUI login timeout, device name, and IP configurations. It also allows the user to reset the unit to factory default and to update the firmware.
  • Page 17 „ Network Reset: Reset all Ethernet settings back to their factory defaults. 2) Backup & Restore: „ Backup: The current system configuration, including routing and settings, may be saved as a JSON file to a PC. Click the “Backup” button to save the current system configuration to your local PC. „...

  • Page 18: User Management Page

    6.4.4 User Management Page This page provides access to user management controls for the unit, such as changing the admin login password. 1) Administrator Account: The username and password for the WebGUI can be changed on this page. After entering the old and new login information, press “Apply”...

  • Page 19: System Information Page

    6.4.5 System Information Page This page provides technical support information, including serial number/version details and contact information for the manufacturer. 1) Information: Displays the unit’s firmware and command version, as well as the unit’s serial number. 2) System log: A comprehensive system log file to help diagnose configuration issues or other problems can be generated, if requested by technical support.

  • Page 20: Telnet Control

    6.5 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Start your preferred Telnet/Console client, or use the built in client provided by most modern computer operating systems. After starting the client, connect by using the current IP address of the unit and port 23 (if the communication port number used by the unit has not been changed previously).
  • Page 21 COMMAND Description and Parameters get fw ver  Show the unit’s current firmware version. get hw ver  Show the unit’s current hardware version. get command ver  Show the unit’s command version. get mac addr  Show the unit’s MAC address. get model name ...
  • Page 22 COMMAND Description and Parameters get update filename  Show the unit’s update firmware filename. set nickname N1  Set the name of the unit’s nickname. Available values for N1 : N1 = {ASCII string} [Nickname] get nickname  Show the name of the unit’s nickname. set feedback broadcast N1 ...
  • Page 23 COMMAND Description and Parameters get device temperature  Show the unit’s current temperature. set system reboot  Reboot the unit. set factory default  Reset the unit to its factory defaults. set factory ipconfig default  Reset the unit’s network settings to the factory defaults. set uart 1 reset ...
  • Page 24 COMMAND Description and Parameters set uart 1 stop bit N1  Set the number of stop bits for the serial port. Available values for N1 : [Stop bits] get uart 1 stop bit  Show the current number of stop bits of the serial port. set uart 1 data bit N1 ...
  • Page 25 COMMAND Description and Parameters get uart 1 flow control  Show the mode of hardware flow control for the serial port. set uart 1 all N1 N2 N3 N4  Set the all parameters of the serial port. Available values for N1 : 2400 [2400 baud] 4800...
  • Page 26 COMMAND Description and Parameters set console 1 uart mode N1  Set the uart mode of the console. Available values for N1 : rs-232 [RS-232] rs-422 [RS-422] rs-485 [RS-485] get console 1 uart mode  Show the uart mode of the console. set console 1 bypass port N1 ...
  • Page 27 COMMAND Description and Parameters get console 1 bypass mode  Show the bypass mode of the console. set console 1 data mode N1  Set the data mode of the console. Available values for N1 : ascii [ASCII] [Hex] get console 1 data mode  Show the data mode of the console.
  • Page 28 COMMAND Description and Parameters get ipaddr  Show the unit’s current IP address. get netmask  Show the unit’s current netmask. get gateway  Show the unit’s current gateway address. set static ipaddr N1  Set the unit’s static IP address. N1 = X.X.X.X [X = 0~255, Static IP address] get static ipaddr ...
  • Page 29 COMMAND Description and Parameters set static ip settings N1 N2 N3  Set the unit’s static IP, netmask, and gateway address. N1 = X.X.X.X [X = 0~255, Static IP address] N2 = X.X.X.X [X = 0~255, Static netmask] N3 = X.X.X.X [X = 0~255, Static gateway address] get static ip settings ...
  • Page 30 COMMAND Description and Parameters get webgui port  Show the unit’s current WebGUI access port. set telnet port N1  Set the unit’s Telnet access port. N1 = 1~ 65535 [Telnet port number] get telnet port  Show the unit’s current Telnet access port. set hostname N1 ...
  • Page 31 COMMAND Description and Parameters get webgui login timeout  Show the current WebGUI inactivity timeout value. set webgui language N1  Set the unit’s WebGUI language. Available values for N1 : [English] zh-tw [Traditional Chinese] get webgui language  Show the unit’s current WebGUI language. Note: Commands will not be executed unless followed by a carriage return.

  • Page 32: Connection Diagram

    7. CONNECTION DIAGRAM Serial Controlled Device RS-232/422/485 Output Power Supply CR-IPS1 LINK ACT POWER TX RX RTS CTS ETHERNET SERVICE CONTROL UPDATE DC 12V LAN Cable Internet Connected Router...

  • Page 33: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Pass-through Ports 1×RS-232/422/485 (5-pin Terminal Block) 1×LAN (RJ-45) Service Port 1×USB 2.0 (Type-A) Baud Rate Up to 115200 Power Supply 12V/1.25A DC (US/EU standards, CE/FCC/UL certified) PoE Support 802.3af minimum ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 128mm×25mm×108mm [Case Only]...

  • Page 34: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Communication IEEE Institute of Electrical and Electronics Engineers Internet Protocol Kilohertz Local Area Network...
  • Page 36 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
