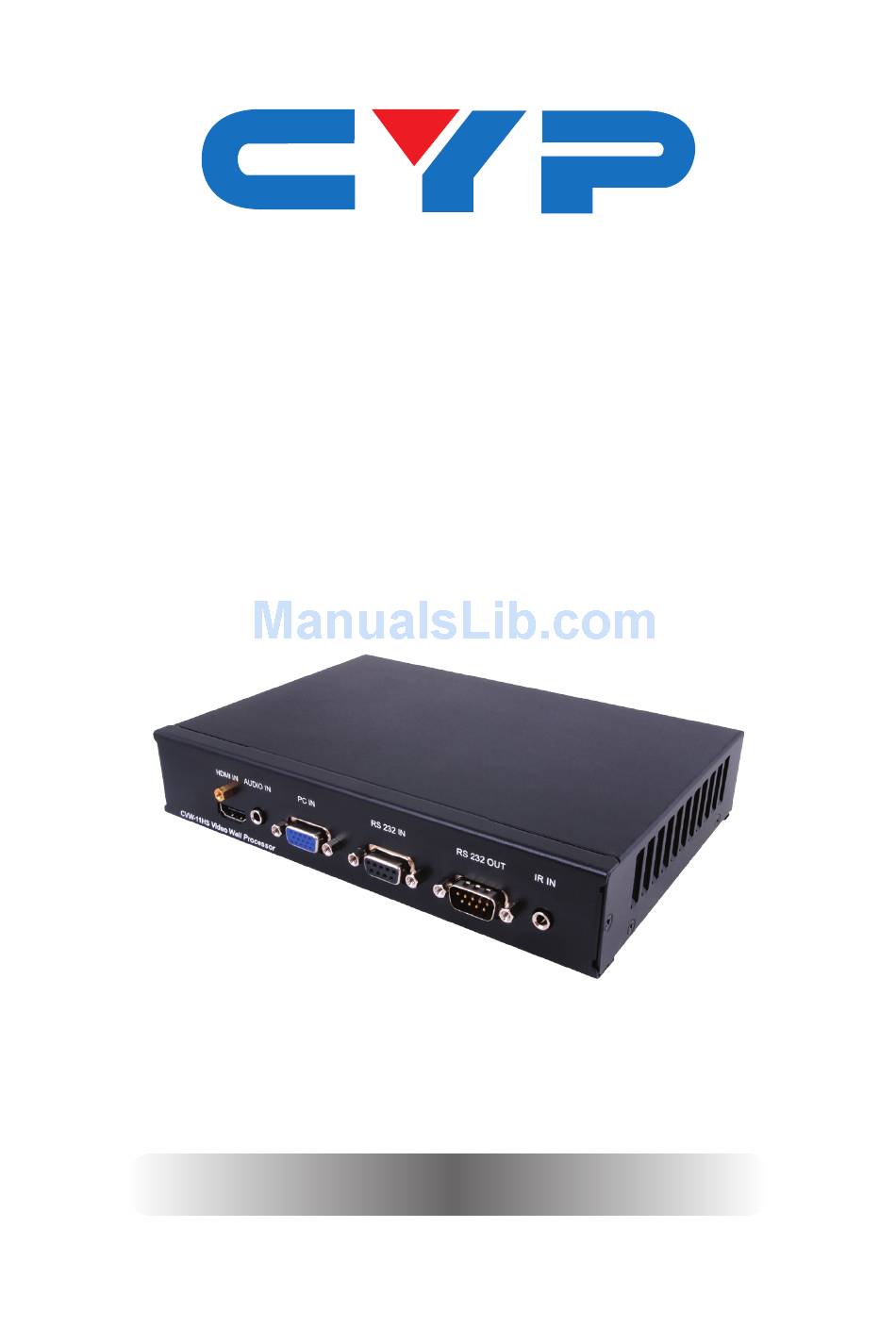

- Page 1 CVW-11HS Multi-Screen Video Wall Control System Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
- Page 5 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 6.4 Remote Control ........7 6.5 RS-232 Pin Definition ......8 6.6 RS-232 Commands ......8...
-
Page 6: Introduction
1. INTRODUCTION The Multi-Screen Video Wall Control System is ideal for advertising, entertainment and information display. The device allows users to display HDMI or PC sources to multiple LCD monitors, while thanks to the built-in RS-232 control you are able to fully customize the LCD panels giving you complete control over 2×2, 3×3, 4×4 and 5×5 video walls. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI or PC splitter/matrix with source signal and connection cables, display device such as TVs/monitors with connection cables. • RS-232 level-shift board (optional) 5. FEATURES • Supports 6 or more video wall combinations of H×V: 2×2 (4 monitors), 3×2 (6 monitors), 3×3 (9 monitors), 4×3 (12 monitors),4×4 (16 monitors) and 5×5 (25 monitors) •... -
Page 8: Operation Controls And Functions
HDMI IN AUDIO IN PC IN RS 232 IN RS 232 OUT IR IN CVW-11HS Video Wall Processor HDMI IN Connect to an HDMI splitter or matrix which is distributing the source signal. AUDIO IN Connect to the audio source with a 3.5 mm mini-jack cable. -
Page 9: Rear Panel
6.2 Rear Panel HDMI OUT DC 5V AUDIO OUT DC 5V Connect the supplied power adaptor to an AC wall outlet. When the power is plugged in the device will automatically power ON. L/R AUDIO OUT Connect this de-embedded audio signal with RCA cables to the active speaker or to the display’s audio input. -
Page 10: Osd Menu
6.3 OSD Menu STANDARD ON/OFF R OFFSET 0~255 (118) G OFFSET 0~255 (116) B OFFSET 0~255 (118) PICTURE R GAIN 0~255 (098) MENU G GAIN 0~255 (098) B GAIN 0~255 (098) CONTRAST 0~63 (50) BRIGHTNESS 0~63 (40) LANGUAGE ENG / T.CHINESE (ENG) MAIN MENU HDMI SOUND... - Page 11 PICTURE MENU • STANDARD: Setting to ON will allow the system to set the picture menu to the default value as indicated in the brackets. • R/G/B OFFSET: This option is to set a single display's R/G/B brightness values. • R/G/B GAIN: This option is to increase or decrease the R/G/B color values of single display.
-
Page 12: Remote Control
6.4 Remote Control POWER*: Press this button to switch on the device(s). All the connected Video Wall POWER POWER OFF System Control device(s) will switch ON. SINGLE POWER OFF*: Press this button to switch off the device. All the connected Video Wall System Control device(s) will switch OFF. -
Page 13: Rs-232 Pin Definition
6.5 RS-232 Pin Definition RS-232 IN RS-232 OUT Pin 1 Pin 1 Pin 2 Pin 2 Pin 3 Pin 3 Pin 4 Pin 4 Pin 5 Pin 5 Pin 6 Pin 6 Pin 7 Pin 7 Connect to Pin 8 Connect to Pin 8 Pin 8 Pin 8... -
Page 14: Connection Diagram
7. CONNECTION DIAGRAM 1. Connect the HDMI source (such as DVD or PS3) into the 'HDMI IN' of the HDMI splitter and connect the 'HDMI OUT' from the splitter to the Video Wall Control System(s) Srespectively. Connect each Control System HDMI output port to each TV/ monitor’s HDMI input port. - Page 15 SINGLE FULL Screen Screen Screen Screen Rear HDMI OUT HDMI OUT HDMI OUT HDMI OUT DC 5V DC 5V DC 5V DC 5V AUDIO OUT AUDIO OUT AUDIO OUT AUDIO OUT Front HDMI IN AUDIO IN PC IN RS 232 IN RS 232 OUT IR IN HDMI IN AUDIO IN...
-
Page 16: Specifications
8. SPECIFICATIONS Input Ports 1×HDMI, 1×PC, 1×RS-232 (Female connector), 1×IR, 1×L/R (3.5 mm Phone Jack) Output Ports 1×HDMI, 1×RS-232 (Male connector), 1×L/R (RCA connector) IR Frequency 38 kHz IR Cable Distance 3 meters Input Resolution Supports PC: VGA~SXGA, 1080p@60 HDMI: 480p~1080p Output Resolution HDMI: 720p &... -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDMI High Definition Multimedia Interface Infrared... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CVW11HS...
