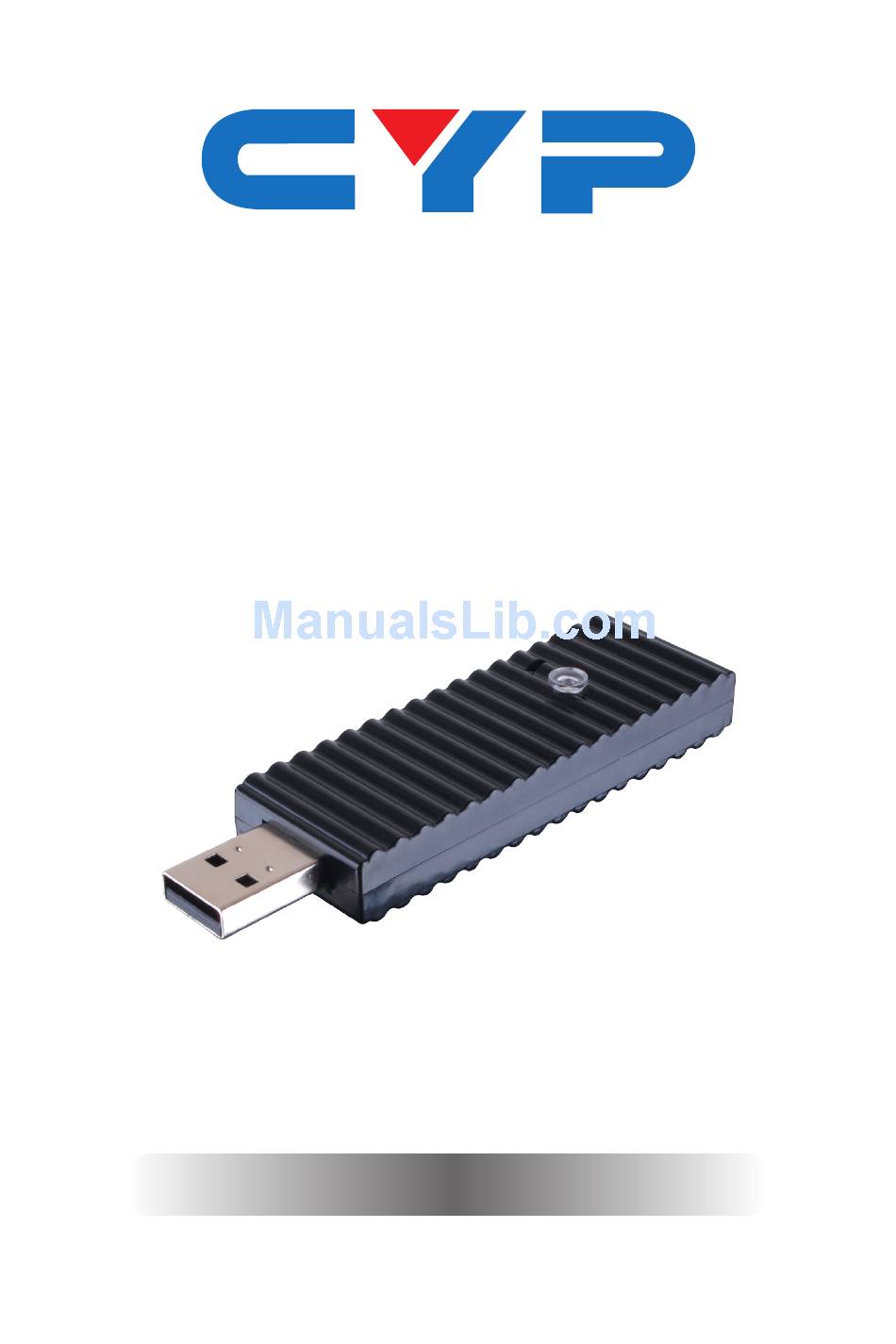

  • Page 1 CDPS-IRL IR Learner Operation Manual Operation Manual...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ........... 1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ........1 5. Features ............1 6. Operation Controls and Functions ....2 6.1 Hardware Description ......2 6.2 Software Application and Installation .. 3 7.

  • Page 5: Introduction

    1. INTRODUCTION The IR Learner is an amazing tool for all your control system design. This compact yet functional device can turn your analog IR signal into digital and store it for many usages. With simple software tool user can combine all remote controllers signal into one desire place and control all devices through that place.

  • Page 6: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Hardware Description USB IN Connect this port with PC/Laptop for IR signal transferring into data format. Update Press this button with pin and hold it while plug into PC/Laptop for firmware update. Copy the .bin file to your PC/Laptop in a location where you may use later.

  • Page 7: Software Application And Installation

    6.2 Software Application and Installation 6.2.1 Installation Please download the software from www.cypress.com.tw with file name CDPS-IRL-driver.rar and save it in a directory where you may link with the IR Learner. Connect the IR Learner to PC/Laptop and search it from the Device...
  • Page 8 Click on USB Virtual COM with mouse’s right button and select Update Driver Software…...
  • Page 9 Click on Browse for driver software and direct the downloaded software location. Windows Security will show warning message, click on Install anyway to continue the installation process.
  • Page 10 Close the dialogue to finish the installation.
  • Page 11 Now the IR Learner will be renamed as IRL Virtual Com Port in the Device Manager.
  • Page 12 6.2.2 Using the IR Learner Application Now your PC/Laptop has install successful the IR Learner and you may start to use with the IR learner with IR Learning Tool by opening the IRL Tool from the download file. Double click on IRL Tool...
  • Page 13 Select the Com Port according to IRL Virtual Com Port from the Device Manager and click on Connect. To start IR signal learning, click on IR Learning and press the remote control with the direct line-of-sight towards the IR Learner’s Receiver lens until the IR code has been learned and show Success from the IRL Tool.
  • Page 14 Then click on IR Emitter with IR Learner’s Blaster in direct line-of-sight towards the remote device to confirm if the learning is correct (or activate).
  • Page 15 This IR code/data then may be stored in another control system/ application for future usage or may be utilized in many other forms. (Copy the IR code from IR Data box).
  • Page 16 Click on IRL Version to see the IRL Tool’s version update status. Type $HELP to list all the IRL commands and use the command through RS-232 to control the IR Learning Tool. To clear the message in message box simply click on Clear MSG.

  • Page 17: Connection Diagram

    7. CONNECTION DIAGRAM...

  • Page 18: Specifications

    8. SPECIFICATIONS Input Port 1 x IR Output port 1 x IR 1 x USB IR Frequency 20~60kHz IR Input Signal Distance Up to 1M IR Blaster Out Distance Up to 10M ESD Protection Human Body model: ± 8kV (air-gap discharge) ±...
  • Page 19 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CDPSIRL...
