- Page 1 answers Technisches Handbuch / Technical Manual Mainboard D1450 Deutsch / English / Français...
- Page 2 Sie haben ..technische Fragen oder Probleme? Wenden Sie sich bitte an: • Ihren zuständigen Vertriebspartner • Ihre Verkaufsstelle Aktuelle Informationen und Updates (z. B. BIOS-Update) zu unseren Mainboards finden Sie im Internet: http://www.fujitsu-siemens.com/mainboards Are there ..any technical problems or other questions you need clarified? Please contact: •...
- Page 4 Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt. Herausgegeben von/Published by Fujitsu Siemens Computers GmbH Bestell-Nr./Order No.: A26361-D1450-Z120-1-6319 Printed in the Federal Republic of Germany AG 1103...
- Page 5 Deutsch English Mainboard D1450 Français Technisches Handbuch Technical Manual Ausgabe November 2003 November 2003 edition...
- Page 6 Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Inhaber und werden als geschützt anerkannt. Copyright ã Fujitsu Siemens Computers GmbH 2003 Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.

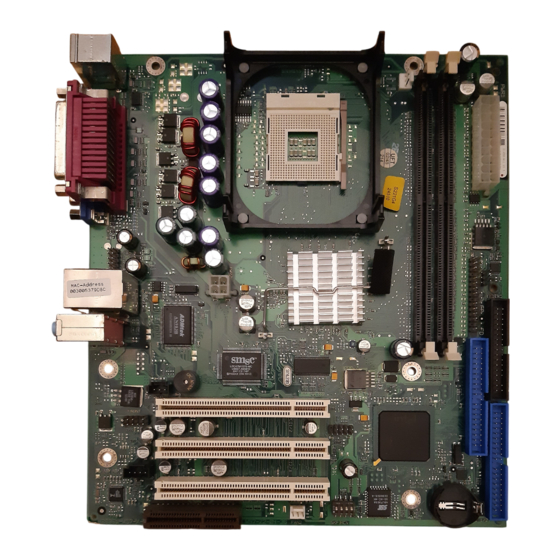

- Page 7 Übersicht/Overview Mainboard D1450 Stromversorgung / Power Supply Interne Anschlüsse und Steckplätze / Internal Bedienfeld / Frontpanel connectors and slots PowerOn LED II Diskettenlaufwerk / Floppy disk drive IDE-Laufwerke 3/4/ IDE-drives 3/4 IDE-Laufwerke 1/2/ IDE-drives 1/2 Batterie / Battery Schalter / Configuration Switch Lüfter 2 / Fan 2 (AUX) 10 = CD-Audio in...
-
Page 9: Table Of Contents
Contents Mainboard D1450..........................1 Notational conventions.......................1 Important notes ..........................2 Information about boards ......................2 List of features...........................3 Special technical features – special features ................5 Brief instructions on installing mainboard ..................6 Prior to installation ........................6 Interfaces and connectors ......................8 External ports ............................8 Internal ports and connectors ......................9 Hard disk connection .........................9 Pin assignment of internal ports.......................10 Settings with switches and jumpers ....................14... -
Page 11: Mainboard D1450
Mainboard D1450 Your mainboard is available in different configuration levels. Depending on the configuration chosen, some of the hardware components described may not be available on your mainboard. Additional information Information on the BIOS Setup and additional descriptions of the drivers are contained: •... -
Page 12: Important Notes
Mainboard D1450 Important notes With the mainboard installed you must open the system to access the mainboard. How to dismantle and reassemble the system is described in the operating manual accompanying the system. Connecting cables for peripherals must be adequately shielded to avoid interference. Observe the safety notes in the operating manual of your system. -
Page 13: List Of Features
Mainboard D1450 List of features Onboard features D1450-A D1450-C ® ® Chipset Intel 845GL Intel 845GV Board size µATX µATX ü ü Audio / 6-channel / S/PDIF 5.1 ü / - / - ü / - / - Buzzer / int. Speaker Support ü... - Page 14 Mainboard D1450 Internal ports D1450-A D1450-C DIMM slots (DDR, SDRAM) 2 (DDR266) 2 (DDR333) AGP Slot (2/4/8x, 32 bit, 66 MHz, 1.5 V) PCI slot (32 bit, 33 MHz, 5 V and 3.3 V) CNR Slot (Type A, AC‘97 only) Serial ATA interface (150 Mbyte/s) / - / 2 / 1 - / 2 / 1...
-
Page 15: Special Technical Features - Special Features
USB Security is a BIOS function that offers protection against unauthorised access regardless of the operating system used. If USB Security is activated, the system can only be started, if the MemoryBird of Fujitsu Siemens Computers is connected to one of the existing USB-ports. -
Page 16: Brief Instructions On Installing Mainboard
Brief instructions on installing mainboard Brief instructions on installing mainboard If you have purchased a separate mainboard, you can install the mainboard in your system in accordance with the following brief instructions. The activities described here assume a basic knowledge of PCs and cannot be carried out by a layperson. - Page 17 Brief instructions on installing mainboard ► Should no suitable connection field be provided in the case, then you must install the connection field (1) provided. Ensure the plate is aligned properly so that the connections are suitable for the mainboard later. ►...
-
Page 18: Interfaces And Connectors
Interfaces and connectors Interfaces and connectors The positions of the interfaces and connectors are shown on page "Cover". The components and connectors marked are not necessarily present on the mainboard. External ports The positions of the external ports are shown on page "Cover". PS/2 keyboard port, purple PS/2 mouse port, green Serial interface, turquoise... -
Page 19: Internal Ports And Connectors
Interfaces and connectors Graphics port - Supported screen resolutions Depending on the operating system used, the screen resolutions in the following table refer to the mainboard screen controller. If you are using an external screen controller, you will find details of supported screen resolutions in the operating manual or technical manual supplied with the controller. -
Page 20: Pin Assignment Of Internal Ports
Interfaces and connectors Pin assignment of internal ports The pin assignment of some internal connections is shown in English in the following. Some of the following connectors may be optional! Power supply ATX Signal Signal +3.3 V (P3V3P) +3.3 V (P3V3P) +3.3 V (P3V3P) -12 V (P12VN) +5 V (VCC) - Page 21 Interfaces and connectors Front panel Power On/Off Message LED Power On LED 1) 3) HD-LED Watch the poling of the LEDs. The positive pole Reset of the connection cables is often indicated with a coloured wire. SCSI LED Input 1) Cable is not included in the delivery scope. 2) The same interface 3) 2pin or 3pin connector possible Connection...
- Page 22 Interfaces and connectors (internal or external via special wire) Signal Signal VCC C VCC D Data negative C Data negative D Data positive C Data positive D Not Connected Fan 2 (AUX) (system fan - supervised) Signal Fix Fan voltage (+12 V, max. 1 A) Fan sense CD-ROM audio Signal...
- Page 23 Interfaces and connectors Audio front panel Signal Signal Micro input Analogue GND Micro bias Analogue VCC Right line output Right line return Left line output Left line return Audio S/PDIF Signal SPDIF out Processor power supply power supply Signal Signal +12 V +12 V Fan 1 (CPU)
-
Page 24: Settings With Switches And Jumpers
Settings with switches and jumpers Settings with switches and jumpers The positions of the switches and jumpers are shown on page "Cover". Skipping system and BIOS Setup password - switch 1 Switch 1 enables skipping the system and BIOS Setup password. System and BIOS Setup password are skipped when the device is switched on and may be changed. -
Page 25: Add-On Modules / Upgrading
Add-on modules / Upgrading Add-on modules / Upgrading Exit energy-saving mode, switch off the system and remove the power plug from the mains outlet, before carrying out any of the procedures described in this chapter! Even when you have switched off the device, parts (e.g. memory modules, AGP and PCI extension boards) are still supplied with power. - Page 26 Add-on modules / Upgrading Mounting heat sink Be sure to use heat conducting material between the processor and the heat sink. If a heat conducting pad (rubber-like foil) is already applied to the heat sink, then use it. Otherwise you must apply a very thin layer of heat conducting paste.
-
Page 27: Upgrading Main Memory
Add-on modules / Upgrading Upgrading main memory Technical data Technology: DDR 200, DDR 266 or DDR 333 unbuffered DIMM modules 184-Pin; 2.5 V; 64 Bit, no ECC DDR 333 is only supported with the mainboard version D1450-C. Size: 128 Mbytes up to 2 Gbyte DDR-SDRAM Granularity: 128, 256, 512 or 1024 Mbyte for one socket A current list of the memory modules recommended for this mainboard is available on the Internet... -
Page 28: Adding Pci Cards
Add-on modules / Upgrading Removing a memory module ► Push the clips on the right and left of the memory slot outward (1). ► Pull the memory module out of the memory slot (2). Adding PCI cards Technical data: 32 bit / 33 MHz PCI slots 5 V and 3.3 V supply voltage 3.3 V auxiliary voltage PCI bus interrupts - Selecting correct PCI slot... -
Page 29: Replacing Lithium Battery
Add-on modules / Upgrading Multifunctional expansion cards or expansion cards with integrated PCI-PCI bridge: These expansion cards require up to four PCI interrupts: INT A, INT B, INT C, INT D. How many and which of these interrupts are used is specified in the documentation provided with the card. The assignment of the PCI interrupts to the PCI IRQ Lines is shown in the following table: Onboard controller PCI INT... - Page 30 Add-on modules / Upgrading The lithium battery holder exists in different designs that function in the same way. ► Press the locking lug in the direction of the arrow; the battery jumps somewhat out of the holder (1). ► Remove the battery (2). ►...
-
Page 31: Bios Update
Add-on modules / Upgrading BIOS update When should a BIOS update be carried out? Fujitsu Siemens Computers makes new BIOS versions available to ensure compatibility to new operating systems, new software or new hardware. In addition, new BIOS functions can also be integrated. -
Page 32: Bios Recovery - Recovering System Bios
Add-on modules / Upgrading BIOS Recovery - Recovering System BIOS All BIOS settings are reset to the default values. ► Open the casing as described in the operating manual. ► Set the switch for "Restore system BIOS" to ON. ► Close the casing as described in the operating manual. -
Page 33: Microcode Update
Intel refers to the use of the processor without regular microcode updates as operation outside the specifications. Safety for processor on Fujitsu Siemens Computers mainboards If the processor uses an old or incorrect microcode, error-free operation cannot be ensured. Fujitsu Siemens Computers has therefore implemented a function on its mainboards that interrupts the booting process if no suitable microcode is available for the installed processor. -
Page 34: Drivers
Add-on modules / Upgrading Drivers Only when no drivers are installed on your system, or you want to update these, proceed as follows: ► Insert the CD "Drivers & Utilities Collection" into the CD-ROM drive. ► If the CD does not start automatically, run the START.EXE programme in the main directory of the CD. -
Page 35: Annex
Mainboard current requirement You require a Pentium4 power supply nit as per the ATX12V specification for this mainboard. If you do not have a PC from Fujitsu Siemens Computers, make sure that the power supply unit provides the required amperages. -
Page 36: Apm And Acpi System Status, Energy-Saving Modes
Annex APM and ACPI system status, energy-saving modes System ACPI Power Power Power Wake-up status Status Status LED I LED II consum time ption Normal On/Off Normal operation Simple Standby Off/On flashin Almost Almost energy- like immediate saving mode normal Maximum Off/On flashin... -
Page 37: Mainboard Revision And Bios Version
Annex Mainboard Revision and BIOS Version The compatibility, e.g. with new processors, can be independent of the BIOS version or the revision status of the mainboard used. The CPU and BIOS compatibility lists are available on the Internet at www.fujitsu-siemens.de/mainboards. Mainboard: Revision level The revision status of the mainboard exactly identifies which mainboard you have. -
Page 38: Error Messages
Error messages Error messages This chapter contains error messages generated by the mainboard. Available CPUs do not support the same bus frequency – System halted! Memory type mixing detected Non Fujitsu Siemens Memory Module detected – Warranty void There are more than 32 RDRAM devices in the system Check whether the system configuration has changed. - Page 39 Error messages DMA test failed EISA CMOS not writable Extended RAM Failed at offset: nnnn Extended RAM Failed at address line: nnnn Failing Bits: nnnn Fail-Safe Timer NMI failed Multiple-bit ECC error occurred Memory decreased in size Memory size found by POST differed from EISA CMOS Single-bit ECC error occurred Software NMI failed System memory exceeds the CPU’s caching limit...
- Page 40 Error messages Missing or invalid NVRAM token Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre. Monitor type does not match CMOS - RUN SETUP Correct the entry for the monitor type in the Main menu of the BIOS Setup. On Board PCI VGA not configured for Bus Master In the BIOS Setup, in the Advanced menu, submenu PCI Configuration, set the Shared PCI Master Assignment entry to VGA.
-
Page 41: Dos Error Messages
Error messages System battery is dead - Replace and run SETUP Replace the lithium battery on the mainboard and redo the settings in the BIOS Setup. System Cache Error - Cache disabled Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre. -
Page 42: Glossary
Error messages Glossary The technical terms and abbreviations given below represent only a selection of the full list of common technical terms and abbreviations. Not all technical terms and abbreviations listed here are valid for the described mainboard. ACPI Advanced Configuration and Industrial Standard Architecture Power Management Interface AC'97...
