9-inch Touchscreen Car Display
with Apple CarPlay & Android Auto
KAPCARSTE9A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAPCARSTE9A and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KAPCARSTE9A

Summary of Contents for Kogan KAPCARSTE9A

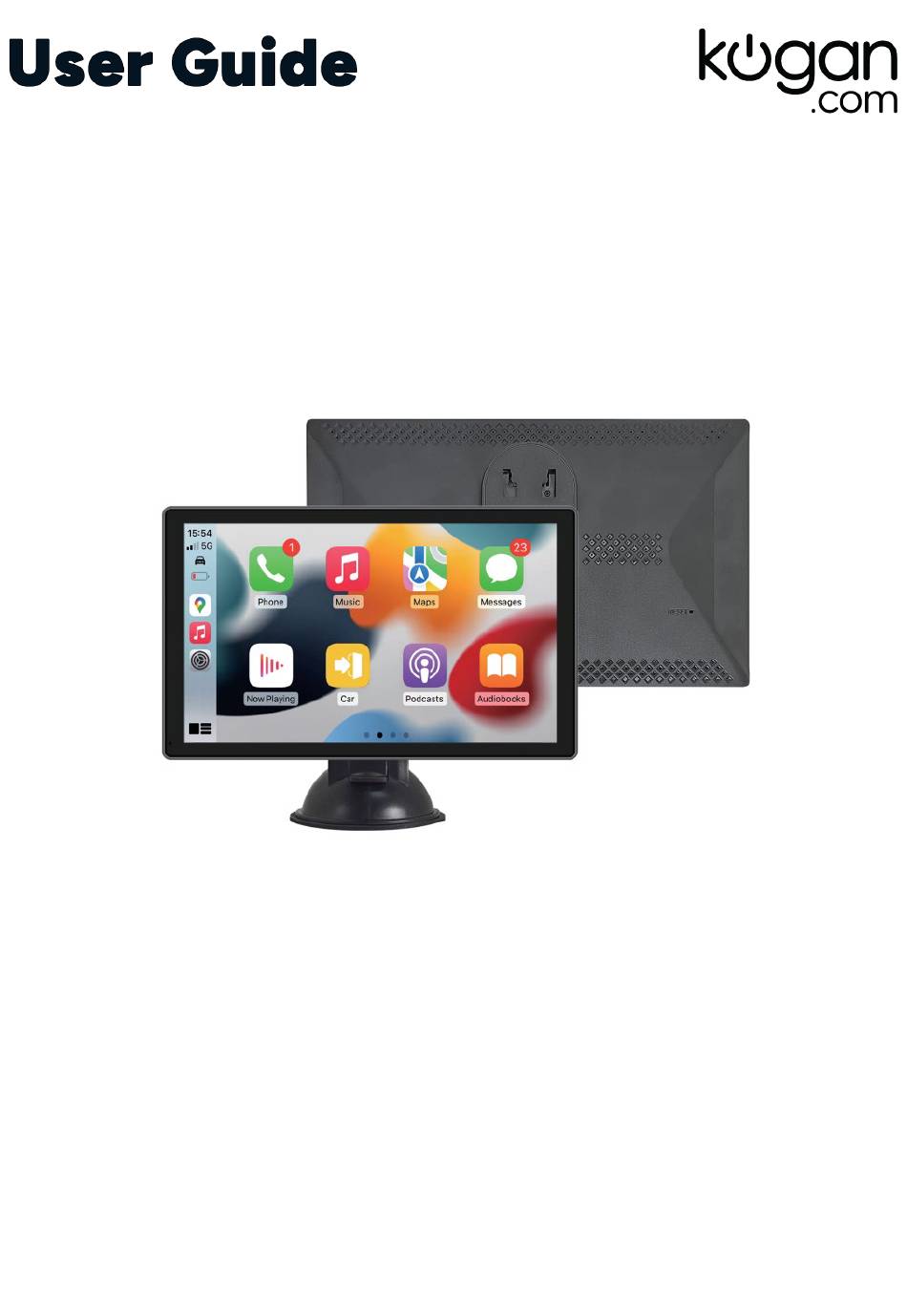

  • Page 1 9-inch Touchscreen Car Display with Apple CarPlay & Android Auto KAPCARSTE9A...

  • Page 3: Safety And Warnings

    Safety & Warnings • Ensure the display is securely mounted to prevent movement while driving. • Do not install the display in a location that obstructs the driver’s view of the road. • Avoid placing the display over airbags or other safety equipment. •...
  • Page 4 Components 9” Touchscreen Display 12V Power Cable Auxiliary Cable Display Mount Dash Mount Base Cable Guide User Guide...
  • Page 5 Overview Auxiliary 3.5mm Port Micro SD Slot USB-C Port (power) Touchscreen Display Display Mount...

  • Page 6: Installation

    Installation Dash Mount Clean the dashboard surface where the dash pad will be attached. Remove the adhesive backing and attach the dash pad to the vehicle dash. Remove the protective film from the suction cup. Ensure the switch on the rear of the mount is in the open position (there will be a gap between the suction cup and plastic housing).
  • Page 7 Windscreen Mount Clean the windscreen surface where the suction cup will be attached. Remove the protective film from the suction cup. Ensure the switch on the rear of the mount is in the open position (there will be a gap between the suction cup and plastic housing).

  • Page 8: Operation

    Operation Powering On the Display Connect the provided 12V power cable to your vehicle’s 12V socket (cigarette lighter). Connect the other end of the cable to the USB-C power input port on the display. The display will turn on automatically. Note: Use only the provided power cable and accessories to prevent damage or malfunction.
  • Page 9 CarPlay Wireless Connection Go to Setup → Phonelink Setting and enable "CarPlay (Wi-Fi)". Turn on your phone’s Wi-Fi and Bluetooth. Search for and connect to the device (e.g., CAR-XX-XXXX). Authorise the CarPlay connection on your phone. The display will swap to CarPlay once successfully paired with your phone.
  • Page 10 Android Auto Wireless Connection Go to Setup → Phonelink Setting and enable ‘Android Auto (Wi-Fi)’. Turn on your phone’s Wi-Fi and Bluetooth. Search for and connect to the device (e.g., CAR-XX-XXXX). Authorise the Android Auto connection on your phone. Note: Wireless Android Auto is compatible only with Android phones that support 5.0GHz Wi-Fi.

  • Page 11: Audio Output

    Audio Output • Built-in Speaker: Default audio output. • AUX Output: Connect to the car’s AUX input for direct audio. • FM Transmit: Enable FM Transmit in the settings to play audio through the car’s radio. Select a frequency (e.g., 106.0 MHz) and match it on your car’s radio. FM Transmit Function: The FM Transmit function allows the sound from the display to be transmitted to your car’s radio and played through the vehicle’s built-in speakers.
  • Page 12 Auxiliary Connection: The AUX connection allows direct wired audio output to your car’s stereo system. Follow these steps to set it up: Connect one end of the provided AUX cable to the AUX output port on the display. Plug the other end into the AUX input of your car’s stereo system. Select the AUX input mode on your car stereo to begin playing audio from the display.
  • Page 13 Bluetooth The display supports Bluetooth connectivity for streaming music and making hands-free calls. Follow these steps to utilise Bluetooth functions: Streaming Music: Select "BT Music" from the home screen. Ensure your phone’s output is set to "CAR-XX-XXXX" rather than CarPlay. Play music from your phone and enjoy audio through the display or connected speakers.
  • Page 14 Q10: How do I fix the display when it freezes? A10: Press the reset button on the back of the display and restore the factory settings. If the issue persists after 2 or 3 resets, contact help.Kogan.com for support. Q11: I cannot connect my Huawei smartphone to Android Auto?
  • Page 15 Q12: Apple CarPlay connection issue A12: For certain iOS smartphone versions, try restarting the phone before attempting to connect again. Q13: Why has the use of an AUX cable reduced stereo power? A13: Ground interference caused by the AUX cable may lead to noise. Q14: Why is there distortion in the product's built-in speaker output? A14: The speaker power is relatively low.
  • Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
