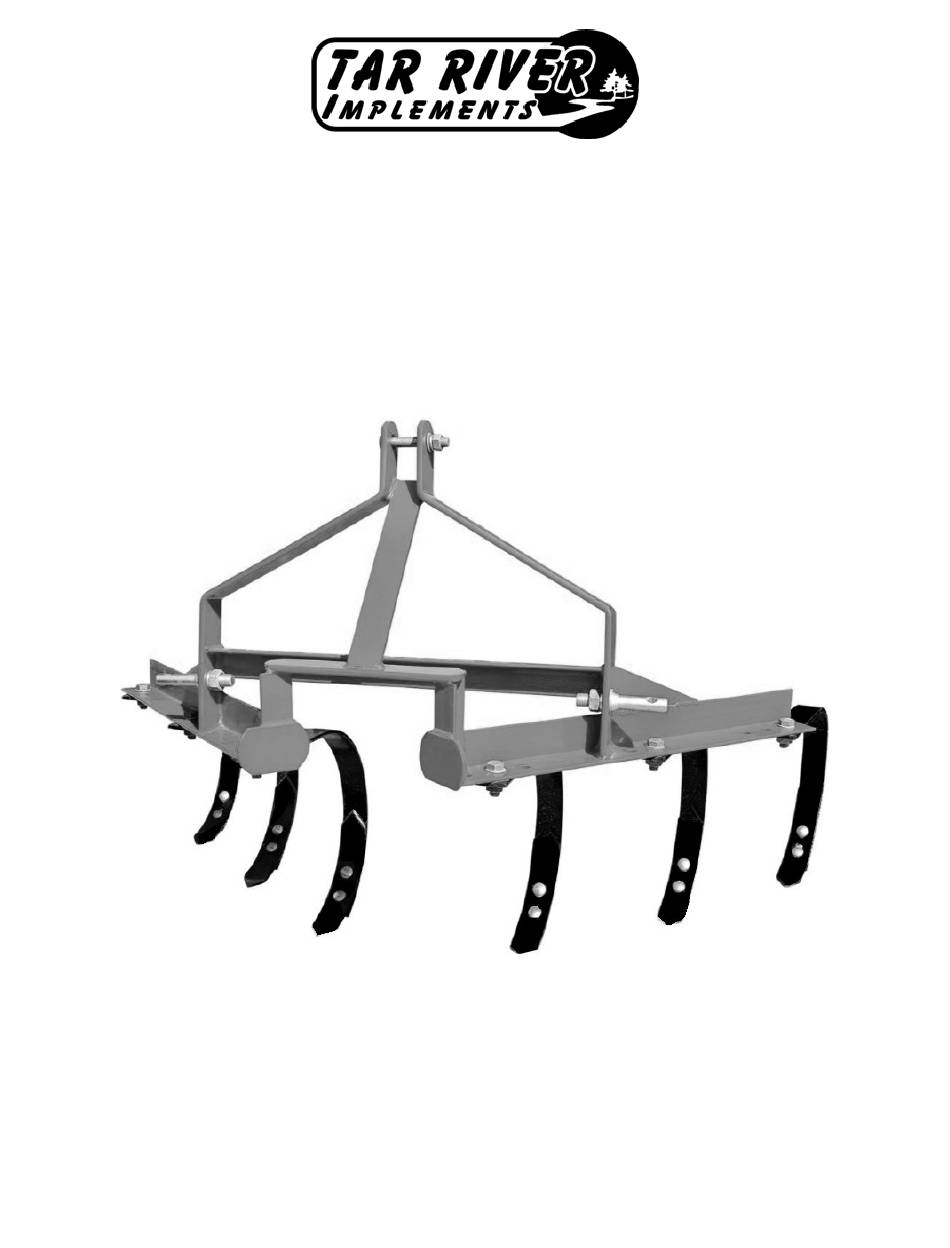

  • Page 1 3 Point Cultivator TPC-6 Operator’s Manual Rel. 03/25...
  • Page 2 TCP-6 3 Point Cultivator Page left blank intentionally...
  • Page 3 Tar River service parts, and the necessary tools and equipment to handle all your needs. Use only genuine Tar River service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation.
  • Page 4 TCP-6 3 Point Cultivator TO THE DEALER: Part 1 of 2 Assembly and proper installation of this product is the responsibility of the Belco Resources Dealer. Read man- ual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery List and Owners Check List in the Owner’s/Operator’s Manual are completed before releasing equipment to the owner.
  • Page 5 TCP-6 3 Point Cultivator TO THE DEALER: Part 2 of 2 Dealer is to review the following items to the owner. Place a check mark in the box beside each item reviewed. Checklist - Owner Correct attachment of machine to tractor Safe operation of the machine Importance of regular lubrication, maintenance and inspection Troubleshooting...

  • Page 6: Table Of Contents

    TCP-6 3 Point Cultivator Table of Contents Introduction …………………………………………………………………………………………….. 7 Technical Specifications ……………………………………………………………………………….. 7 Safety …………………………………………………………………………………………………… 8 Safety Signal Words ……………………………………………………………………………………. 8 General Safety Guidelines ……………………………………………………………………………… 9 Safety Decal Care ………………………………………………………………………………………. 9 Before Operation ……………………………………………………………………………………….. 10 During Operation ……………………………………………………………………………………….. 11 Highway And Transport Operations ……………………………………………………………………...

  • Page 7: Introduction

    TCP-6 3 Point Cultivator Introduction Thank you for purchasing your Tar River “TCP 3 Point Cultivator”. The TCP Cultivator is used to aerate and prep soil before planting, breaks up weeds, helps incorporate fertilizer into the soil. The TCP Cultivator encourages plant growth and prevents weeds from taking root.

  • Page 8: Important Safety Information

    TCP-6 3 Point Cultivator Important Safety Information Safety It is important that you read the entire manual and to become familiar with this product before you begin using it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification.

  • Page 9: General Safety Guidelines

    TCP-6 3 Point Cultivator Important Safety Information General Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.

  • Page 10: Before Operation

    TCP-6 3 Point Cultivator Important Safety Information How to Install Safety Signs Be sure that the installation area is clean and dry. • Decide on the exact position before you remove the backing paper. • Remove the smallest portion of the split backing paper. •...

  • Page 11: During Operation

    TCP-6 3 Point Cultivator Important Safety Information During Operation Children should not be allowed on the product. • Clear the area of small children and bystanders before moving the machine. • If using a towing unit, securely attach machine by using a hardened 3/4” pin, a metal retainer, and safety •...

  • Page 12: Highway And Transport Operations

    TCP-6 3 Point Cultivator Important Safety Information Highway and Transport Operations Adopt safe driving practices. • Keep the brake pedals latched together at all times. Never use independent braking with machine in tow • as loss of control and/or upset of machine can result. Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an •...
  • Page 13 TCP-6 3 Point Cultivator Important Safety Information Highway and Transport Operations Maneuver the tractor or towing vehicle at safe speeds. • Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death. • Avoid loose fill, rocks and holes, they can be dangerous for equipment operation or movement. •...

  • Page 14: Operating Instructions

    TCP-6 3 Point Cultivator Assembly Operating Instructions Before Use & Adjustments Before mounting of cultivator make sure that all nuts & bolts are properly secured. Also determine soil and trash conditions of the field and make the preliminary adjustments. e.g. Tine leveling To eliminate uneven working and side draft, leveling is done by means of top link.

  • Page 15: Maintenance

    TCP-6 3 Point Cultivator Assembly Maintenance Instructions Operation, Care & Maintenance of Cultivator 1. All the shovels of the tines should be set at equal depth. To do this, place the cultivator on level ground and see that all the shovels touch the ground. 2.

  • Page 16: Torque Specifications

    TCP-6 3 Point Cultivator Torque Specifications Notes: This chart is an approximate estimate of torque values. Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for Metric hardware.

  • Page 17: Parts Manual

    3 Point Cultivator TPC-6 Parts Manual Rel. 03/25...

  • Page 18: Frame Assembly

    TCP-6 3 Point Cultivator Frame Assembly...
  • Page 19 TCP-6 3 Point Cultivator Frame Assembly Item Part # Description Qty. TCP20001 Main frame, TCP-6 BM162040 Bolt HH M16-2.0x40 TCP20002 Cultivator Rake FW16 Washer flat M16 LW16 Washer lock M16 NM1620 Nut HH M16-2.0 plated zinc CBM1217535 Bolt carriage M12-1.75x35 TCP20003 Cultivator shovel FW12...

  • Page 20: Limited Warranty

    TCP-6 3 Point Cultivator Warranty LIMITED WARRANTY Belco Resources Equipment warrants to the original purchaser of any new piece of machinery from Belco Resources Equipment, purchased from an authorized Belco Resources Equipment dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and municipalities’...
  • Page 21 TCP-6 3 Point Cultivator Page left blank intentionally...
  • Page 22 TCP-6 3 Point Cultivator Page left blank intentionally...
  • Page 23 TCP-6 3 Point Cultivator Page left blank intentionally...
  • Page 24 TCP-6 3 Point Cultivator 401 Jeffreys Road Tel: 252-822-7140 Rocky Mount, NC 27804 Fax: 252-787-5855 www.tarrivermfg.com Sales@tarrivermfg.com...
