The device also provides up to eight programmable inputs for
monitoring undervoltage faults, overvoltage faults, or out-of-
window faults on up to eight supplies. In addition, there are eight
programmable outputs that can be used as logic enables. Six of
these programmable outputs can also provide up to a 12 V output
for driving the gate of an NFET that can be placed in the path of
a supply.
The logical core of the device is a SE. This state machine-based
construction provides up to 63 different states. This design enables
very flexible sequencing of the outputs based on the condition of
the inputs.

DETAILED BLOCK DIAGRAM

VX1
VX2
VX3
VX4
VP1
VP2
VP3
VH
AGND
VDDCAP
REFIN REFOUT
ADM1169
12-BIT
SAR ADC
GPI SIGNAL
CONDITIONING
GPI SIGNAL
CONDITIONING
SELECTABLE
ATTENUATOR
SELECTABLE
ATTENUATOR
REG 5.25V
CHARGE PUMP
VDD
ARBITRATOR
GND VCCP

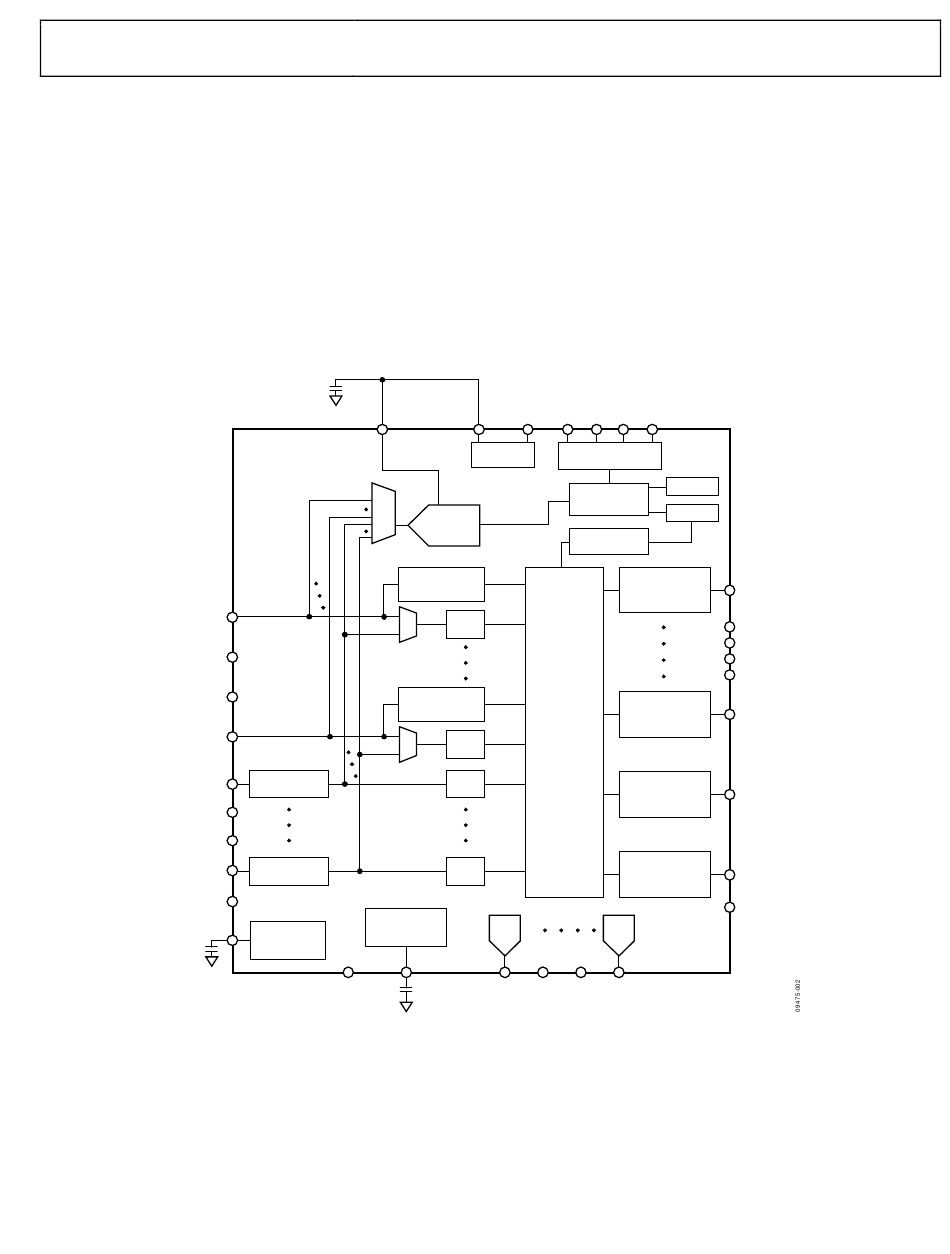

Figure 2. Detailed Block Diagram
A block of nonvolatile EEPROM is available that can be used to
store user-defined information and can also be used to hold a
number of fault records that are written by the sequencing engine
defined by the user when a particular fault or sequence occurs.
The ADM1169 is controlled via configuration data that can be
programmed into an EEPROM. The entire configuration can
be programmed using an intuitive GUI-based software package
provided by Analog Devices, Inc.
REFGND SDA SCL A1
SMBus
VREF
INTERFACE
DEVICE
CONTROLLER
FAULT
RECORDING
SFD
SEQUENCING
ENGINE
SFD
SFD
SFD
V V
OUT OUT
DAC DAC
DAC1 DAC2 DAC3 DAC4
Rev. 0 | Page 3 of 36
A0
OSC
EEPROM
CONFIGURABLE
PDO1
OUTPUT DRIVER
(HV)
PDO2
PDO3
PDO4
PDO5
CONFIGURABLE
OUTPUT DRIVER PDO6
(HV)
CONFIGURABLE
PDO7
OUTPUT DRIVER
(LV)
CONFIGURABLE
OUTPUT DRIVER PDO8
(LV)
PDOGND
ADM1169
