Power smart HB5046C Instruction Manual page 8

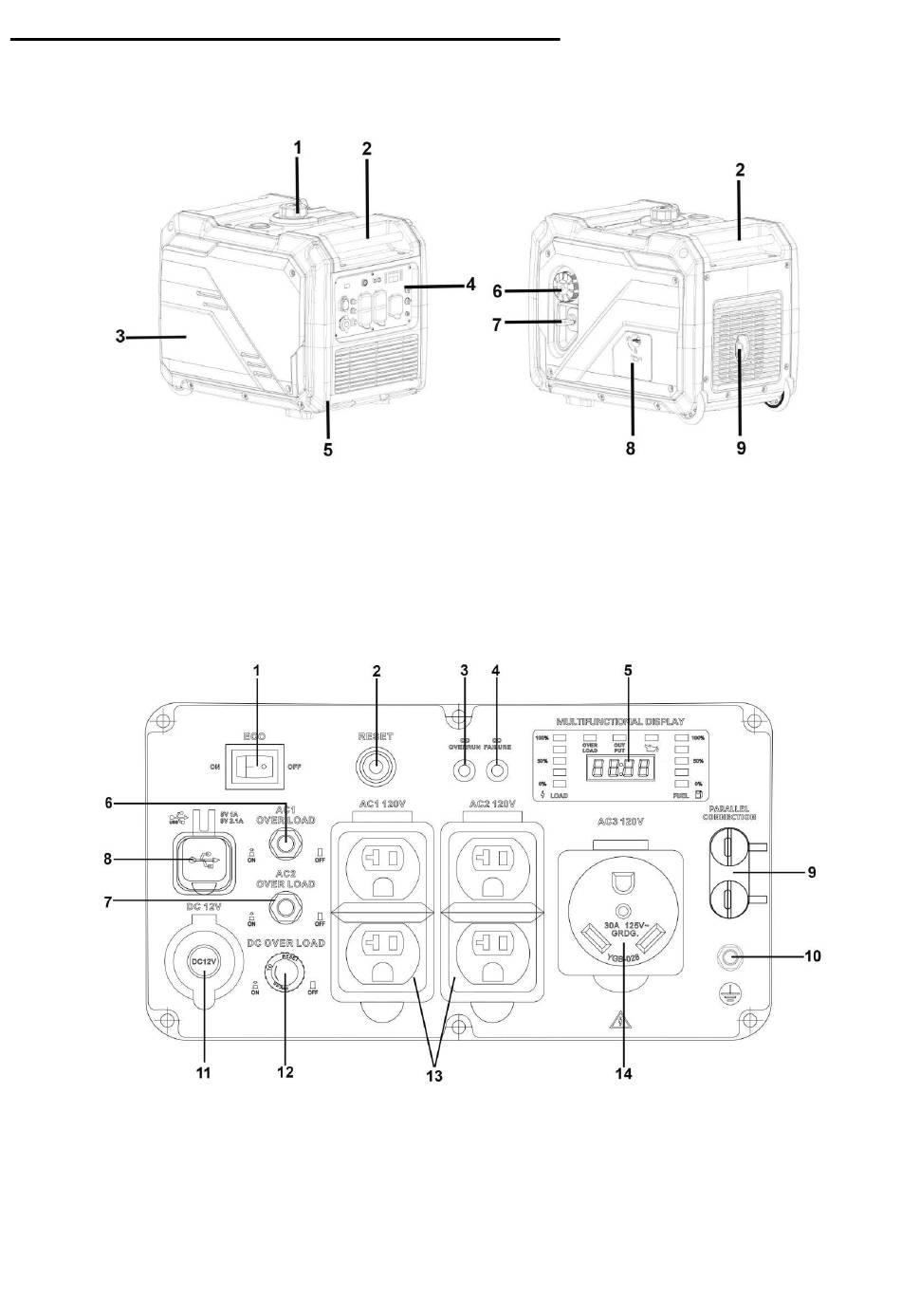

KNOWING YOUR INVERTER GENERATOR
Use the illustrations below to become familiar with the locations and functions of the various components and
controls of this generator.
1 Fuel tank cap
2 Carrying handle
3 Spark plug&air filter
maintenance cover
CONTROL PANEL
1 ECO switch
2 AC reset
3 CO alarm light
4 CO failure light
5 Multi-function meter
4 Control panel
5 Carrying handle
6 Fuel tap
6 AC1 circuit breaker
7 AC2 circuit breaker
8 USB port
9 Parallel kit terminal
10 Ground(earth)terminal
8
7 Recoil starter
8 Oil maintenance cover
9 Muffler exhaust exit
11 12V DC port
12 DC breaker
13 20A AC output receptacle
14 30A RV receptacle
