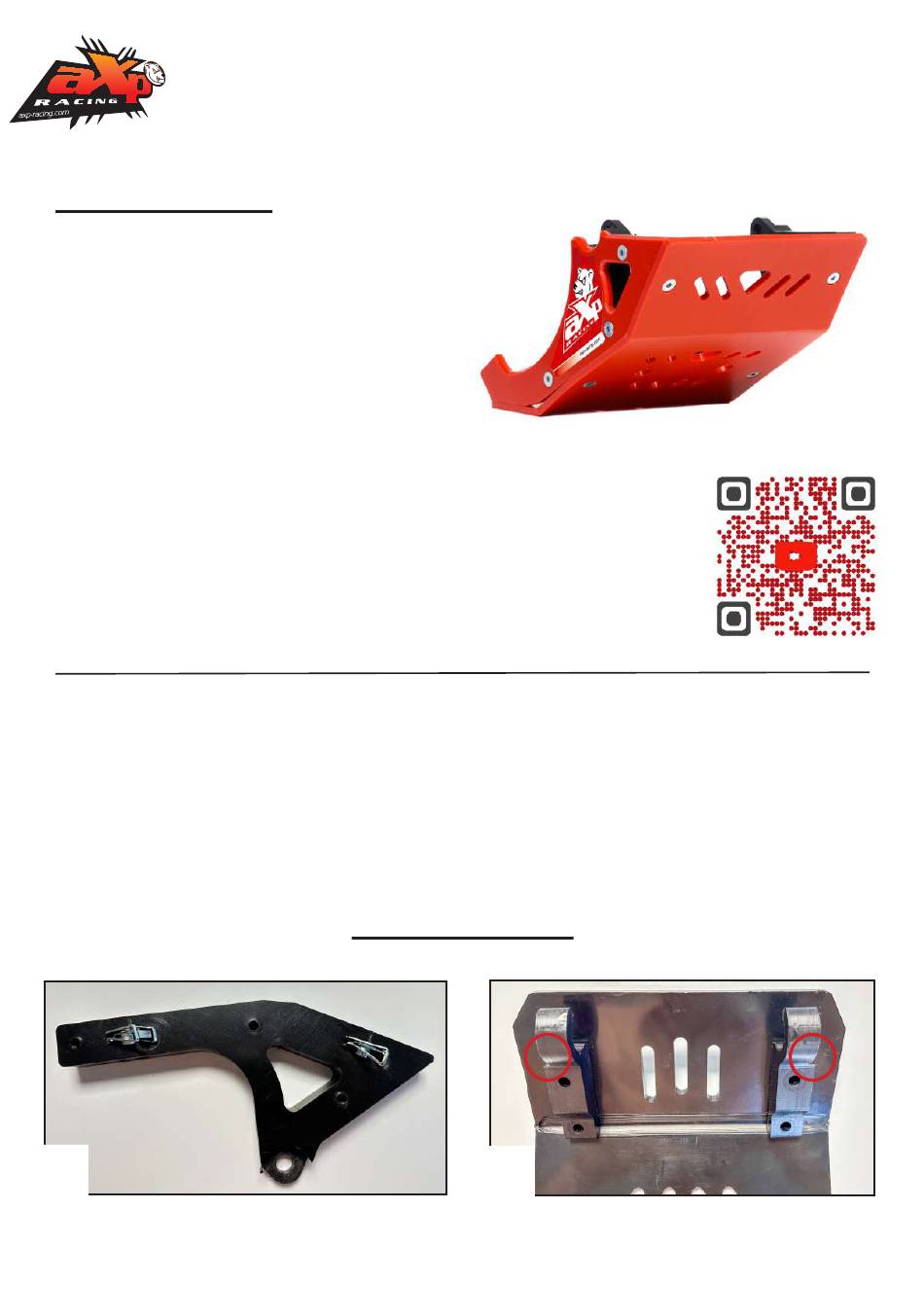

AX1708
Skid plate
Surron - LightBee
What's in the box ?
4 NE01-04-003 - EM6F bolts
4 NE01-03-001 - EM6 washers
6 NE01-02-003 - TFHC 6x25 screws
6 NE01-02-001 - TFHC 6x16 screws
2 NE01-02-004 - TFHC 6x30 screws
2 NE01-01-004 - TBHC 8x25 screws
2 NE01-04-001 - EM8F bolts
4 NE01-04-002 - Clamped bolts
1 PM01-04-263 - Front left fixation
1 PM01-04-264 - Front right fixation
1 PM01-04-265 - Rear left hook
1 PM01-04-266 - Rear right hook
1 PM01-07-068 - Left cover
1 PM01-07-069 - Right cover
1 NE04-01-246 - Sticker
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does not have
a « life warranty ». However, production default may happen and we cover it during
the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1
Place the clamped bolts inside the front
fixations.
The paper instructions
may be limitless, a tutorial
video is available online
to help you.
The pictures might not
represent the same skid
plate but the fitment is
similar.
Follow the steps !
2
Place the rear hooks with the machined faces
Assembling
instructions
on the outside.
Advertisement
Related Manuals for aXp RACING AX1708
Summary of Contents for aXp RACING AX1708
- Page 1 Assembling AX1708 Skid plate instructions Surron - LightBee What’s in the box ? 4 NE01-04-003 - EM6F bolts 4 NE01-03-001 - EM6 washers 6 NE01-02-003 - TFHC 6x25 screws 6 NE01-02-001 - TFHC 6x16 screws 2 NE01-02-004 - TFHC 6x30 screws...
- Page 2 Place the smaller screw Repeat the operation on the Remove the plastic protection. (6x25mm) in the bottom hole, other side. the 6x30 screw on top and tighten. Lift the cable up. Place the front right fixation Place the plastic protection using 8x25 screw + EM8F bolt back and fix the second front and tighten.
