6/21/23, 3:47 PM

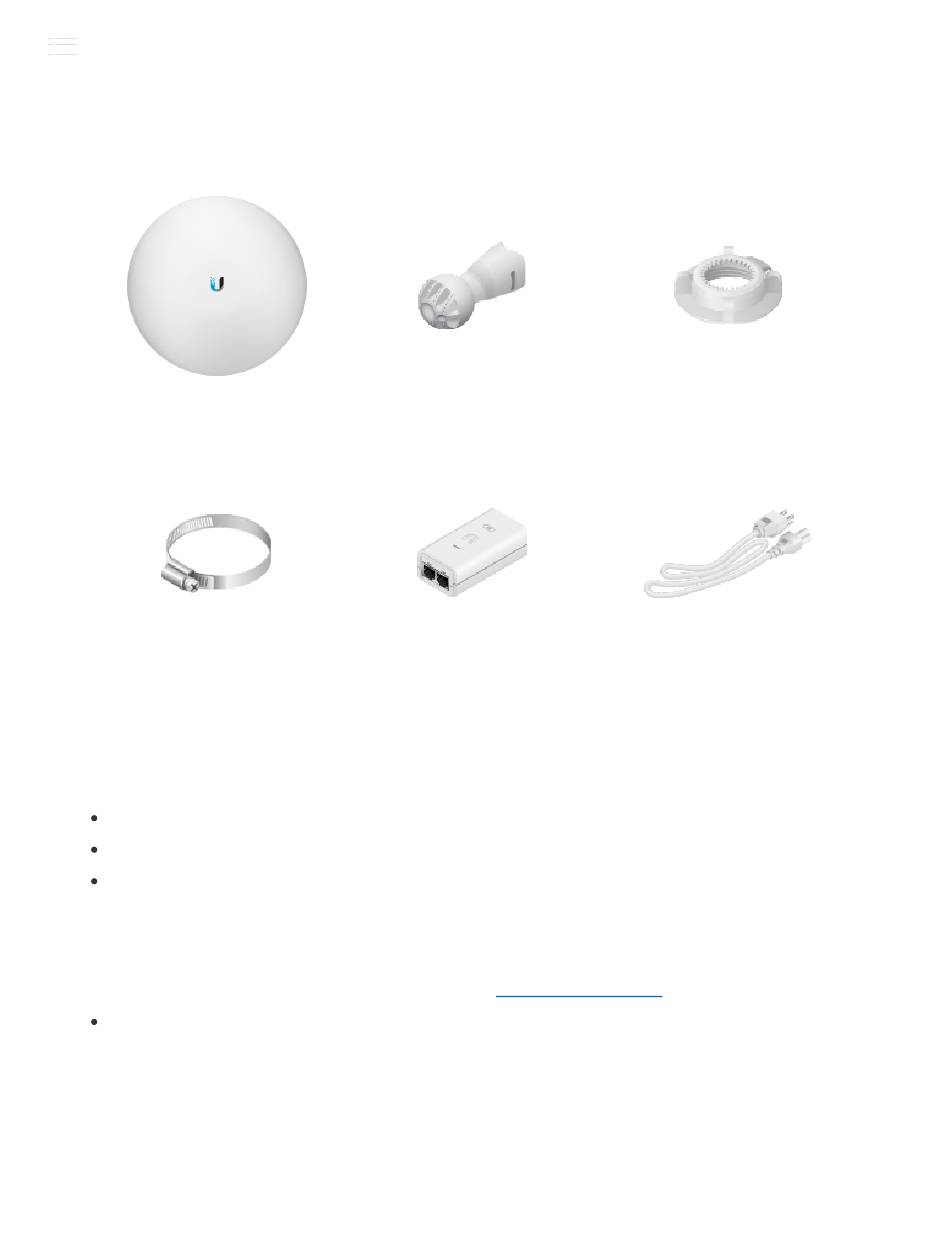

Package Contents
NanoBeam 5AC Gen 2
Metal Strap
Installation Requirements
Pole-mounting: 7 mm socket wrench or screwdriver
Wall-mounting: wall fastener (not included)
Shielded Category 5 (or above) cabling with drain wire should be used for all wired
Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded Ethernet
cable from Ubiquiti. For more details, visit
Surge protection should be used for all outdoor installations. We recommend that
you use two Ethernet Surge Protectors, model ETH-SP, one near the NanoBeam
and the other at the entry point to the building. The ETH-SP will absorb power
surges and safely discharge them into the ground.
https://dl.ubnt.com/qsg/NBE-5AC-Gen2/NBE-5AC-Gen2_EN.html#OnlineResources
NBE-5AC-Gen2 Quick Start Guide
NBE-5AC-Gen2 Quick Start Guide
Ball Joint Mount
Gigabit PoE (24V, 0.5A) with
Mounting Bracket
ui.com/toughcable
Lock Ring
Power Cord
1/18
Advertisement
Table of Contents
Related Manuals for Ubiquiti NBE-5AC-Gen2-US
Summary of Contents for Ubiquiti NBE-5AC-Gen2-US
- Page 1 Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP, one near the NanoBeam and the other at the entry point to the building.
-
Page 2: Hardware Overview
6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide Hardware Overview https://dl.ubnt.com/qsg/NBE-5AC-Gen2/NBE-5AC-Gen2_EN.html#OnlineResources 2/18... - Page 3 6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide Main Ethernet Port This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on.
-
Page 4: Hardware Installation
6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide This Gigabit Ethernet port provides passthrough PoE to power and connect a 24V passive PoE device to the network. Note: In order to use PoE Passthrough on the Secondary port, a 24V, 1A PoE adapter is required. - Page 5 6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide https://dl.ubnt.com/qsg/NBE-5AC-Gen2/NBE-5AC-Gen2_EN.html#OnlineResources 5/18...
-
Page 6: Wall Mounting
6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide Wall Mounting The NanoBeam must be mounted directly to a wood stud or other structurally stable surface to avoid damage to the mounting hole when you adjust the aim. Optional Accessory To enhance stability, you can use the NanoBeam Wall Mount Kit, model NBE-WMK (sold separately). - Page 7 6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide https://dl.ubnt.com/qsg/NBE-5AC-Gen2/NBE-5AC-Gen2_EN.html#OnlineResources 7/18...
- Page 8 6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide Fastener (not included) NanoBeam Wall Mount Kit https://dl.ubnt.com/qsg/NBE-5AC-Gen2/NBE-5AC-Gen2_EN.html#OnlineResources 8/18...
- Page 9 6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide Aiming https://dl.ubnt.com/qsg/NBE-5AC-Gen2/NBE-5AC-Gen2_EN.html#OnlineResources 9/18...
-
Page 10: Connecting Power
6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide Connecting Power https://dl.ubnt.com/qsg/NBE-5AC-Gen2/NBE-5AC-Gen2_EN.html#OnlineResources 10/18... - Page 11 6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide. https://dl.ubnt.com/qsg/NBE-5AC-Gen2/NBE-5AC-Gen2_EN.html#OnlineResources 11/18...
- Page 12 6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 Quick Start Guide Optional Accessing airOS via Wi-Fi Verify connectivity in the airOS® Configuration Interface using the UISP™ app or Web Portal. Both are available for 15 minutes immediately after you power on the device.
-
Page 13: Web Portal
6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide 1. Download the UISP app. NBE-5AC-Gen2 Quick Start Guide 2. Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address> Note: Ensure that DHCP is enabled on your Wi-Fi adapter. 3. Launch the app and follow the on-screen instructions. Web Portal 1. - Page 14 6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide NBE-5AC-Gen2 NBE-5AC-Gen2 Quick Start Guide Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92") Weight 530 g (1.17 lb) Gain 17 dBi Networking Interface (2) 10/100/1000 Ethernet Ports Wi-Fi for Management Enclosure Outdoor UV Stabilized Plastic Max.
-
Page 15: Safety Notices
6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide Operating Frequency (MHz) NBE-5AC-Gen2 Quick Start Guide U-NII-3 5725 - 5850 Management Radio (MHz) Worldwide 2412 - 2472 US/CA 2412 - 2462 Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. - Page 16 6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide The limited warranty requires the use of arbitration to resolve disputes on an individual basis, NBE-5AC-Gen2 Quick Start Guide and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
-
Page 17: Important Note
6/21/23, 3:47 PM NBE-5AC-Gen2 Quick Start Guide Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une NBE-5AC-Gen2 Quick Start Guide utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. IMPORTANT NOTE Radiation Exposure Statement This equipment complies with radiation exposure limits set forth for an uncontrolled... -
Page 18: Weee Compliance Statement
Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2023 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/NBE-5AC-Gen2/NBE-5AC-Gen2_EN.html#OnlineResources 18/18...
