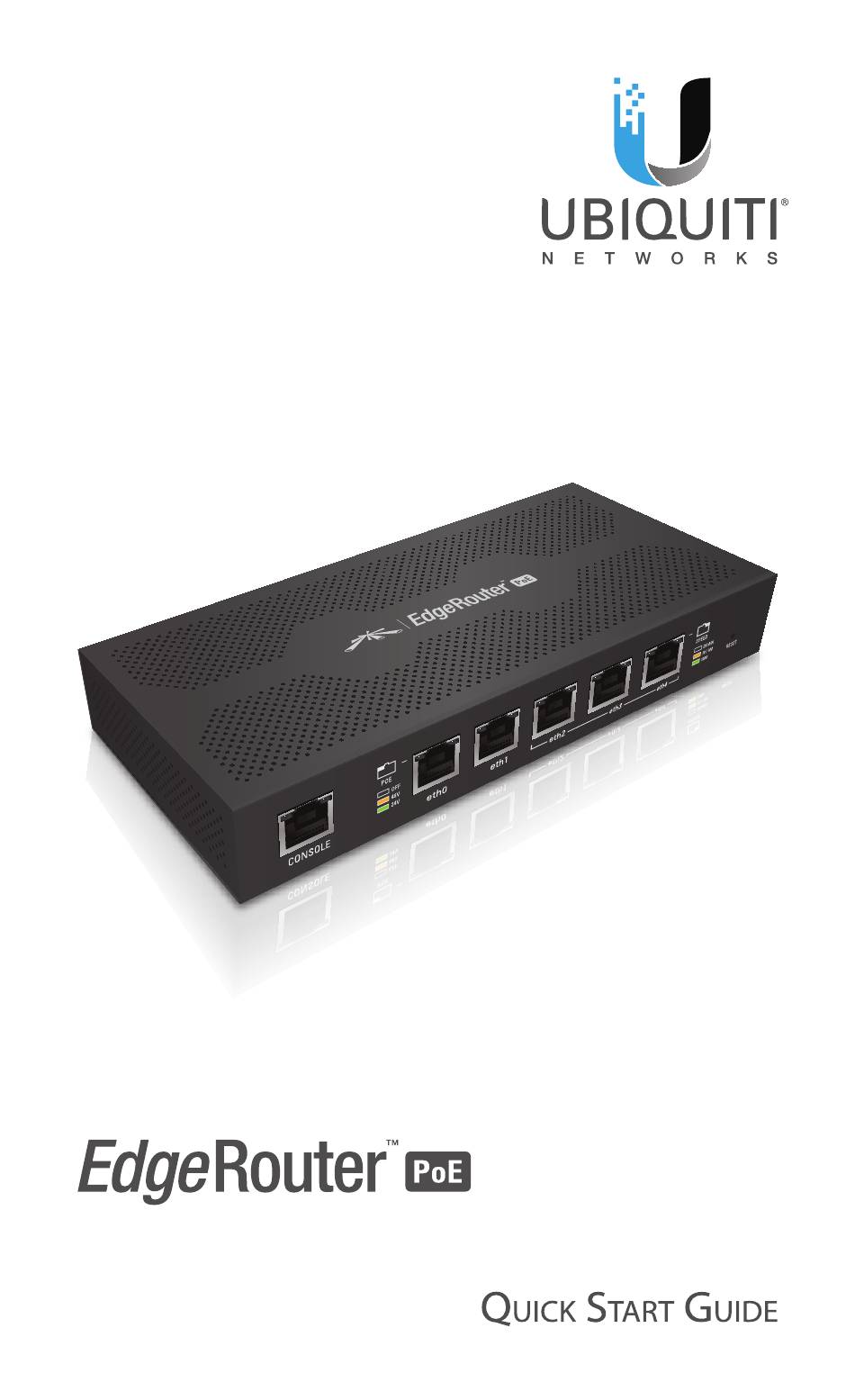

- Page 1 https://arttel.ru/ 5-Port Router with Power over Ethernet Model: ERPoe-5 https://arttel.ru/shop/marshrutizatory/ubiqu...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® EdgeRouter PoE 5-Port Router. This Quick Start Guide is ™ designed to guide you through installation and also includes warranty terms. Package Contents EdgeRouter PoE Power Adapter Power Cord (48V, 1.25A) -
Page 3: Hardware Overview

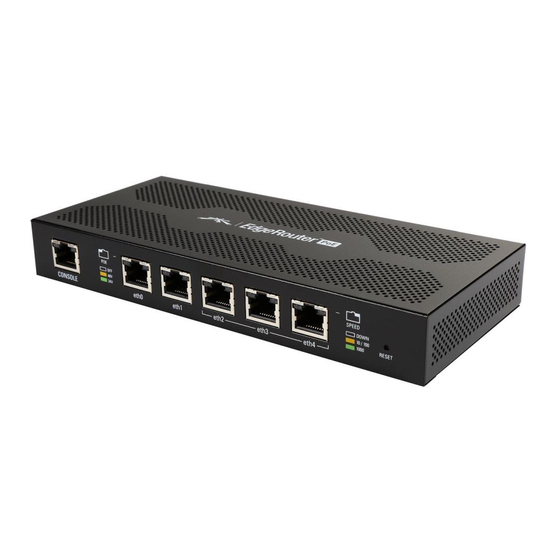

https://arttel.ru/ Hardware Overview Front Panel Ports Console Ethernet (eth0-eth4) Reset Interface Description RJ45 serial console port for Command Line Interface (CLI) management. Use a Console RJ45-to-DB9 serial console cable to connect the Console port to your computer. All ports can be used for routing and support 10/100/1000 Mbps connections with Ethernet configurable PoE settings. - Page 4 https://arttel.ru/ Front Panel LEDs Power Speed/Link/Act State Status Power off Power Green Power on No Power over Ethernet Green 24V Power over Ethernet Amber 48V Power over Ethernet No Link Link Established at Amber 10/100 Mbps Speed/ Link Activity at Amber Flashing Link/ 10/100 Mbps...
-
Page 5: Installation Requirements
AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable WARNING: To reduce the risk of fire or electric shock, do not expose the EdgeRouter to rain or moisture. -
Page 6: Wall Mounting
https://arttel.ru/ Wall Mounting To mount the EdgeRouter PoE on a wall: 1. Use a 6 mm drill bit to drill two holes 100 mm apart. 2. Insert the M2.9 Anchors into the holes. Use a Phillips screwdriver to secure a M2.9x20 Screw to each anchor. Leave a clearance of approximately 3 mm between each screw head and its anchor. - Page 7 https://arttel.ru/ Grounding the EdgeRouter PoE (Recommended) The EdgeRouter PoE is grounded through the Power Adapter; however, you can add optional ESD grounding for enhanced ESD protection. 1. Loosen the grounding screw and secure a ground wire (not included) to the Grounding Point. 2.
-
Page 8: Connecting Power
https://arttel.ru/ Connecting Power 1. Connect the Power Adapter to the Power port. 2. Connect the Power Cord to the Power Adapter. Connect the other end of the Power Cord to a power outlet. https://arttel.ru/shop/marshrutizatory/ubiqu... - Page 9 (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
- Page 10 https://arttel.ru/ Configuring PoE Settings The PoE setting for ports eth0-eth4 is set to Off by default. WARNING: Before activating PoE, ensure that the connected device supports passive PoE and the supplied voltage. 1. In the Dashboard tab, click Actions > PoE of the Ethernet port you want to configure.
- Page 11 https://arttel.ru/ 3. The PoE LED on the Ethernet port will confirm the PoE setting. For detailed instructions on configuring other features, please refer to the EdgeRouter PoE User Guide. The User Guide is available at documentation.ubnt.com/edgemax https://arttel.ru/shop/marshrutizatory/ubiqu...
-
Page 12: Specifications
https://arttel.ru/ Specifications EdgeRouter PoE 5-Port Dimensions 200 x 90 x 30 mm (7.87 x 3.54 x 1.18") Weight 360 g (12.7 oz) Power Input 24VDC / 48VDC (48VDC, 1.25A Power Adapter Included) Button Reset Processor Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing System Memory 512 MB DDR2 RAM... -
Page 13: Safety Notices
https://arttel.ru/ Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 14: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 15: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. -
Page 16: Industry Canada
https://arttel.ru/ Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. -
Page 17: Australia And New Zealand
https://arttel.ru/ Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. - Page 18 https://arttel.ru/ Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 19: Declaration Of Conformity
Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más [Hungarian] vonatkozó 2014/30/EU, 2014/35/EU irányelvek rendelkezéseit. Íslenska Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana [Icelandic] 2014/30/ESB, 2014/35/ESB. Italiano Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è... -
Page 20: Online Resources
. u b n t . c o m ©2013-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeSwitch, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
