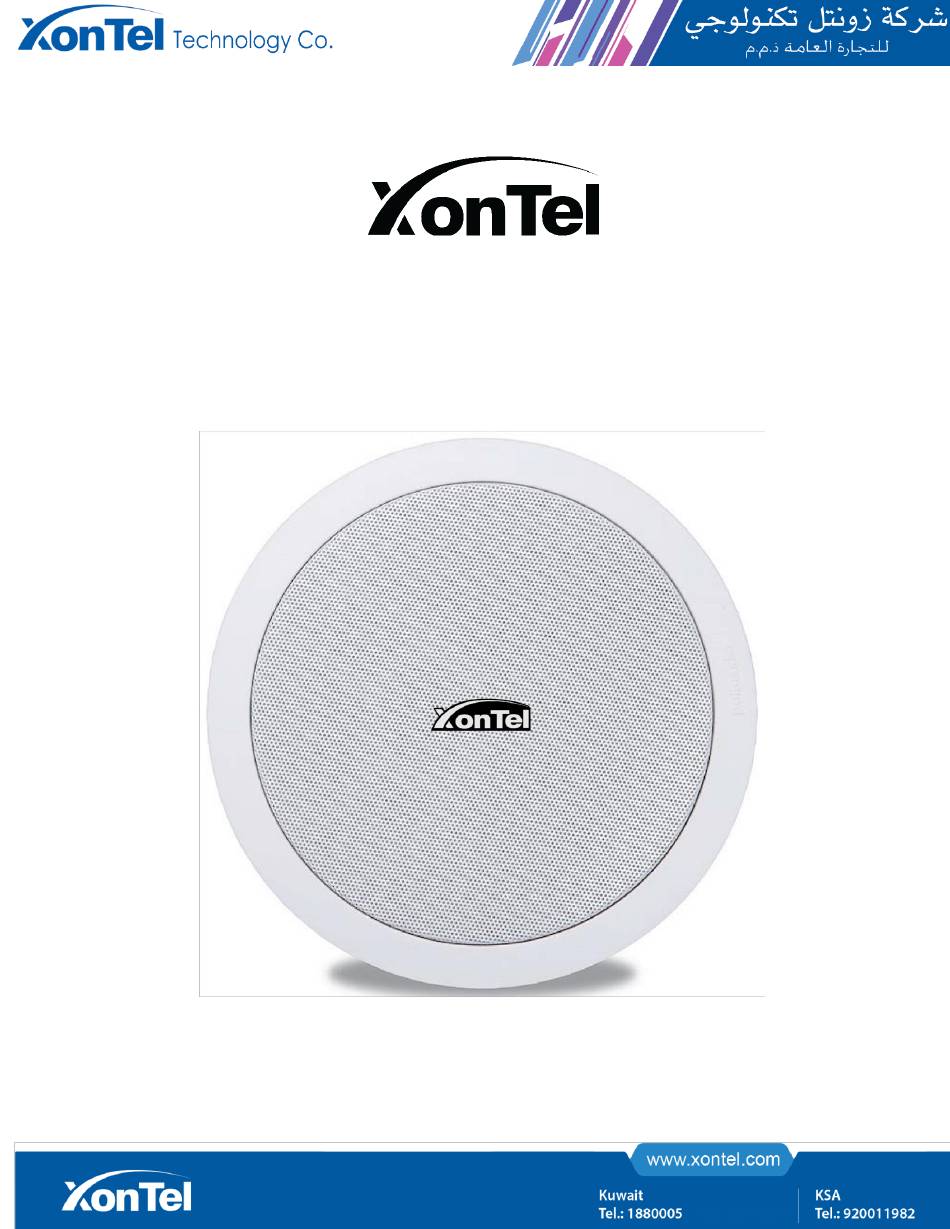

  • Page 1 XT-20BA Active Bluetooth TWS Ceiling Speaker (20 Watt)
  • Page 2 Before start the installation: Make sure you design your Speaker Location and quantity in the right way to sound cover the area in a good way, below Diagram can help in this, and if you are not sure of the result, please test all the speakers on the ground in your location before you install them on the ceiling and before you open the speaker hole to make sure of the sound coverage.
  • Page 3 Wires connection from XT-20W-BA to the 3pcs XT-20W BP...

  • Page 4: Aux Input

    Please first pull out the plug of the green socket (SP1, SP2, SP3) for easy fixing the cable from the 3pcs (XT-20BP) Speakers to the Green Socket in the back of XT-20BA. Please make sure you connect the (Red/Black) connector as prescribed (+) and (-) active speaker, use a good quality copper wire with a diameter at least 1mm²...

  • Page 5: Installation Steps

    1- Open the hole in the ceiling, size 165mm = 16.5cm 2- Pull the sound wires between the speakers and connect them in a good way. 3- Connect the power cable to the (XT-20BA) Speaker Socket and then Link the 230V power source to the Speaker DC15V Power adapter.
  • Page 6 4- Once the hole is cut, remove the protective grill and insert the speaker in the hole and make sure the fastening hooks are unscrewed.
  • Page 7 5- Tighten the fastening Screw in a clockwise direction until the speaker is Locked . 6- Insert the protective grill...
  • Page 8 Speaker. Note: (XT-20BA) Active Speaker can only accept max 2pcs UHF microphones at the same time speak. The UHF microphone is connected to the active speaker (XT-20BA). But the UHF microphones has no voice transmission. Solution: A- The UHF microphone is close to the active ceiling speaker within 1 meter, Turn on the active speaker.
  • Page 9 The UHF microphone is connected to the active speaker. But the UHF microphone makes noise or interferes with other UHF frequencies. Solution: A- The UHF microphone is 1 meter close to the host active speaker. Turn on the active speaker. B- Press the power button + (SET) button both at the same time, the display will show the symbol icon.
  • Page 10 NOTE: ID Code Correspondence Instructions: A. Mandatory proofreading the UHF frequency: Issue: (The UHF microphone is connected to the active speaker. But the UHF microphone makes noise or interferes with the other UHF frequency. Solution: First put The UHF microphone close to the active ceiling speaker within 1-10 meters, Turn on the active speaker.
  • Page 11 Clip microphone (MIC-02) changes setup channel. (The CH A change the CH B) (NOTE: When the clip microphone is in the ‘CH B ‘channel, do not set it.) 1- Press the ‘SET ‘ key. 2- Let the Clip microphone of Screen show ‘CH03 ‘channel, turn off. 3- Press and hold the ‘’power ‘’button for about 10 seconds.
  • Page 12 Important Notes: If you have many Active Speakers and they are close to each other as per the following picture:...
  • Page 13 Steps to isolate Mic Pairing for each Active Speaker: 1- mTurn Off Active Speaker of Room 2. 2- For our Scenario we will Choose CH 05 for ROOM 1 Within 1 Meter between MIC & Active Speaker Keep pressing on “Set” to lock the channel.
  • Page 14 3- Then Keep press on “Power” + “Set” for 10 Seconds then release your finger to pair the MIC with Active Speaker.
  • Page 15 4- Choose the CH 5 by pressing on “Frequency Select”...
  • Page 16 5- Then Keep press on “Power” & “Frequency Select” for 10 Seconds then release your finger to pair the MIC with Active Speaker and lock the channel. 6- Do the same for Room 2 but with different Channel Number!
  • Page 17 Infrared Remote-Control RC-01 The Remote control can manage all the main function, in case of wrong operation check the batteries charge and if needed replace it. 1- Power ON/Off. 2- Mute. 3- increase the volume. 4- Decrease the volume. 5- Increase the UHF microphone volume. 6- Decrease the UHF microphone volume.
