Summary of Contents for XONTEL XT-20P
-
Page 2: Table Of Contents
Contents Summary ......................................3 Safety Precaution ..................................... 3 Product Introduction ..................................4 Interface Description ..................................4 Introduction ..................................... 5 Packing List ...................................... 5 Wiring ....................................... 5 User-define Terminal Parameters ..............................6 Login Webpage ....................................6 Network Parameters ..................................7 Server Parameters .................................... 8 SIP Parameters .................................... -
Page 3: Summary
Summary Safety Precaution • Read the safety precaution carefully before installing or using. •Please abide by the warning and the relevant safety tips. Please put this manual in convenient place for future reference. Warning This symbol means there are potential safe troubles, it may cause death or serious injury with incorrect operation. This symbol used to remind the user that this device attached the important operation and maintenance instructions. -
Page 4: Product Introduction

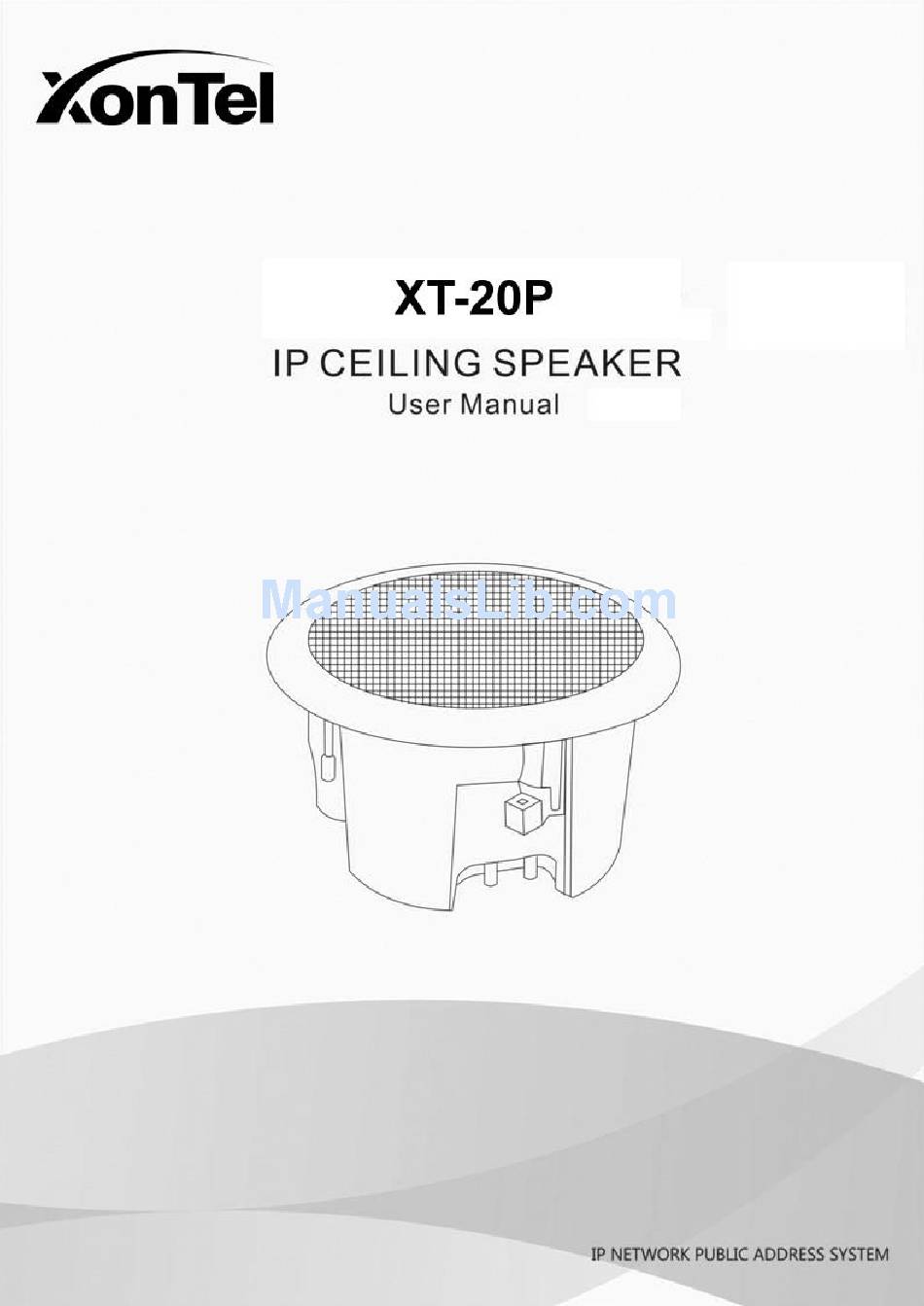

Product Introduction XonTel XT-20P IP network ceiling speaker embedded IP Audio Digital Network audio technology with independent intellectual property rights. It can accept broadcasting initiated by other terminals and servers and support function settings through browser. With Circuit fault detection function, it can detect the working status of the horn and display on the server software. -
Page 5: Introduction
Introduction Packing List IP ceiling speaker is including the following fittings, please check the fittings before the installation, if any missing, please contact the distributor. （1） IP ceiling speaker 1 pcs （2） Waterproof connector 1 pcs （3） certification 1 pcs （4）... -
Page 6: User-Define Terminal Parameters
Basic Network Settings Enter into the webpage of XonTel XT-20P IP ceiling speaker, and then modify all the parameters according to the live environment. After finishing, click “save”. User-define Terminal Parameters Login Webpage Please input the IP address of XonTel XT-20P IP ceiling speaker to the address column of the browser (the factory default IP address is 192.168.1.101, it will automatically play the IP address when the press the terminal key without... -
Page 7: Network Parameters
IP address of XT-20P IP ceiling speaker, default as 192.168.1.101 Terminal IP Subnet mask Please set Subnet mask ( default as 255.255.255.0) Gateway The network gateway of XT-20P IP ceiling speaker (default as 192.168.1.1) The IP of preferred DNS server. DNS1 The IP of alternate DNS server. DNS2... -
Page 8: Server Parameters
Server Parameters The parameters specification as following: The unique No. that to identify the IP ceiling speaker, and cannot repeat with other Terminal ID main master. The default is 1. The device port number default to be 2046, please don’t modify if no exceptional Terminal Port circumstance. -
Page 9: Sip Parameters
SIP Parameters The parameters specification as following: The SIP server IP address of terminal, please fill with correct with SIP server IP SIP server address or domain name. The port cannot be modified if no exceptional circumstances. ( default is 5060) Account The SIP account of terminal, which is cannot repeat with other terminal. -
Page 10: Audio Parameters
Audio Parameters The parameters specification as following: Broadcast output volume The total volume of the device broadcasting audio output, the volume is 0-15. The buffer time of broadcasting (that is to make sure the broadcasting output Buffer time quality under the bad network environment). Enable the Audio check function, the server will pop up the window to show Audio check the failures when the timing noise is less than or equal to the arrange noise. -
Page 11: Password Settings
Password Settings The account and password to log in the webpage can be changed in WEB management parameters. How to change the web login account and password? 1 .Click the password setting in web page. 2. Input the old account and old password. 3. -
Page 12: Firmware Upgrade
Firmware Upgrade Enter the firmware upgrade mode after 15 seconds to click “Upgrade”, then click “Browser” to choose the upgrade file by manufacturers, and click “Upgrade”. Note: Do not power off during the upgrade process, or it may cause the upgrade to fail, and the device fails. Reset to Defaults Reset to defaults: all parameters need to be reset to defaults. -
Page 13: Reboot The Device
Reboot the Device Users can click the “Reboot” to reboot the XT-20P ceiling speakers. -
Page 14: Fault Exclude
Fault Exclude Why the terminal cannot login the server? 1).Check the software server and the main controller is normal opened or not. It`s required to close all firewall before open the software server (including system built-in firewall and other antivirus software firewall) . 2).Check the network connection is normal or not.
