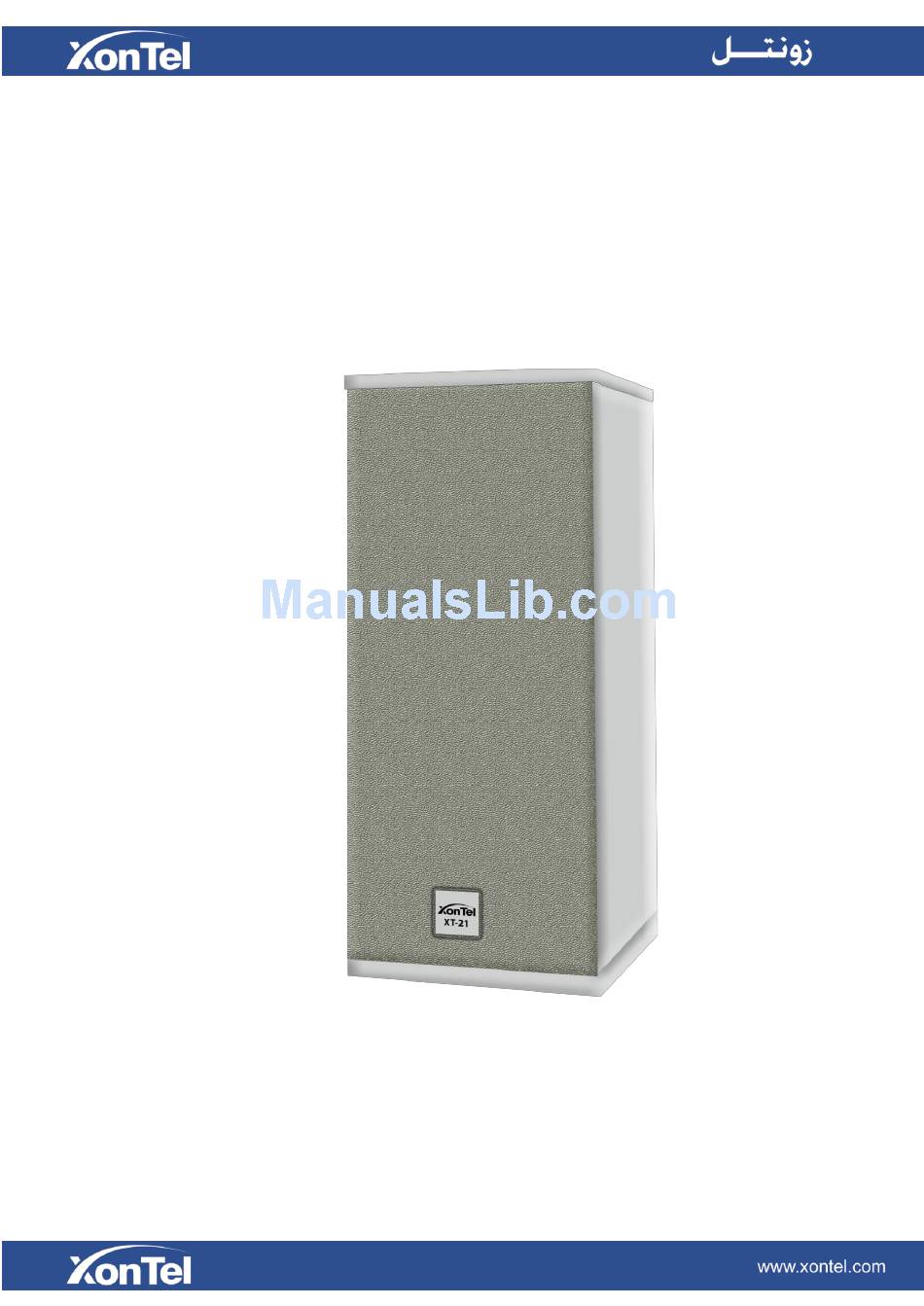

- Page 1 XonTel XT-21 Wall Mounted SIP Speaker User Manual...
-
Page 2: Table Of Contents
Contents Summary ..................................3 Product Introduction ..............................4 Features ..................................4 Hardware Interface Introduction............................ 4 Introduction ................................. 5 Packing List .................................. 5 Wiring ................................... 7 Basic Network Settings ..............................7 User-define Terminal Parameters ..........................8 Login Web interface ..............................8 Network Parameters .............................. -
Page 3: Summary
Summary Warning The sign means there is potential safety hazard, when operate wrong may result in death or serious injury. The sign is used to remind user of this equipment is attached the important data of operation and maintenance. Setting and Installation Avoid being wet with the water. -
Page 4: Product Introduction
Product Introduction Summary XonTel XT-21 SIP speaker which is embedded with the IP Audio digital network audio technology of independent intellectual property rights, the terminal is equipped with power input interface, network interface, short-circuit input/output interface. Features Integration wall-mounted design, exquisite workmanship, integrated network audio decoding, amplifier and column speaker. -
Page 5: Introduction
Receive broadcast task: green light quickly flashes. Introduction Packing List XonTel XT-21 SIP speaker column including the following parts, please check all the parts before the installation, if any missing, please contact your supplier. （1） XonTel XT-21 SIP speaker 1 pcs （2）... - Page 6 （5） Hexagonal self-drilling screws (M5.2*2 with gasket) 4 pcs （6） Hexagonal screw (M8*10) 2 pcs （7） Spring washer 2 pcs （8） Gasket 2 pcs （9） Waterproof tail circuit connector 1 set （10） Bracket 2 pcs...
-
Page 7: Wiring
Terminal Devices Scanning Tool Run XT-21 speaker IP configuration tool “Devconfigtool.exe” and , after starting, input the default password “123456” Please select the [mandatory config] from the right menu, then filling each correct parameters in the [Terminal parameter]. It will be finished IP parameter configuration once pressed “sending parameters”. (It will be effective after... -
Page 8: User-Define Terminal Parameters
Note: 1. If use Win7 system operating, please taking the administrator mode to run and close all the firewall and related software. 2.The terminal scanning tools can only set the network parameter configuration to one terminal at one time, so please ensure one computer only connect with the one target terminal when using this ways. -
Page 9: Network Parameters
Network Parameters Click “Net options” and enter into the basic settings and network parameters modification interface, you can modify network parameters as the following picture shows, and then click save to finish network parameters settings. Parameters as following: Terminal IP Terminal IP address and port, the factory default IP address is 192.168.1.101 Subnet mask The subnet mask of the terminal... -
Page 10: Sip Options
Sip options Click “Sip options” to register XonTel XT-21 speaker to a SIP server. Before registering, please make sure that you have valid login information with a valid SIP server. If this information is not valid, the speaker cannot be registered. -
Page 11: Audio Parameters
Local SIP port in the XT-21 speaker Audio Port Audio port in the XT-21 speaker. Multicast Contact Here you can enable or disable multicast paging feature in the XT-21 speaker. Multicast Address Multicast listening IP address in the XT-21 speaker. Audio Parameters Parameters as following: The total output volume of XT-21 SIP speaker in broadcasting （0~15). -
Page 12: Alarm Parameters
Alarm Parameters Closed circuit alarm: the external terminal is normally in open circuit status, when it is in closed circuit status, it will trigger alarm. Open circuit alarm: the external terminal is normally in closed circuit status, when it is in open circuit status, it will trigger alarm. Password Settings Modifying the user-name and password in Web parameters of the web page. -
Page 13: Firmware Upgrade
Firmware upgrade To upgrade XonTel XT-21 speaker firmware (Use Internet Explorer) you must do the following steps: “Update firmware” page then click on “Update” to start the upgrading process and wait for 15 seconds. In the Note: Don’t power off the XonTel XT-21 speaker while upgrading process is running. - Page 14 Login to the XonTel XT-21 speaker again using this web browser then click on the firmware” page then click on “Choose file” and choose the XonTel XT-21 speaker firmware file from your PC then click on “Update” to start the upgrading process and wait for 30 seconds.
-
Page 15: Reset To Defaults
Restore factory setting: all parameters were restored to factory setting. The last time correct settings: it will recover to the last login server parameters. Reboot the device Here you can reboot XonTel XT-21 speaker Note: Modification of the parameters in web page will be workable after the device rebooted. -
Page 16: System Log
System Log XonTel XT-21 SIP speaker can record the operating condition and form log, the user can browser the system log in web page. -
Page 17: Fault Exclude
Fault exclude Terminal cannot login to the server? 1、 Check the server software and main control computer is normally open or not. It must close all the firewall before open the service software, (including the systemic firewall and other antivirus software). 2、Check the network connection is normally working or not.
