Summary of Contents for XONTEL XT-20P

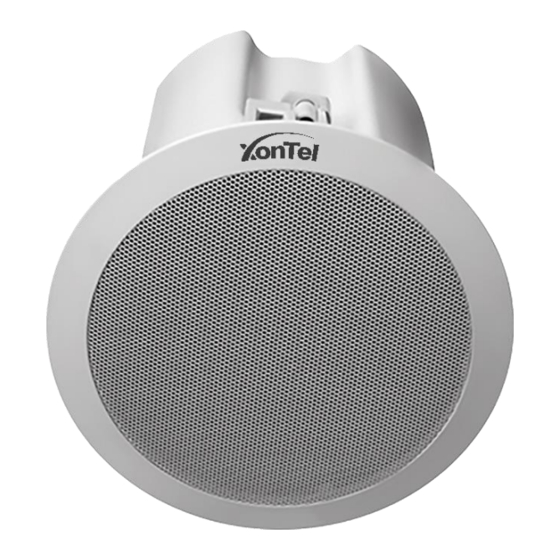

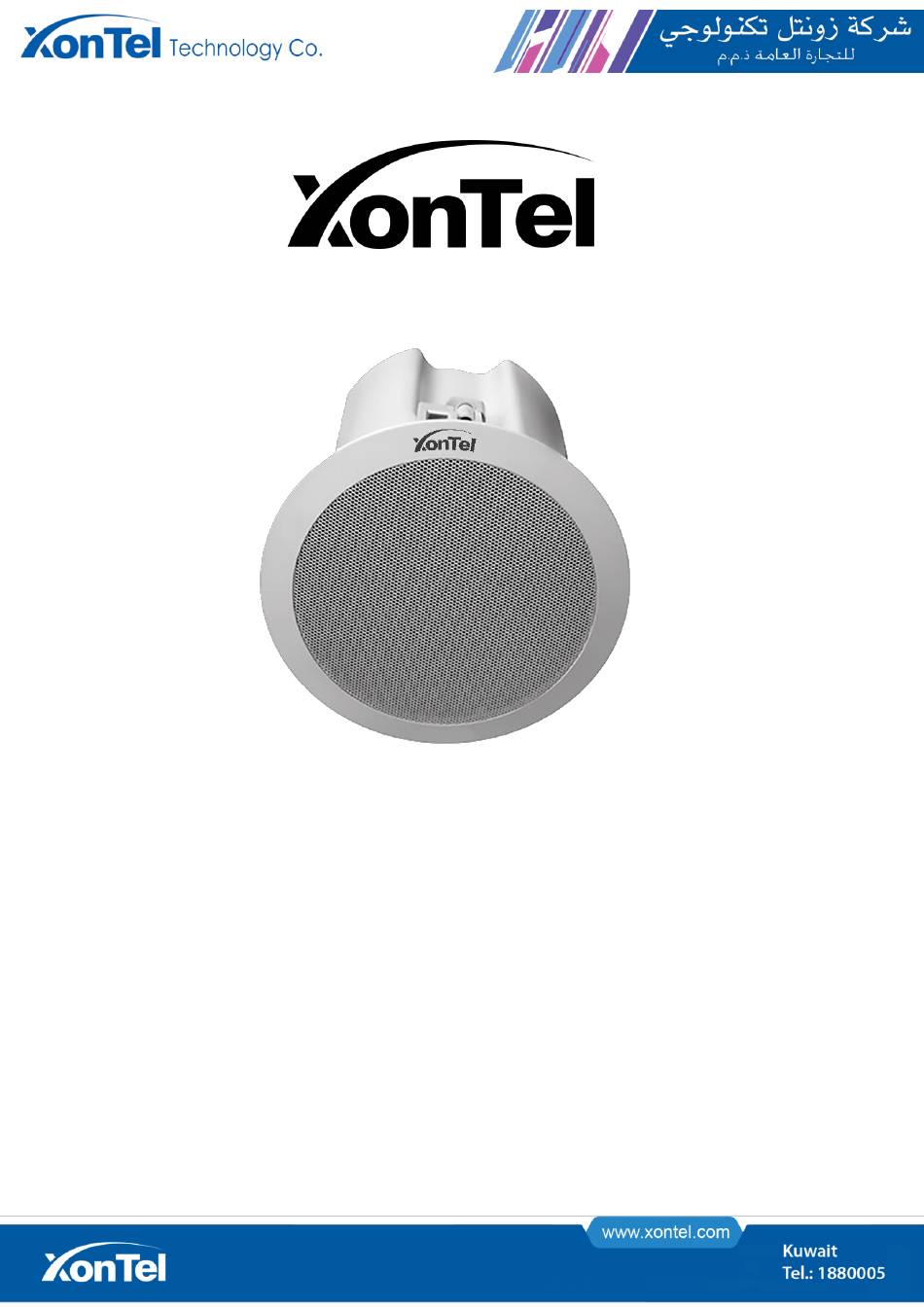

- Page 1 XT-20P Ceiling SIP IP Speaker...
-
Page 2: Table Of Contents
Contents Summary ........................................... 3 Safety Precaution ......................................3 Product Introduction......................................4 Interface Description ......................................4 Introduction ........................................5 Packing List ........................................5 Wiring ..........................................6 User-define Terminal Parameters ................................6 Login Webpage ......................................... 6 Running Status ........................................7 Network Parameter ......................................8 Server Parameter ...................................... -
Page 3: Summary
Summary Safety Precaution • Read the safety precaution carefully before installing or using. •Please abide by the warning and the relevant safety tips. Please put this manual in convenient place for future reference. Warning This symbol means there are potential safe troubles, it may cause death or serious injury with incorrect operation. This symbol used to remind the user that this device attached the important operation and maintenance instructions. -
Page 4: Product Introduction
Product Introduction IP network ceiling speaker embedded IP Audio Digital Network audio technology with independent intellectual property rights. It can accept broadcasting initiated by other terminals and servers and support function settings through browser. With Circuit fault detection function, it can detect the working status of the horn and display on the server software. ⚫... -
Page 5: Introduction
Introduction Packing List IP ceiling speaker is including the following fittings, please check the fittings before the installation, if any missing, please contact the distributor. (1) IP ceiling speaker 1 pcs (2) Waterproof connector 1 pcs (3) Wiring terminal （3.81-2P）1 pcs (4) Wiring terminal （3.81-4P）1 pcs (5) Power adapter（24V/1A）... -
Page 6: Wiring
Wiring Wiring method 1: Wiring method 2: Note: POE switcher can not be connected, when using power adapter. Basic Network Settings Enter into the webpage of IP ceiling speaker, and then modify all the parameters according to the live environment. After finishing, click “save”. -
Page 7: Running Status
(2)Enter the username and password to log in. Note: Default username and password are both admin. (3)Press login to enter IP ceiling speaker web page. (Note: If the relevant parameter modification in the web page does not take effect after saving, please clear the cache and set them again.) Running Status When login to the web page, click “Running Status”, it will show the information of: Terminal ID, server IP, server port, device... -
Page 8: Network Parameter
Network Parameter Please set the terminal’s network parameters according to the environment of the terminal. Click [save] after setting, the parameters will take effect after reboot. The relevant Settings of network parameters are as follows: The IP address of the device, the factory default IP is 192.168.1.101, which cannot Terminal IP be duplicated with other terminals. -
Page 9: Server Parameter
Server Parameter IP ceiling speaker support with SIP protocol and NAS protocol, you can choose the transport protocol based on the actual server you log in to. SIP Protocol The default is SIP protocol. If the device is logged into the NAS (intercom) protocol server, you need to select the NAS protocol here, please refer to the NAS protocol setting introduction for specific parameter settings. - Page 10 NAS Protocol The relevant Settings are as follows: Transport Protocol Setting the protocol for normal communication between device and sever. Unique number to identify the terminal and cannot be duplicated with terminals or Terminal ID other hosts. Local port Configure the local port according to the actual situation; the default is 5060. IP address of the NAS server that the terminal logs in to.
-
Page 11: Audio Parameter
Audio Parameter Set the audio related parameters of the device, Click [save] after setting, the parameters will take effect after reboot. The relevant Settings are as follows: Broadcast output volume The total volume of audio input by the device during broadcasting, range: 0-15; When enable it, if the real-time noise of the device is less than or equal to the Audio Check average noise, the server will pop up the window to display the fault... -
Page 12: Alarm Options
Alarm options Reserved. Multicast Set whether to enable multicast or not. Support up to 10 multicast addresses as maximum. Parameters as following: Set whether to enable multicast function or not. In the case where there are multiple servers in the LAN, different servers must fill in different addresses and port numbers when they initiate multicast Multicast function broadcasts without interference. -
Page 13: System Settings
Beep Sound Set whether to enable the broadcast prompt tone or not. System Settings Reboot the device: Click on this button will reboot the device. Default: Click this button and all parameters of the device will be restored to factory Settings (please use with caution) Language Settings You can change the language in this page. -
Page 14: Time To Restart
Time To Restart After this function is enabled, you can set the time for restarting the device every day. The default value is disabled. -
Page 15: Protocol Settings
Protocol Settings ICMP: You are advised to disable ICMP when using the new IP configuration tool to configure network parameters. FTP: Set whether to enable FTP remote file transfer function. The default value is disable. TELNET: Set whether to enable the TELNET remote login function. The default value is disable. User Management You can change the password for logging into the WEB in this page. -
Page 16: Upgrade
Upgrade Click the "Upgrade" button, you will enter the firmware upgrade mode after 15 seconds. Click on "Select file", select the upgrade file provided by the manufacturer, and click "Start upload" to start the upgrade. Note: Do not power off during the upgrade process, otherwise the upgrade may fail and the device fails. Finally, click reboot and back to normal settings. -
Page 17: Fault Exclude
Fault Exclude Why the terminal cannot login the server? 1).Check the software server and the main controller is normal opened or not. It`s required to close all firewall before open the software server (including system built-in firewall and other antivirus software firewall). 2).Check the network connection is normal or not. -
Page 18: Copyright Statement
Copyright Statement Copyright The copyright is reserved of the XonTel Technology Co., LTD, if without the permission of the company in written form, any company and personage shall not arbitrarily excerpt, copy mentioned file information, and shall not spread in any forms.
