CYBEX VR3 Dip Chin Owner's Manual page 9

The dimensions stated in the assembly instructions of this manual include the maximum foot print (in
use) dimensions.
Area is not in the vicinity of high humidity, such as in the vicinity of a steam room, sauna, indoor
•
pool or outdoors. This unit is designed to function normally in an environment with a relative
humidity range of 30% to 75%.
Exposure to extensive water vapor, chlorine and/or bromine could adversely affect the electronics as
well as other parts of the unit.
Area maintains an ambient temperature range of 50° F (10° C) to 104° F (40° C) degrees.
•
Tools Required
• 7/32" Allen wrench
• 1/8" Allen wrench
• Medium weight automotive engine oil
• Torque wrench
• 3/4" Wrench
Assembly Procedure
Two people will be required for this procedure.
Read and understand all instructions thoroughly before assembling this unit. Check all items
carefully. If there is damage, see the Customer Service section of this manual for proper procedure to
return, replace, or reorder parts.

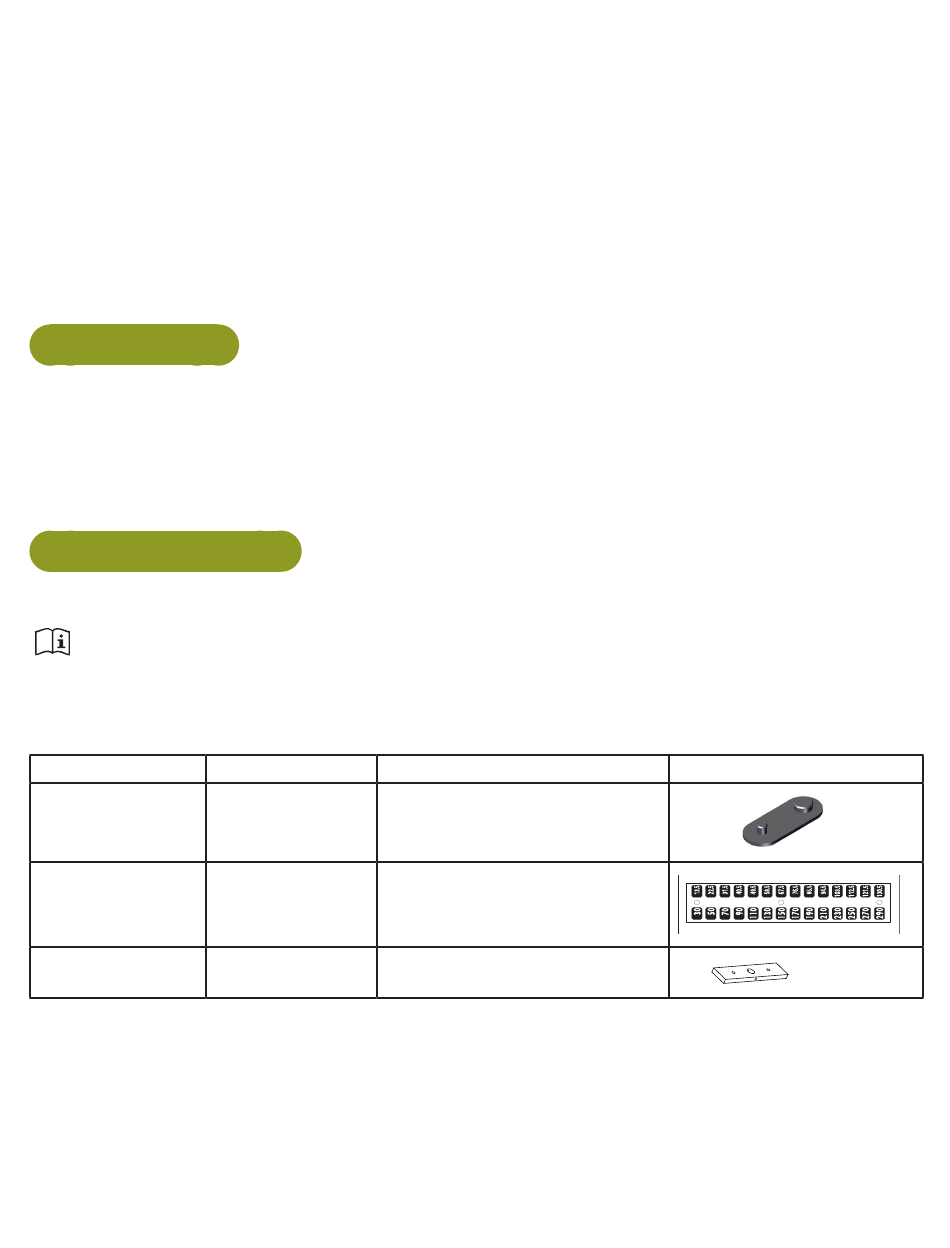

Verify parts list shown below
Qty
7
1
14
Cybex Owner's Manual
Part Number
12090-322
12000-560
4000C101 Weight Stack Plate (Standard)
Description
Foot Pad
Decal, Weight Plate
(30-290)
9
Diagram
NOTES:
1. RIGHT HAND SIDE - 40 POINT HELVETICA BOLD.
HORIZONT AL SCALE 80%.
MATERIAL: EXCEPT AS NOTED
TRACKING -50.
DIMENSIONS REMOVE ALL BURRS
IN INCHES BREAK SHARP EDGES
.005/.010 R
2. LEFT HAND SIDE - 48 POI NT FUTURA CONDENSED BOLD. THIS NOTE REFERS TO ALL PLASTIC PARTS GENERAL TITLE:
AND ASSEMBLIES CONTAINING PLASTICS. DECAL, WT PLATE (30 - 290)
TOLERANCES: SURFACE FINISH
RAW MATERIAL AND COMPONENTS ON INDICATED PER
SUB-ASSEMBLIES AND ASSEMBLIES MUST 2 DECIMALS ± .03
3 DECIMALS ± .015 ANSI B46.1-1985 DWG. BY DATE
COMPLY WITH EUROPEAN DIRECTIVE REL 9/14/05
RoHS 2002/95/EC. ANGLES ± 1° REMOVE CARBURIZATION
AND SCALE FROM LASER
FINISH: FEATURES SHOWN AND PLASMA CUT EDGES CHECKED BY DATE
PERPENDICULAR OR
125
PARALLEL SHALL BE GENERAL SIZE SCALE SHEET DWG. NO.
SO WITHIN ± 1° MACHINING B 1:1 2 2
OF
OWATONNA
TECH. PUBS. APPR. DATE
BB 9/16/05
MFG. APPR. DATE
12000-560 REV.
