CYBEX VR3 Dip Chin Owner's Manual page 13

3. Slide belt through slot in belt clamp.
4. Verify belt and insert are installed properly. Do not install the insert backwards.
5. Pull belt through clamp until input arm measures 31" from floor. Measure from floor to lower
edge of caution decal (located on foot bar).
6. Pull belt tight and secure belt to clamp with the two set screws.
7. Torque set screws 300-350 lb-in.
8. Place weight stack pin in each plate to verify proper installation.
9. Simulate normal operation by lifting top weight up and down with out selecting any
resistance.
10. Verify that the belt is moving smoothly and is routed straight from the top pulley bracket to the
the weight belt clamp.
11. Turn the Increment Weight Adjusting Knob to select 0 lbs or 0 kg.
Install back shroud
1. Place shroud into position.
2. Starting at the bottom replace the two BHSCS to secure bottom support bracket to the
shroud.
3. Install but do not tighten remaining BHSCS securing shroud.
4. Tighten all BHSCS.
Cybex Owner's Manual

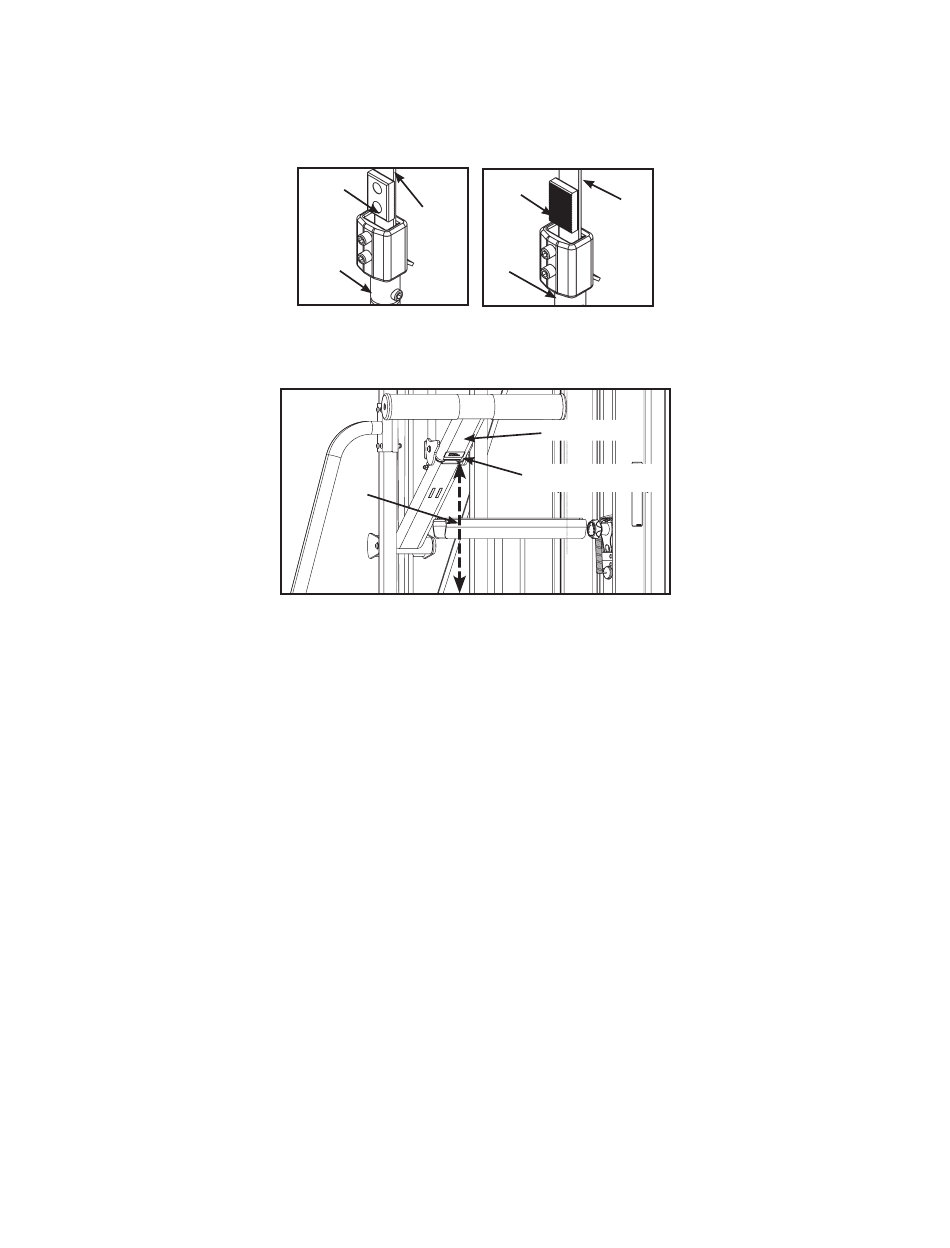

Correct belt routing
Insert
Belt
Stem
31"
13
Wrong belt routing
Insert
Belt
Stem
Foot Bar
Caution Decal
