Strength systems

Advertisement

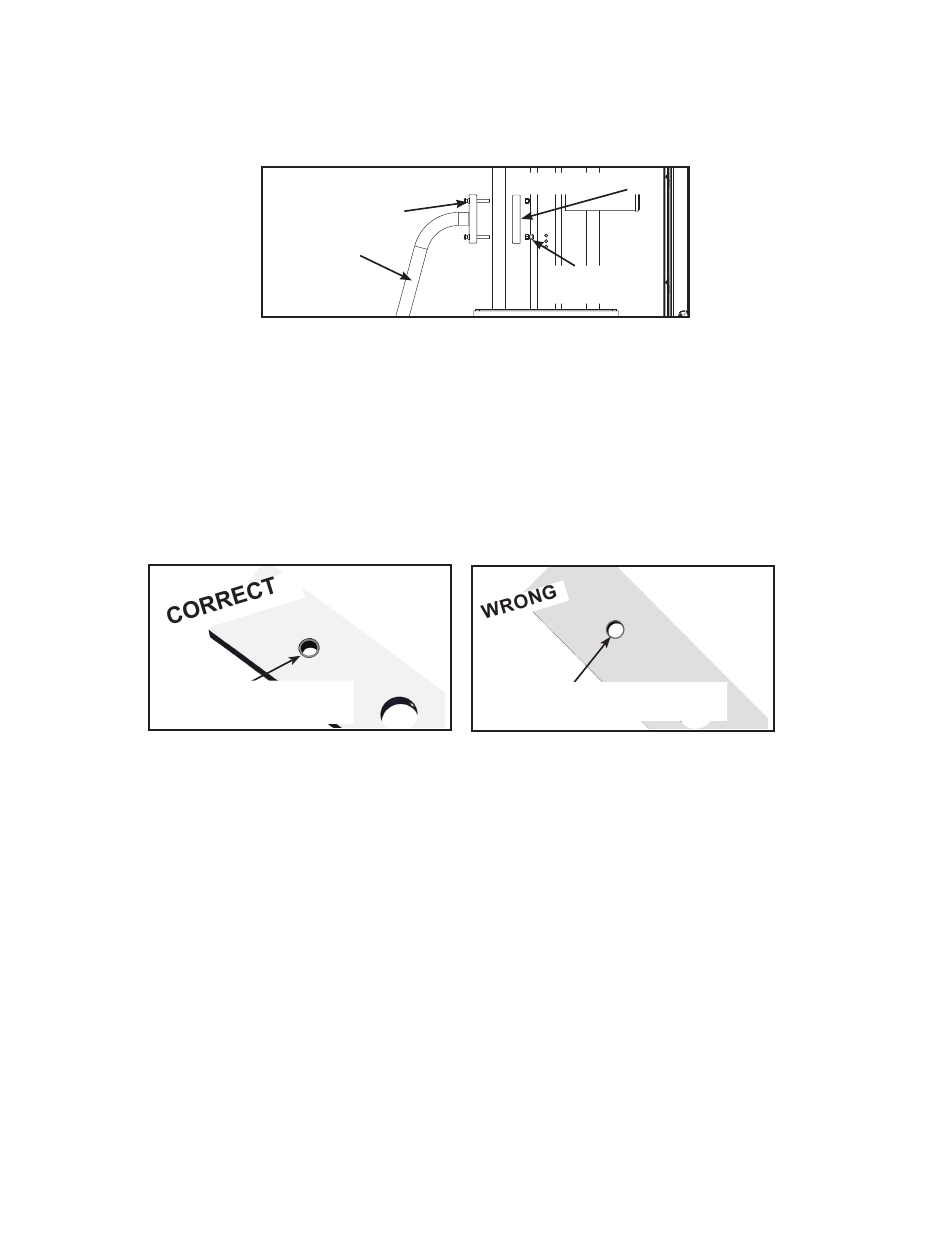

Install support leg
1. Align holes of support leg with holes on frame. Push BHSCS (supplied in kit) through holes of
support leg and frame.
2. Place lower bracket on BHSCS from step.
3. Place locknuts on BHSCS and securely tighten with a 9/16" wrench and 7/32" Allen wrench.
Install weight plates
1. Install individual weight plates one at at time.
2. Position each weight plate so wide edges of bushings face upward and narrow edges of
bushings face downward.
Wide bushing
edge faces upward
3. Install lifting post.
4. Place springs and guide rod caps on guide rods.
5. Compress guide rod caps and align guide rod caps with weight frame holes and secure in
place.
6. Guide rod caps must snap or lock into weight frame holes.
Belt routing
1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top
weight.
2. Lift top weight and verify that the position of the belt clamp (on the top weight) is aligned
properly with the top pulley bracket.
Cybex Owner's Manual
BHSCS .375-16 x
2.50 (4)
Support Leg
Lower Bracket
Locknut (4)
The narrow bushing edge
must face downward.
12
