Data sheet | Solenoid valves, type EV250B, dezincification resistant brass

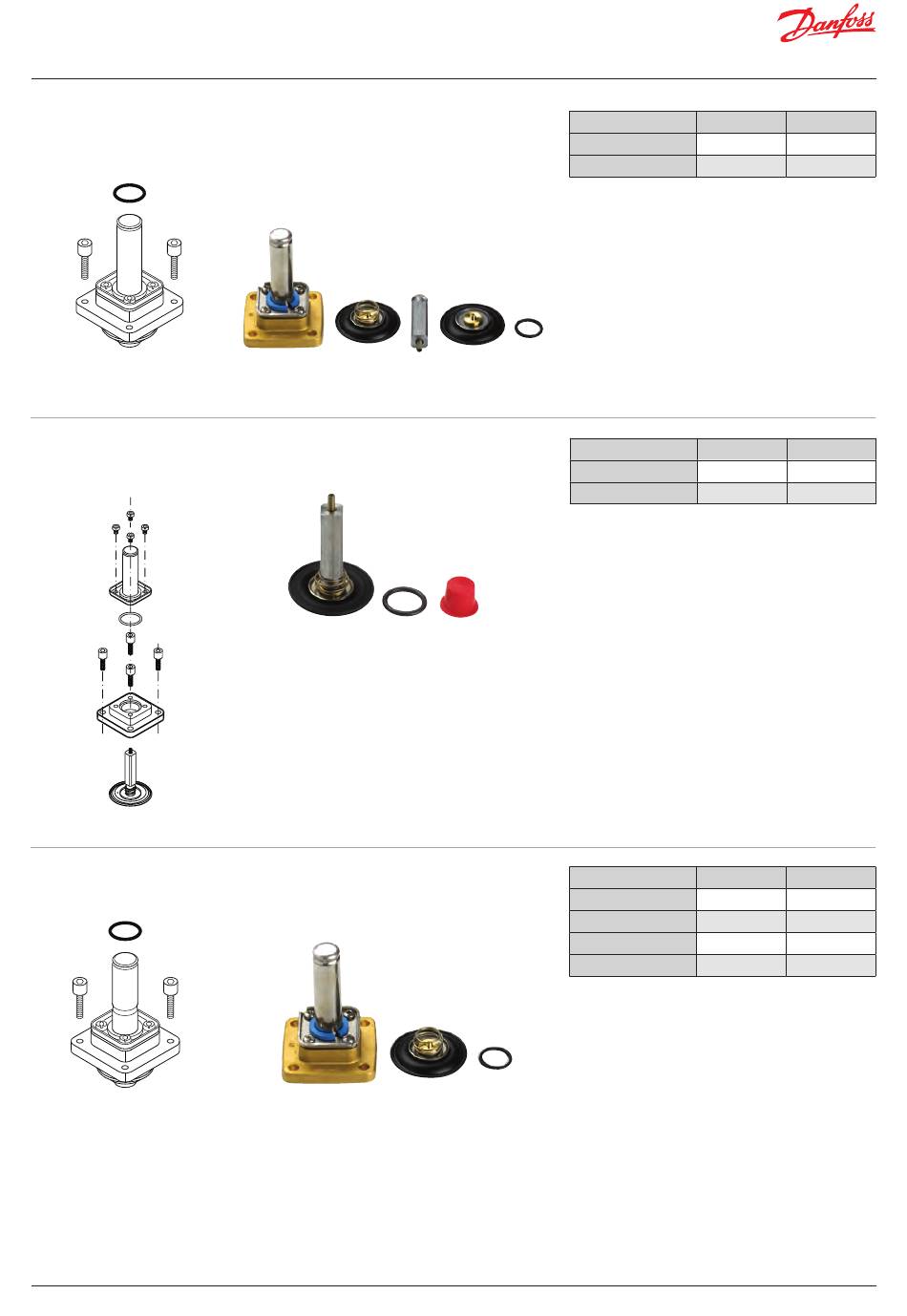

Spare parts kit for NC
EPDM seal material
Spare parts kit for NC
FKM seal material
Spare parts kit for NO
© Danfoss | DCS (az) |2017.06
For valve type Seal material
EV250B 10 - 12BD EPDM
EV250B 18 - 22BD EPDM
The spare parts kit comprises:
O-ring for coil
4 screws
Complete NC actuator unit with:
Diaphragm
Assist spring
Armature
Closing spring
Cover
Armature tube
For valve type Seal material
EV250B 10 - 12BD FKM
EV250B 18 - 22BD FKM
The spare parts kit comprises:
O-ring
Service element consisting of an armature with:
Valve plate
Spring fitted on the diaphragm
For valve type Seal material
EV250B 10 - 12BD EPDM
EV250B 10 - 12BD FKM
EV250B 18 - 22BD EPDM
EV250B 18 - 22BD FKM
The spare parts kit comprises:
O-ring for coil
4 screws
Complete NO actuator unit with:
Diaphragm
Assist spring
NO armature unit and cover
Code number
032U5315
032U5317
Code number
032U5271
032U5273
Code number
032U5319
032U5320
032U5321
032U5322
IC.PD.200.H7.02 | 7
