Supplementary pump

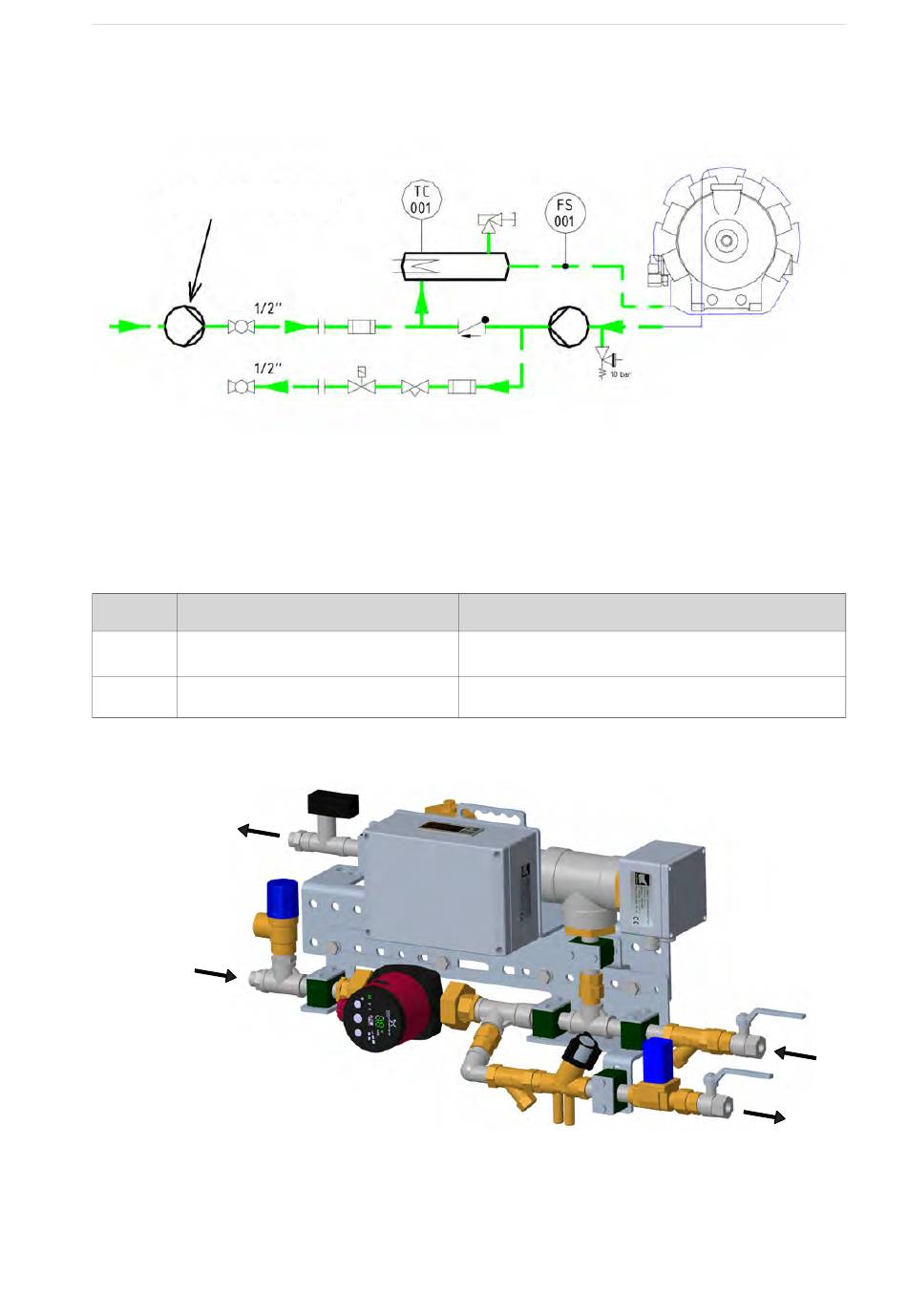

Fig. 4
On the circulation side, the system must be connected to the compressor cooling hoses by the
two provided cooling hoses. The two provided hoses are of a length allowing them to be cut to
the length required.
Quantity Part no.
1 3185.1000
See the compressor spare parts
1
manual
To compressor
From compressor
Fig. 5

Pressure testing

The system is not pressure tested on delivery.
Max. test pressure: 10 bar.
Description
Set of connecting hoses
(WHC – Compressor)
Set of hoses for compressor block
Installation and operating manual - Sabroe WHC circulation system
10/17
Mounting and connections
Inlet
Outlet
