Design and function
• The WHC controller receives a start signal from the compressor. The start signal
changes the set point for the water temperature, so it is possible to have a higher water
temperature at standstill (heating) and a lower temperature in operation (cooling).
• The WHC controller only allows the compressor to start and run if the water flow (
Fig. 1, pos. FS001) and temperature (Fig. 1, pos. TC001) is OK. The minimum operat-
ing temperature is 35°C and maximum is 85°C.
The system has a total output of 1100 W.
1 2
3
31
30
29
28
3
12
27
6
14
23
24
26
25
24
23
19
12

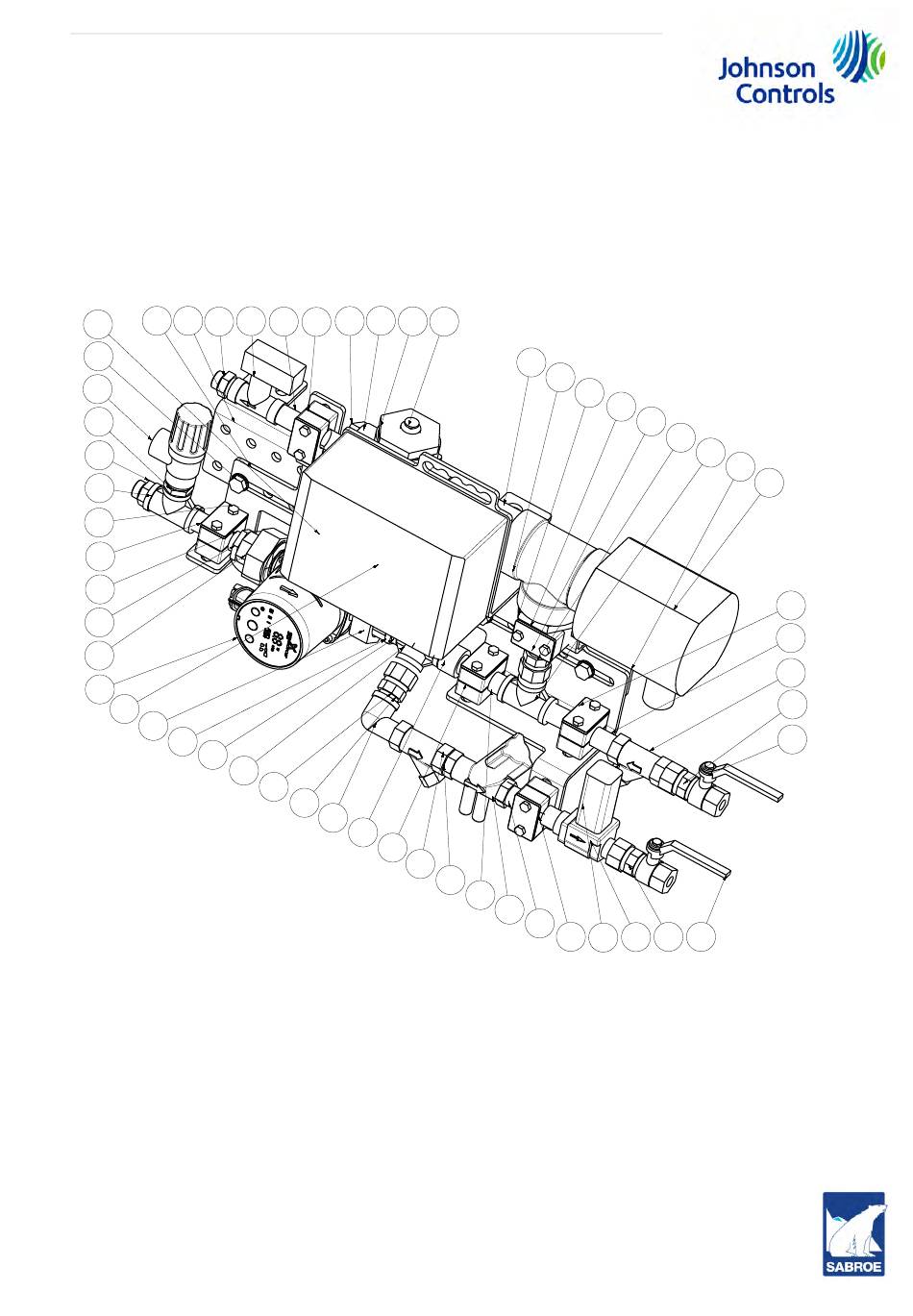

Fig. 2: The WHC system (without hoses), part no. 3446.1004.
Installation and operating manual - Sabroe WHC circulation system
