6.7 Pump performance

If the recommended pump setting does not give the desired distribution of heat in the rooms of the house, change the pump setting to the
shown alternative.
Relation between pump setting and pump performance.
Figure 18 shows the relation between pump setting and pump performance by means of curves. See also section
curves.

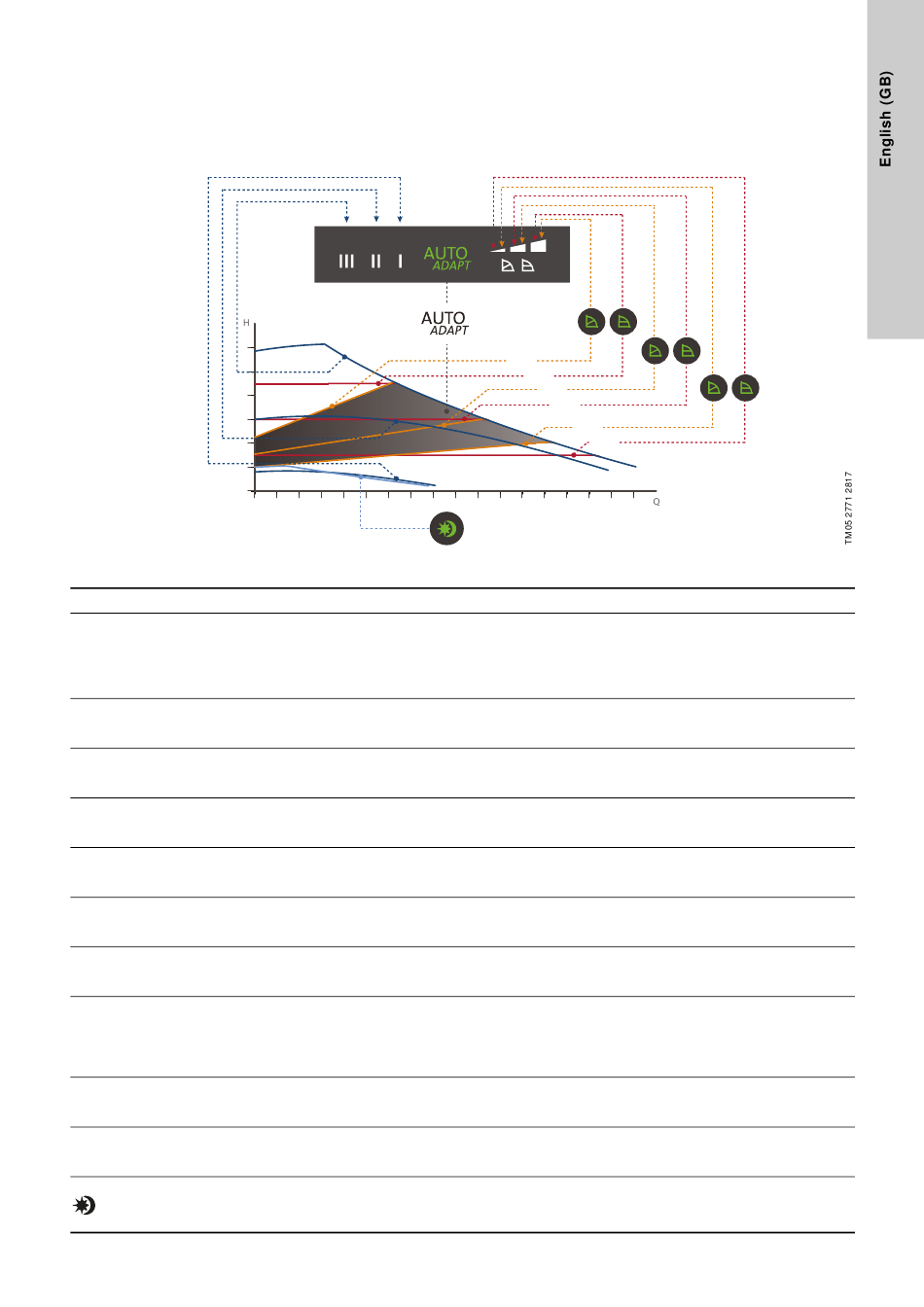

Fig. 18 Pump setting in relation to pump performance
Setting Pump curve
AUTO Highest to lowest
ADAPT
factory proportional-pressure
setting curve
Lowest
PP1 proportional-pressure
curve
Intermediate
PP2 proportional-pressure
curve
Highest
PP3 proportional-pressure
curve
Lowest
CP1 constant-pressure
curve
Intermediate
CP2 constant-pressure
curve
Highest
CP3 constant-pressure
curve
III Speed III
II Speed II
I Speed I
Automatic night
setback or manual
summer mode
I
Function
The AUTO function enables the pump to control the pump performance automatically
ADAPT
within a defined performance range. See fig. 18.
• Adjusting the pump performance to the size of the system.
• Adjusting the pump performance to the variations in load over time.
In AUTO , the pump is set to proportional-pressure control.
ADAPT
The duty point of the pump will move up or down on the lowest proportional-pressure curve,
depending on the heat demand. See fig. 18.
The head is reduced at falling heat demand and increased at rising heat demand.
The duty point of the pump will move up or down on the intermediate proportional-pressure
curve, depending on the heat demand. See fig. 18.
The head is reduced at falling heat demand and increased at rising heat demand.
The duty point of the pump will move up or down on the highest proportional-pressure curve,
depending on the heat demand. See fig. 18.
The head is reduced at falling heat demand and increased at rising heat demand.
The duty point of the pump will move out or in on the lowest constant-pressure curve, depending
on the heat demand in the system. See fig. 18.
The head is kept constant, irrespective of the heat demand.
The duty point of the pump will move out or in on the intermediate constant-pressure curve,
depending on the heat demand in the system. See fig. 18.
The head is kept constant, irrespective of the heat demand.
The duty point of the pump will move out or in on the highest constant-pressure curve, depending
on the heat demand in the system. See fig. 18.
The head is kept constant, irrespective of the heat demand.
The pump runs on a constant curve which means that it runs at a constant speed.
In speed III, the pump is set to run on the maximum curve under all operating conditions. See
fig. 18.
You obtain quick venting of the pump by setting the pump to speed III for a short period. See
section 4.3 Venting the pump.
The pump runs on a constant curve which means that it runs at a constant speed.
In speed II, the pump is set to run on the intermediate curve under all operating conditions. See
fig. 18.
The pump runs on a constant curve which means that it runs at a constant speed.
In speed I, the pump is set to run on the minimum curve under all operating conditions. See
fig. 18.
The pump changes to the curve for automatic night setback, provided that certain conditions are
met.
PP3
CP3
PP2
CP2
PP1
CP1
III
II
