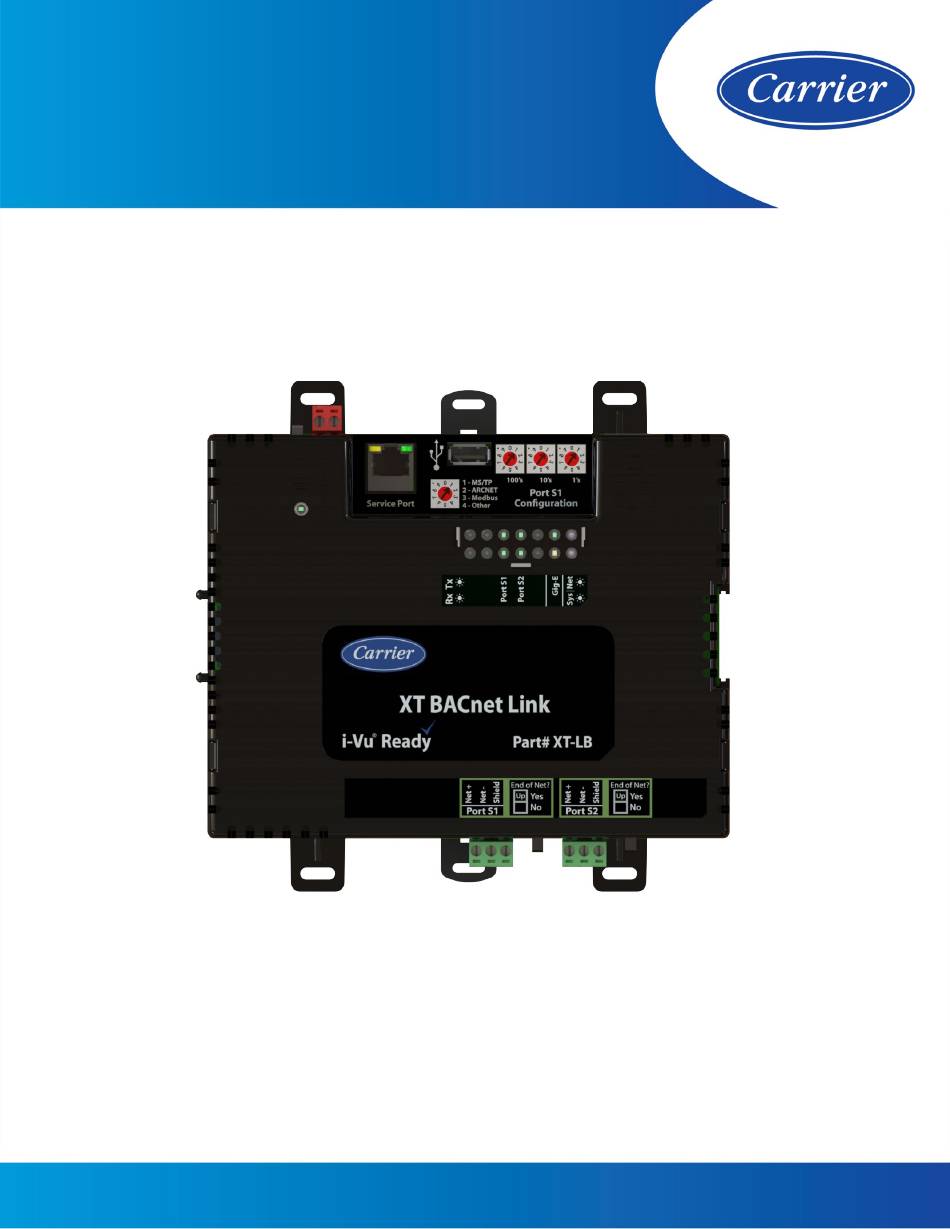

Carrier XT BACnet Link Integration Manual

Knx integration for truvu controllers

Hide thumbs

Table Of Contents

Quick Links

Download this manual

KNX Integration Guide

For TruVu™ controllers (drv_gen5)

Table of Contents

Need help?

Do you have a question about the XT BACnet Link and is the answer not in the manual?

Questions and answers

Summary of Contents for Carrier XT BACnet Link

Page 2 Verify that you have the most current version of this document from www.hvacpartners.com, the Carrier Partner Community website, or your local Carrier office. Important changes are listed in Document revision history at the end of this document. ©2024 Carrier. All rights reserved.
Page 3: Table Of Contents
3 Download the driver and control programs....................8 4 Set up the KNX driver properties ......................9 5 Connect the Carrier controller to the third-party device ................11 6 Verify the integration is set up correctly ....................12 To capture communication using Wireshark .................... 14 Appendix A - Error codes and messages ....................15...
Page 4: Overview
Overview You can use Carrier TruVu™ controllers to integrate KNX device(s) with your i-Vu® system. The controller communicates via IP with a KNX/IP interface or router (generically referred to as “KNX/IP adapter” in the rest of this document) to read and write KNX data points.
Page 5: Before-You-Begin Checklist
Points lists are usually available from the third-party manufacturer’s representative or website.  Verification that all communication properties have been set on the KNX adapters.  Verification of Ethernet communication with each KNX/IP adapter to which the Carrier controller connects  Experience creating control programs in the Snap application ...
Page 6: The Integration Process
The integration process Follow the steps in this document to integrate one or more third-party KNX devices into an i-Vu® system using a Carrier controller. To install and network the Carrier controller, see the controller’s Installation and Start-up guide. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier.
Page 7: Add The Knx/Ip Adapters To Your Network
• A KNX/IP interface is used to provide an IP tunnel between a KNX bus and an Ethernet network. It allows the Carrier controller on the same network to communicate with the devices on the KNX bus. • A KNX/IP router offers the same functions as the IP interface, and also provides the functionality of an “area coupler”...
Page 8: Create A Control Program In The Snap Application
When integrating third-party devices into the i-Vu® system, most communication problems are caused by incorrect data or typing errors in the microblock's Address field.    Address format: knx://Data type index/Flags/Group address/IP Address/Port/Data Secure File ID EXAMPLE:    knx://3/TPUE1/1.1.1/192.168.1.1/3671/0 KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 9 This is required only for data types made up of multiple values. For example, for data type B1U3, add E1 to the Flags field to retrieve the binary value, or E2 to retrieve the unsigned value. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 10: Editing A Microblock Address
In the i-Vu® interface, on the microblock's Properties page > Details tab • In the i-Vu® interface, on the control program's Properties page > Network Points tab KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 11: Download The Driver And Control Programs
On the Network tree, assign the equipment to the controller by dragging each equipment from the Geographic tree and dropping it on the controller in the Network tree. Click In the i-Vu® interface, download the driver and control programs to the Carrier controller. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier.
Page 12: Set Up The Knx Driver Properties
Gig-E Port tab. This is the network interface that listens for multicast messages. Points defined with the Tunneling [T] flag do not use this property. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 13 On the i-Vu® Network tree, select the controller and Upload parameters from the controller. If you used the controller's driver pages on the i-Vu® Network tree, select the controller and Download parameters to the controller. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 14: Connect The Carrier Controller To The Third-Party Device
5 Connect the Carrier controller to the third-party device Use CAT5 or higher Ethernet cables to connect the controller and the KNX/IP adapters to a hub or switch on your network. Maximum cable length: 328 feet (100 meters) Turn off the Carrier controller's power.
Page 15: Verify The Integration Is Set Up Correctly
6 Verify the integration is set up correctly On the i-Vu® navigation tree, select the control program for the Carrier controller. Select the Properties page > Network Points tab. If... Then... You see the point value you You have successfully established communication with the third-party device.
Page 16 Press Ctrl+C to copy the information, then open Notepad and paste the information into a text file. • Installation and Start-up guide for the third-party device, if available. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 17: To Capture Communication Using Wireshark
Disconnecting the KNX/IP adapter from the network and plugging its cable into the hub/TAP. ○ Configuring the mirroring port on your switch to mirror the port the Carrier controller is connected to. ○ Connect the Ethernet port of the computer running Wireshark to the hub/TAP/port mirror.
Page 18: Appendix A - Error Codes And Messages
(in particular, check the Group Address). Also, in the ETS project, check that the read operation has been enabled for the given Group Address. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 19: General Error Codes
If this error is persistent, contact Technical Support to Invalid MB State let them know there is a defect to address. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 20 Ensure that the device hosting the object, in which the microblock is Temporary Backoff addressed to, is powered on and functioning properly. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 21: Appendix B - Supported Data Types
DPT_AlarmInfo 221.001 N16U32 DPT_SerNum 202.xyz U8Z8 DPT_RelValue_Z, DPT_UCountValue8_Z 203.xyz U16Z8 DPT_TimePeriodMsec_Z, DPT_UFlowRateLiter/h_Z, … 204.001 V8Z8 DPT_RelSignedValue_Z 205.xyz V16Z8 DPT_DeltaTimeMsec_Z, DPT_TempHVACAbs_Z, … 217.001 U5U5U6 DPT_Version KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 22 234.xyz A8A8 DPT_LanguageCodeAlpha2_ASCII, DPT_RegionCodeAlpha2_ASCII 235.001 V32U8B8 DPT_Tariff_ActiveEnergy   236.001 B1N3N4 DPT_Prioritised_Mode_Control 238.xyz B2U6 DPT_SceneConfig, DPT_DALI_Diagnostics 239.001 U8R7B1 DPT_FlaggedScaling 255.001 F32F32 DPT_GeographicalLocation 22.xyz DPT_StatusDHWC, DPT_Media, … KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 23: Appendix C - Knx Data Secure Comissioning
Project Details, then click Security. Select all secure devices that will be connected to a single KNX/IP adapter, then click Backup Keyring. Enter Keyring password. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 24 Their values are changed when the device sends a change of status event. Example: knx://10/T/1.0.4/169.135.66.153.3671/1 where the "1" at the end of the URL indicates you are using Data Secure with Keyring File 1. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 25: Appendix D - Configuring The Driver Parameters By Using The Service Port
For more information on connecting to the Service Port, see the "Connecting to the router through the Service Port" and the "Connecting to the router through the Gig-E Port" sections of the controller's Installation and Start-up guide. KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 26: Appendix E - Module Status Field Descriptions
Number of data packets transmitted and received by the  integrator Number of timeouts that occurred when attempting to read or  write to a third-party device KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
Page 27: Document Revision History
Important changes to this document are listed below. Minor changes such as typographical or formatting errors are not listed. Date Topic Change description Code* No updates yet * For internal use only KNX Integration Guide Carrier Proprietary and Confidential ©2024 Carrier. For TruVu™ controllers (drv_gen5) All rights reserved.
