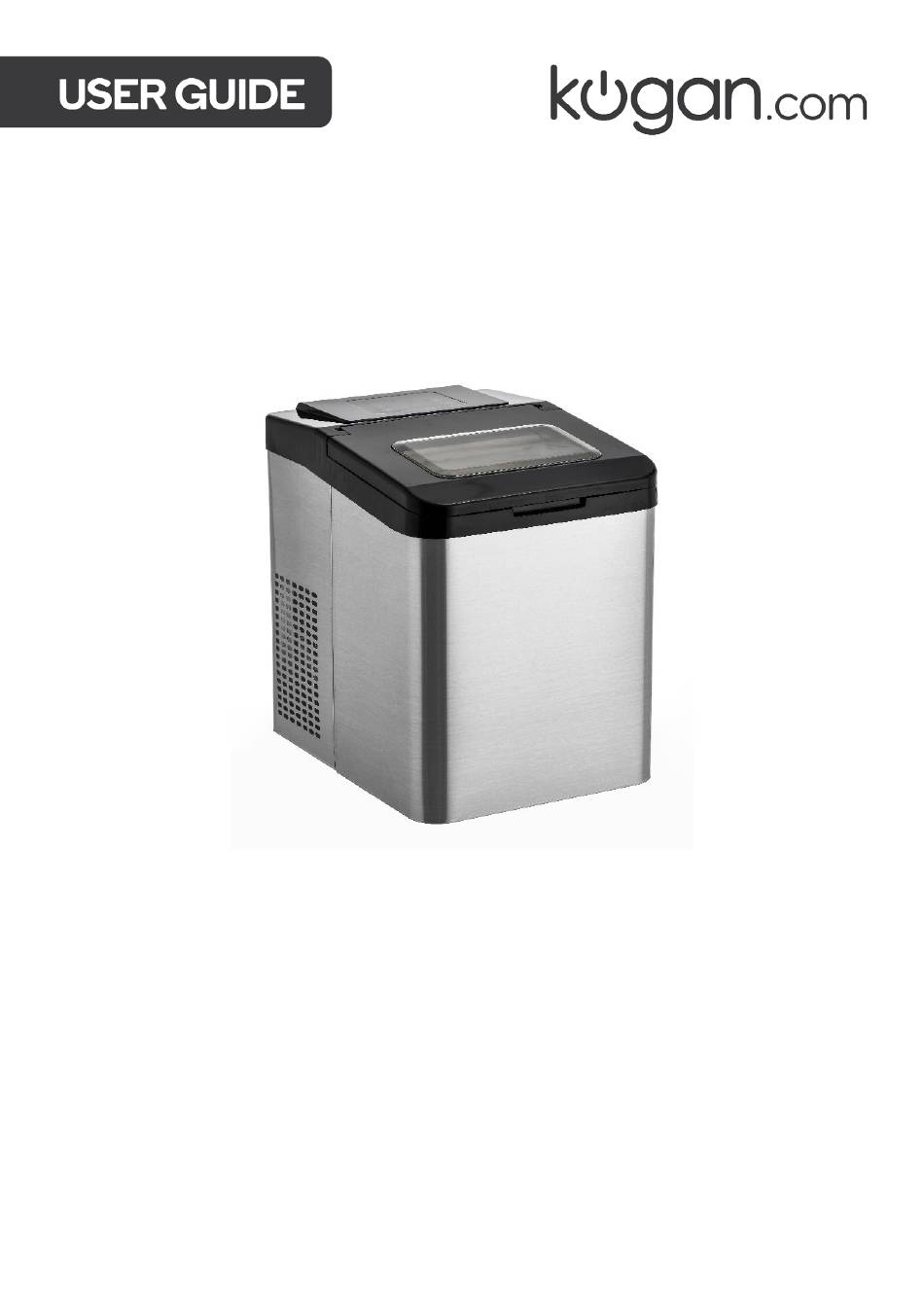

- Page 1 25KG ICE CUBE MAKER (STAINLESS STEEL) KA25CICEMKA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Operation Cleaning & Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
Warnings • Do not use methods to accelerate the defrosting process or cleaning methods other than those recommended by Kogan.com. Store the device in a place free from continuous ignition sources (e.g., open flames, operating gas appliances, or electric heaters). - Page 4 • Any person working on or entering the refrigerant circuit must hold a valid certificate issued by an industry-recognized assessment authority, authorizing them to handle refrigerants safely. • Only carry out repairs in accordance with the equipment manufacturer's recommendations. Maintenance requiring the assistance of other technicians should be conducted under supervision if using flammable refrigerants.
-
Page 5: Overview
OVERVIEW Top lid Control panel Water pipe Air outlet Evaporator Water inlet Ice basket Water outlet/drain Ice scoop... - Page 6 Control Panel Timing / Automatic Cleaning button Quickly press this button once and the machine sets the timing button. If the button is pressed and held down for more than 5 seconds, the machine enters the automatic cleaning program. Power button Start or stop the ice making and cancel the cleaning and timing function.
- Page 7 Display Ambient Temperature and Ice Making Countdown Display: When 'M' is displayed, it shows the countdown for ice making time. Ice Making and De-icing Symbols: The ice making symbol rotates during ice production. The de-icing symbol flashes when the machine is in de-icing mode. Automatic Cleaning Symbol: This symbol indicates that the automatic cleaning process is active.
-
Page 8: Operation
Remove cartons, packaging foam, bags, and fixed tape. Check if the instructions, ice basket, and ice scoop are complete. If anything is missing, contact help.Kogan.com service personnel. Ensure the machine's power socket is reliably grounded and connected to 220V 50Hz/10A, within a voltage range of 198V-242V. - Page 9 Adjusting Ice Thickness Adjust the ice thickness using the “+” and “-” buttons on the control panel. The ice making time setting, shown on the lower left of the display screen, is set to “0” by default. Pressing the “+” button increases the ice making time by one minute, resulting in thicker ice cubes.
- Page 10 Timed Startup and Shutdown Function: • Timing Setting: The timing range is 1-24 hours. • Timed Shutdown: Set the machine to shut down at a predetermined time during ice making. • Timed Startup: Set the machine to start up at a predetermined time during standby mode.
-
Page 11: Cleaning & Care
CLEANING & CARE Initial Cleaning Before Use • Open the lid and remove the ice basket and ice spoon. • Add an appropriate amount of warm water to the machine tank. Clean the tank using a neutral detergent and a soft cloth. •... -
Page 12: Specifications
SPECIFICATIONS Climate Type SN /N /ST Security Classification Class 1 Source 220-240V/50Hz Rated Current 1.1A Power Rating 180W Refrigerant / Addition R 290/30g Net Weight 10kg Rough Weight 12kg Hull Metal Plate Dimensions 361 x 286 x 372.5mm TROUBLESHOOTING Problem Possible Cause Solution The water pressure of the... - Page 13 Circulating water pump is It Contact help.Kogan.com for pipe needs professional support. maintenance. blocked Change the water and filter The transparency of the water quality in poor and soften the quality of the ice is poor...
-
Page 14: Notes
NOTES... - Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
