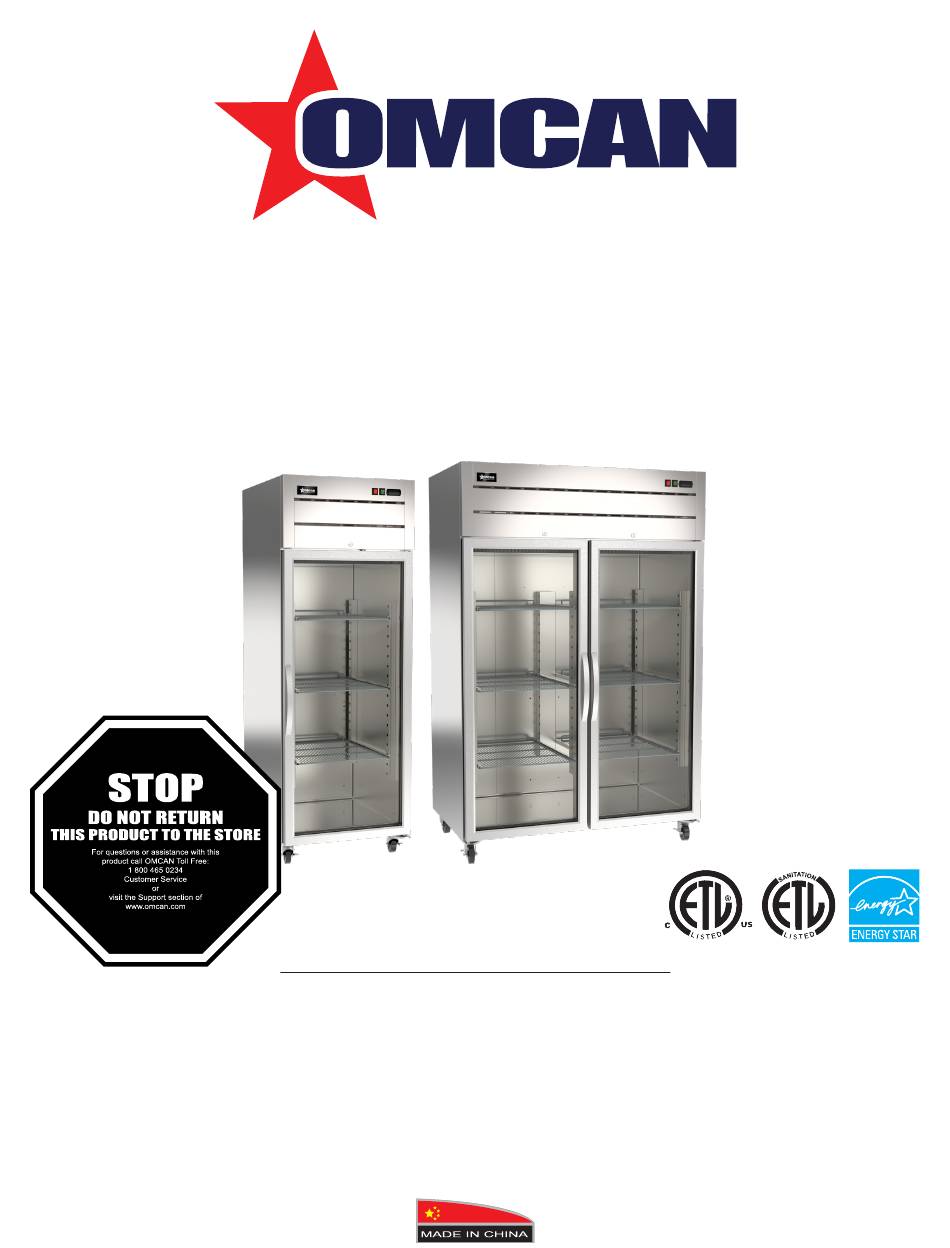

- Page 1 Top Mounted Reach In Glass Coolers Models RE-CN-0029G-TM, 0054G-TM Items 50118, 50119 Instruction Manual Revised - 01/15/2025 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model RE-CN-0029G-TM / Model RE-CN-0054G-TM Section Page Disclaimer ----------------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------------- 5 - 7 Technical Specifications ------------------------------------------------------------------------------- 7 Installation ----------------------------------------------------------------------------------------------- 8 - 9 Maintenance ------------------------------------------------------------------------------------------------- 9 Troubleshooting ----------------------------------------------------------------------------------- 10 - 11... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 2 YEARS PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
-
Page 7: Technical Specifications
Safety and Warranty DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications REACH IN COOLERS Model RE-CN-0029G-TM RE-CN-0054G-TM Item Number 50118 50119 Temperature Range 0.6 - 4.4°C / 33 - 40°F Max Ambient Temp 24°C / 75°F Rating... -
Page 8: Installation
Installation IMPORTANT!!!PLEASE READ BEFORE INSTALLATION • If the unit has recently been transported. Please let unit stand still for a minimum of 24 hours before plugging it in. • Make sure that the unit drops down to desired temperature before loading the unit with product. •... -
Page 9: Maintenance
Installation with the former lower hinge except for the top. Screw the hinges into place. 7. Reassemble the door so it is facing the opposite direction. 8. Reassemble the top panel and the lower louver. 9. The door is now reversed. Maintenance CLEANING THE CONDENSER COIL •... -
Page 10: Troubleshooting
Troubleshooting Before requesting any service on your unit, please check the following points. Please note that this guide serve only as a reference for solutions to common problems. SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Compressor not running. Fuse blown or circuit breaker Replace fuse or reset circuit tripped. - Page 11 Troubleshooting Cabinet temperature Is too warm. Thermostat set too warm. Set thermostat to lower temperature. Blocking air flow. Re-arrange product to allow for proper air flow. Make sure there Is at least four inches of clearance from evaporator. Excessive amount of warm Allow adequate time for product to product placed in cabinet.
-
Page 12: Controller Instructions
Controller Instructions Digital controller model: PJEZ for cooler Display and functions During normal operation, the controller displays the value of the probe set using parameter/4(=1 ambient probe, default, = 2 second probe, = 3 third probe).In addition, the display has LEDs that indicate the activation of the control functions (see table 1), while the 3 buttons can be used to activate/deactivate some of the functions (see table 2). - Page 13 Controller Instructions Table of Functions activated by the buttons - Models S, X, Y, C (Table 2) Button Normal Operation Start Up Pressing the Button Alone Pressed Together More than 3 sec: toggle ON/ Start/Stop ON/OFF continuous cycle Down More than 3 sec: start/stop Pressed For 1 sec.
- Page 14 Controller Instructions 3. Scroll inside the parameter menu using UP/DOWN. • To display/set the values of the parameter displayed, press SET, then UP/DOWN and finally SET to confirm the changes (returning to the parameter menu). To save all the new values and exit the parameter menu, press SET for 3 s. To exit the menu without saving the changed values (exit by timeout) do not press any button for at least 60 s.
-
Page 15: Parts Breakdown
Parts Breakdown Model RE-CN-0029G-TM 50118... - Page 16 Parts Breakdown Model RE-CN-0029G-TM 50118 Item No. Description Position Item No. Description Position Item No. Description Position Blade of Evaporator Fan Motor AT311 Cabinet for 50118 AA197 Lock for 50118 AA962 38, 50 for 50118 Evaporator Temperature Sensor 26247 Castor without Brake for 50118...
- Page 17 Parts Breakdown Model RE-CN-0054G-TM 50119...
- Page 18 Parts Breakdown Model RE-CN-0054G-TM 50119 Item No. Description Position Item No. Description Position Item No. Description Position AT338 Cabinet for 50119 AG464 Control Panel Fixer for 50119 AN130 LED Power Supply for 50119 26247 Castor without Brake for 50119 AA197 Lock for 50119 AM179 LED Power Supply for 50119...
-
Page 19: Electrical Schematics
Electrical Schematics Model RE-CN-0029G-TM 50118... - Page 20 Electrical Schematics Model RE-CN-0054G-TM 50119...
-
Page 21: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 22 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
