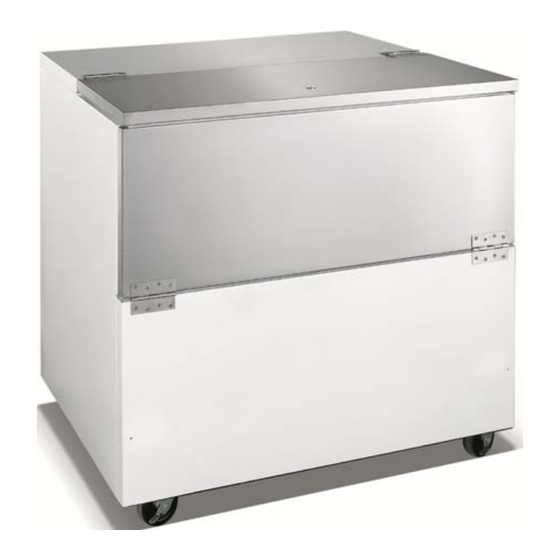

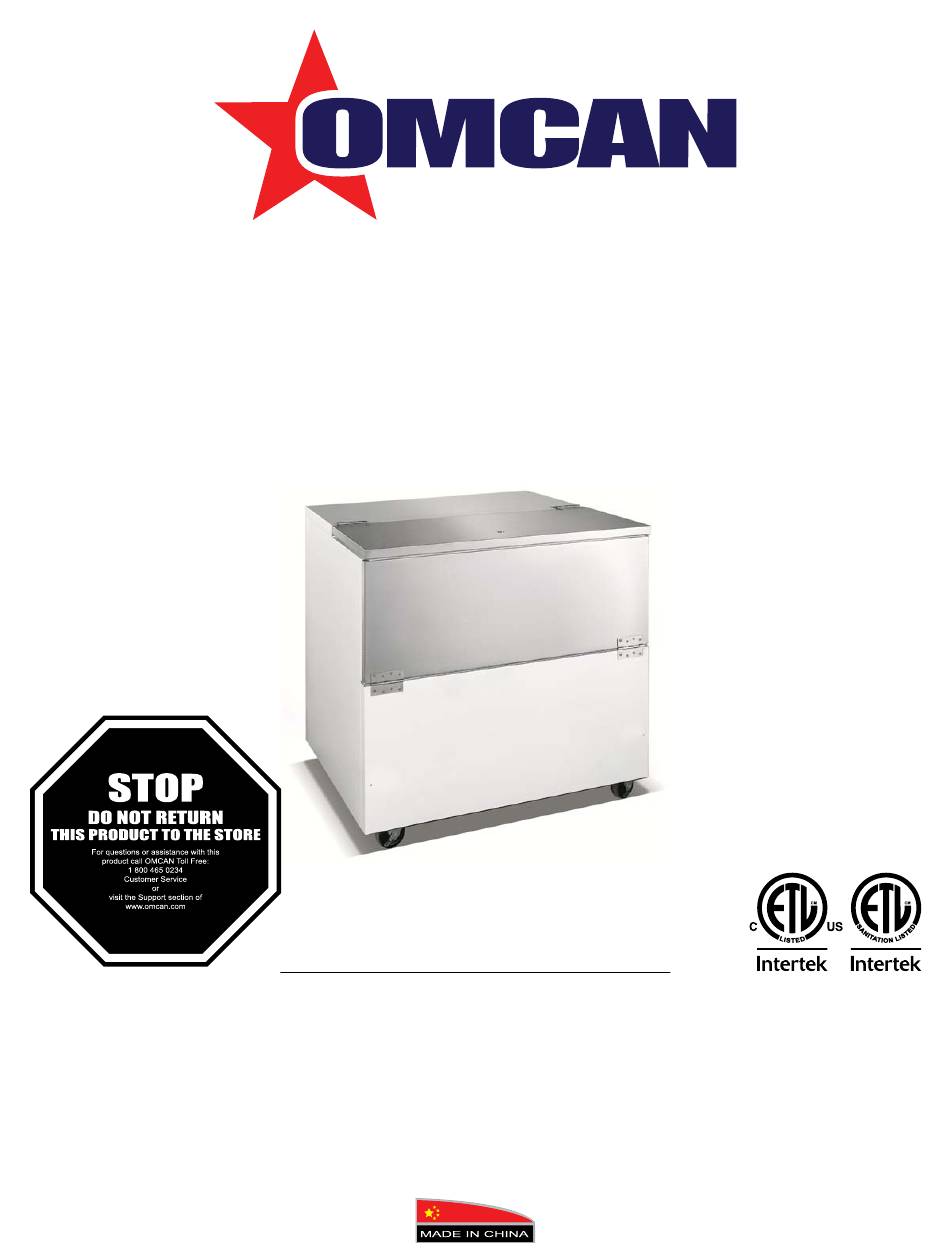

- Page 1 Milk Cooler Model RE-CN-0034-HC Item 50101 Instruction Manual Revised - 09/25/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model RE-CN-0034-HC Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation --------------------------------------------------------------------------------------- 7 - 8 Operation --------------------------------------------------------------------------------------------- 8 Maintenance ----------------------------------------------------------------------------------------- 8 Troubleshooting ------------------------------------------------------------------------------- 9 - 10... -
Page 3: Disclaimer
Disclaimer OMCan Is nOT respOnsIble fOr any DaMages Due TO waTer leaks. warranTy fOr waTer leaks Is vOID If The aMbIenT rOOM TeMperaTure exCeeDs 75°f anD 55% relaTIve huMIDITy, anD The applIanCe DraIn Is nOT COnneCTeD DIreCTly TO a flOOr DraIn. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 7: Technical Specifications
Technical Specifications Model RE-CN-0034-HC Temperature Range 0.5 - 4.4°C / 33 - 40°F Max Ambient Temp Rating 24°C / 75°F Power 240 W Refrigerant R290 Isolation Material Cyclopentane Cooling System Direct Defrosting Automatic Type of Controller Digital Self-Closing Door Current 2.28A... -
Page 8: Installation
Installation ELECTRICAL Check the proposed outlet to be used to insure that the voltage, phase, and current carrying capacity of the circuit from the electrical panel correspond to the requirements of the cabinet. Plug all standard models into a 110 volts A.C.60 cycle outlet. NEVER use an extension cord to power any unit. All inter wiring between the electrical panel and the unit must be done in accordance with the National Electric Code and all state and local codes. -
Page 9: Troubleshooting
Troubleshooting MALFUNCTION POSSIbLE CAUSE SOLUTION Compressor will not start, no hum. Service cord unplugged. Plug in service cord. Fuse blown or removed. Replace fuse. Overload tripped. Determine reasons and correct. Control stuck open. Repair or replace. Wiring incorrect. Check wiring against the diagram. Compressor will not start, hums Improperly wired. - Page 10 Troubleshooting Refrigerated space too warm. Control setting too high. Reset control. Refrigerant overcharge. Purge refrigerant. Dirty condenser. Clean condenser. Evaporator coil iced. Determine reason and defrost. Not operating. Determine reason, replace if nec- essary Standard temperature system Control setting is too low. Reset the control.
-
Page 11: Parts Breakdown
Model re-Cn-0034-hC 50101... - Page 12 Model re-Cn-0034-hC 50101 Item No. Description Position Item No. Description Position Item No. Description Position 26246 Caster with Brake for 50101 AO099 Front Door Gasket - Bottom for 50101 AB595 Filter Fixer for 50101 AO085 Key for 50101...
-
Page 13: Electrical Schematics
Model re-Cn-0034-hC 50101... -
Page 14: Notes
notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 15: Warranty Registration
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
