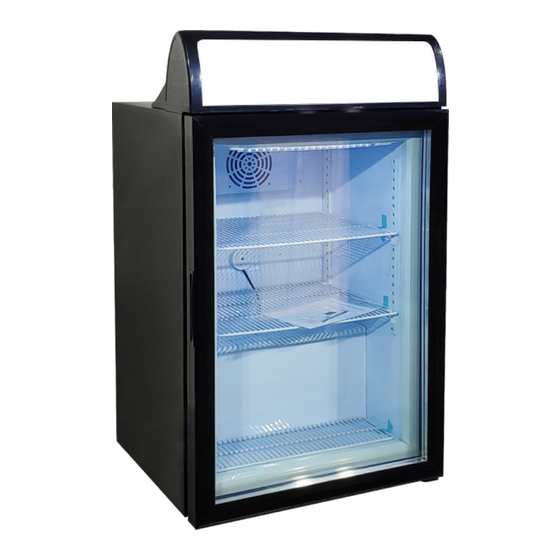

- Page 1 Display Freezer Model FR-CN-0105, 0105B, 0098NB, 0098 Items 47241, 47242, 47239, 44526 Instruction Manual Revised - 11/18/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FR-CN-0105 / Model FR-CN-0105B Model FR-CN-0098NB / Model FR-CN-0098 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation --------------------------------------------------------------------------------------- 7 - 8... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR DIMINISHED COOLING OR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR... -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 7: Technical Specifications
Technical Specifications Model FR-CN-0105 FR-CN-0105B FR-CN-0098NB FR-CN-0098 Capacity 105 L / 3.7 cu.ft. 98 L / 3.46 cu. ft. Power 180 W 158 W Power Consumption 2.3 kW/h 3.3 kW/h Temperature Range -18 to -20°C / -0.4 to -4°F Refrigerant... -
Page 8: Installation
Installation 6. Do not place the unit in the environment cold enough to be iced. BEFORE USE 1. Remove the carton and packing foam (including the bottom foam) before using. 2. Clean the unit before using. 3. Adjust the foot to make the unit steady according to the ground condition to lower the shock and noise. 4. -
Page 9: Maintenance
Maintenance DISCONNECT THE POWER SUPPLY BEFORE MAINTENANCE FOR THE MACHINE! 1. Keep the door gasket clean, remove it from the door and wash it. Dry and seal it as before. Putting some talcum powder on the magnetic surface would prolong its service life. 2. - Page 10 Troubleshooting Too high noise. The unit is not level. Adjust the adjustable legs. The fastener of the unit is loose. Fasten the loose fastener. Pipes are touching the Careful separate the touched compressor. pipes. Light is not on. The light is burned out. Replace the light.
-
Page 11: Parts Breakdown
Parts Breakdown Model FR-CN-0105 47241 Model FR-CN-0105B 47242... - Page 12 Parts Breakdown Model FR-CN-0105 47241 Item Item Item Description Position Description Position Description Position Connector for Front Bottom Panel for AH263 Top Panel for 47241 AH273 Lampshade for 47241 AH283 47241 AH264 Digital Temperature Controller for 47241 AH274 Evaporation Fan for 47241...
- Page 13 Parts Breakdown Model FR-CN-0098NB 47239...
- Page 14 Parts Breakdown Model FR-CN-0098NB 47239 Item Item Item Description Position Description Position Description Position AD668 Mesh Enclosure for 47239 AC799 M5 Nut for 47239 AH278 Compressor for 47239 AC789 Screw for 47239 AC800 Gasket for 47239 AC811 M6 Nut for 47239 AC790 Temperature Control Knob for 47239 AC801...
- Page 15 Parts Breakdown Model FR-CN-0098 44526...
- Page 16 Parts Breakdown Model FR-CN-0098 44526 Item Item Item Description Position Description Position Description Position AH292 Ventilation Grill for 44526 AH299 Lock for 44526 AH306 Plug for 44526 AH293 Upper Hinge for 44526 AH300 Door for 44526 AH307 Temperature Control for 44526 AH294 Condenser for 44526 AH301...
-
Page 17: Electrical Schematics
Electrical Schematics Model FR-CN-0105 47241 Model FR-CN-0105B 47242... - Page 18 Electrical Schematics Model FR-CN-0098NB 47239 Model FR-CN-0098 44526...
-
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
