User Manual
USB3.0 Extender
Point to Point Extender
· Important Safety Instructions:
1. To prevent electric shock, please ensure that all devices are properly
grounded.
2. Do not place this device near or over a radiator or heat register, or where it
is exposed to direct sunlight.
3. Do not place the device on an uneven or unstable surface, the device may
fall resulting in a malfunction.
4. Do not expose this device to rain or place it near water. Any liquid that
goes into the device may cause a failure, fire, or electric shock.
5. If a third-party power supply is used, please ensure that the power supply
specifications meet the product requirements.
· Introduction
This is a USB 3.0 extender, which can realize one-to-one connection through
CAT6/6A/7 network cables, with a transmission distance of up to 50m for
CAT6 and 90m for CAT6A; It supports 4 channels of USB 3.0 devices input,
Compatible with USB 2.0, USB1.1, such as printer, camera, scanner, USB flash
drive, keyboard, mouse, touchscreen, etc. Widely used in security monitoring,
gaming, industrial control, professional audio-visual, smart medical and other
fields.
· Features
1. The Transmitter supports USB 3.0 Super-Speed, compatible with USB 3.2
Gen1x1, USB 3.1 Gen1.Gen1; The Receiver supports USB 3.0 Super-Speed,
USB 2.0 High-Speed, compatible with USB 1.1 Full-Speed.
2
2. Supports four USB 3.0 input and one USB 3.0 outputs.
3. Compatible with CAT6/6A/7 network cables, CAT6 transmission distance
can reach 50m, and CAT6A transmission distance can reach 90m.
4. Supports USB hub connection.
5. Support hot-plugging of USB devices and automatically identify USB
standards.
6. Support PoC, only the Receiver is required to supply power.
7. Lightning protection, surge protection, ESD protection.
8. Supports stable 24/7 operation.
· Package Contents
Transmitter x1 Receiver x1 DC 12V/3A x1
User manual x1 Type-C 3.0 to Type-C 3.0 to
Type-C 3.0 Cable x1 USB-A 3.0 Cable x1
Mounting ear x4 Screw x10 Grounding
Screw x2
3

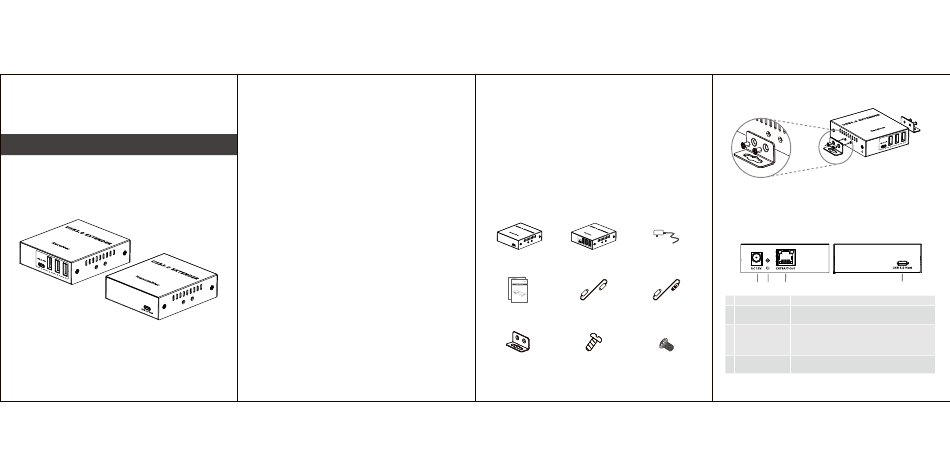

· Wall Mounting
Choose the wall mounting position and attach the mounting ears to the unit
according to the diagram.
· Panel Description
1. Transmitter (Local Side)
① ② ③
① Power input PoC, only RX power supply is needed
1) Steady on: powered on
②
Power indicator
2) Light off: powered off
Connect with CAT6/6A/7 network cable
Green LED-steady on: Established connection
③ RJ45 output port
between TX and RX
Yellow LED-steady on: Transmitting USB3.0 signals
Connect USB 3.0 port of computer host, compatible
④ USB Host 3.0 port
with USB 3.2 Gen1x1, USB 3.1 Gen1
4
④
