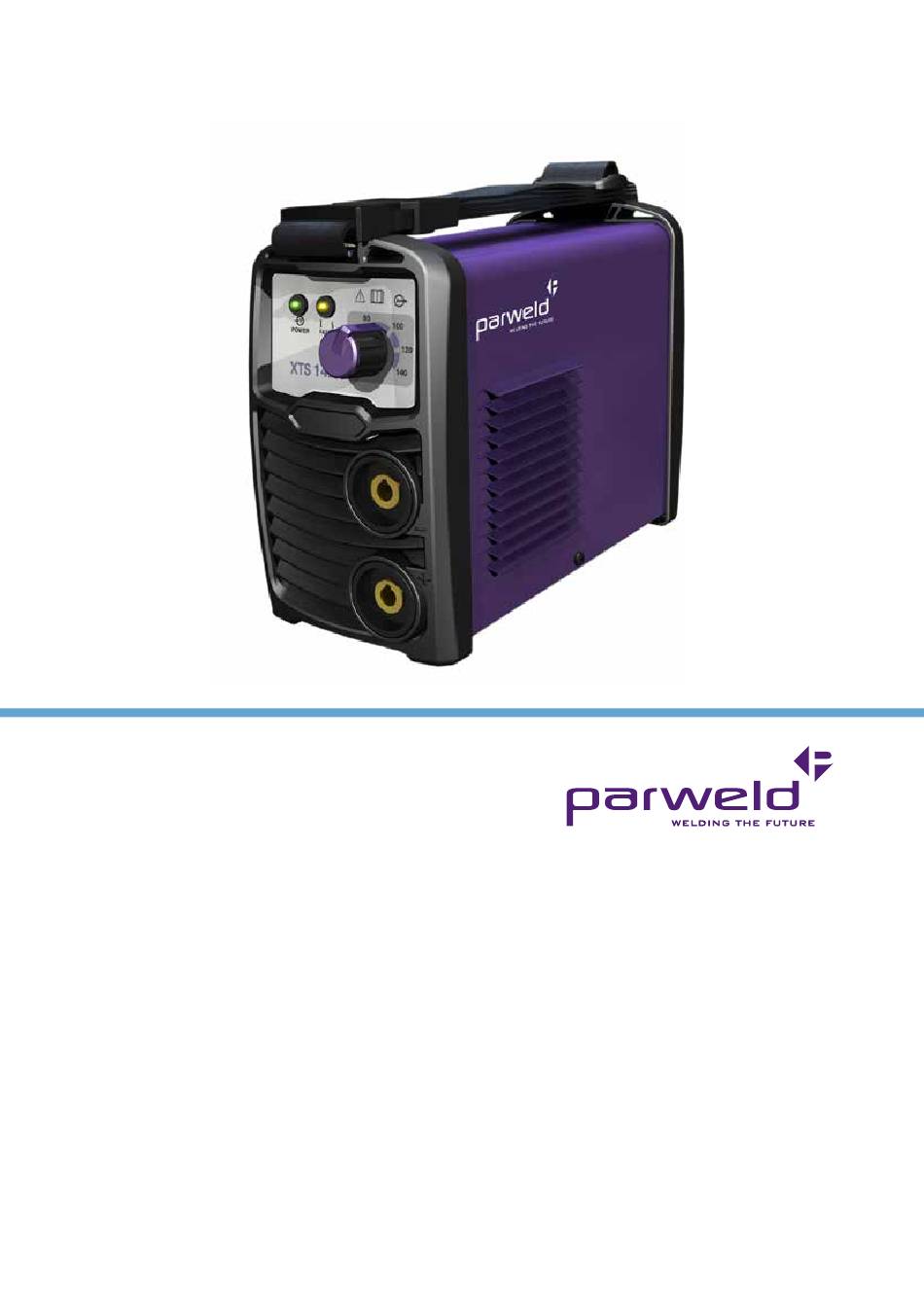

- Page 1 XTS-142 OperatOr Manual ISSue 1...
-
Page 2: Further Information
Thank you and congratulations on choosing Parweld. This Owner’s Manual is designed to help you get the most out of your Parweld products. Please take time to read the Safety precautions. They will help you protect yourself against potential hazards in the workplace. With proper maintenance this equipment should provide years of reliable service. -
Page 3: Table Of Contents
Contents Page 1.0 Safety precautions 2.0 product description 3.0 Technical Specifications 4.0 Description of controls 5.0 Installation 5.1 Unpacking the Machine 5.2 Location 5.3 Input and grounding connection 5.4 Output Polarity Connections 5.5 Torch Installation 5.6 Work return lead connection 6.0 Operation 6.1 MMA Welding guide 6.2 Basic TIG welding guide... -
Page 4: Safety Precautions
Insulate work clamp when not connected to work piece to prevent contact with any metal object. Protect yourself and others from flying sparks and hot metal. Be alert that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas. www.parweld.com... -
Page 5: Product Description
Turn face away from valve outlet when opening cylinder valve. Use the right equipment, correct procedures, and sufficient number of persons to lift and move cylinders. www.parweld.com... -
Page 6: Description Of Controls
‘-‘terminal But if in doubt consult the electrode manufacturer’s literature. Read entire installation section before starting installation. IF TIG welding the torch should always be connected to the ‘-’ terminal. 5.5 torch installation MMA cable connections www.parweld.com... -
Page 7: Work Return Lead Connection
The range of electrodes dealt with in this publication will cover the vast majority of applications likely to be encountered; are all easy to use and all will work on even the most www.parweld.com... -
Page 8: Fault Finding
(c) Adjust (e) Scale or dirt on joint angle so the 7.0 Fault Finding surface welding arc is directed more into the base metal MMA welding problem (d) Reduce travel speed of electrode (e) Clean surface before welding. www.parweld.com... - Page 9 Weld bead too Welding current is too Decrease weld wide and flat high current or undercut at edges of weld or excessive burn through www.parweld.com...
- Page 10 Welding Poor work lead Ensure that the current connection to the work work lead has a reduces when piece reliable electrical welding connection to the work piece www.parweld.com...
-
Page 11: Accessories
30PSI • Sensitive needle valve provides easy adjustment and the downward facing outlet connection eliminates hose kinking. Fittings • Fitted with standard 9 BSP inlet and outlet connections Stock Code Description 706100 Flow Meter Mixed Gas 15 lpm www.parweld.com... - Page 12 Air Cooled TIG Welding Torch 3/89 BSP Model Description Stock Code 12ft (3.8m) 25ft (7.6m) Valved Tig Torch c/w 2 Piece Power Cable and dinse connection WP17V-12-2-I WP17V-25-2-I Valved Flexible neck Tig Torch c/w 2 Piece Power Cable and dinse connection WP17VFX-12-2-I WP17VFX-25-2-I www.parweld.com...
- Page 13 45V29 Gas Lens Body .0209/0.5mm Bore 19 WP17VFX Torch Body Flexi-Valve 45V24 Gas Lens Body .0409/1.0mm Bore NI – Not Illustrated 45V25 Gas Lens Body 1/169/1.6mm Bore 45V26 Gas Lens Body 3/329/2.4mm Bore 45V27 Gas Lens Body 1/89/3.2mm Bore www.parweld.com...
-
Page 14: Ec Declaration Of Conformity
Steel and steel alloy parts use less than 4% by weight of each homogeneous component. Aluminium and aluminium alloy parts use less than 4% by weight of each homogeneous component. Only dispose off in authorised sites for electrical and electronic waste do not dispose of with general refuse or landfill waste. www.parweld.com... -
Page 15: Weee Statement
WEE compliance outside the UK please contact your supplier/Importer Parweld is registered with a compliance scheme Official registration number is WEE/FD0255QV When your equipment reaches the end of its service life you should return it to Parweld where it will be reconditioned or processed for recycling. - Page 16 Parweld Limited Bewdley Business Park Long Bank Bewdley Worcestershire England DY12 2TZ tel. +44 1299 266800 fax. +44 1299 266900 www.parweld.com info@parweld.co.uk...
