Tecnotion UC Series Manual page 10

Series Magnet pitch Magnet yokes
UC 16.5 mm UC66 UC99
UF 24 mm UF72
UM 30 mm UM90 UM120
UL 42 mm UL126 UL168
UXA 57 mm UXA114 UXA171
UXX 57 mm UXX114 UXX171
Table 2.2: Available magnet yokes belonging to the coil units and the magnet pitch.

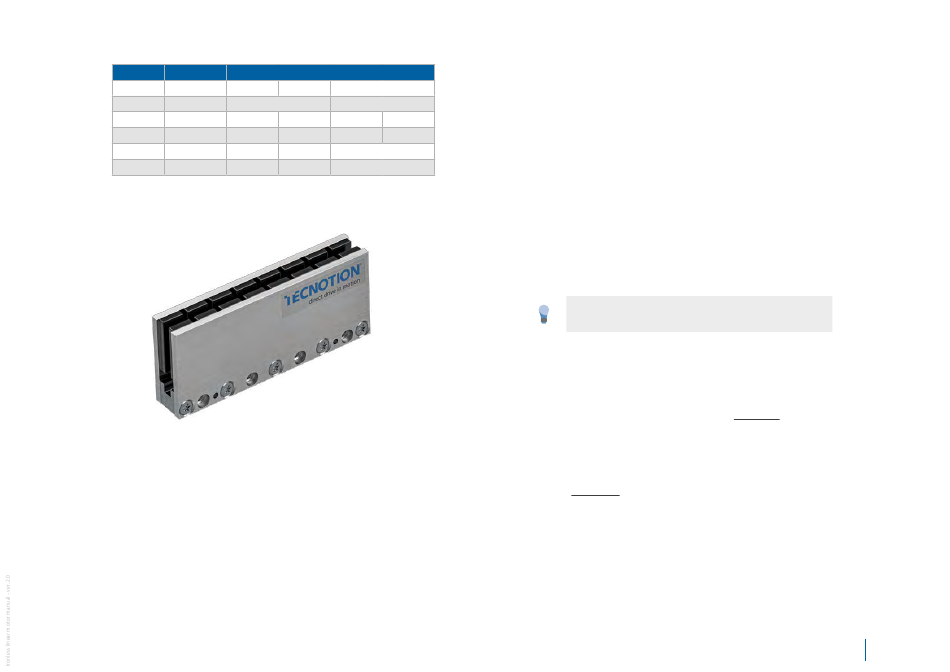

Figure 2.4 shows the magnet yoke UM120.
Figure 2.4: Example of an ironless magnet yoke (UM120).
2.2 Additional parts
For a proper installation of your linear motor system you also need:
■
an appropriate servo controller/amplifier to drive the motor;
■
a ruler and a linear encoder to determine the motor position with
high accuracy;
■
UC264
■
UF120
■
UM150 UM390
■
UL210 UL546
UXA456
Occasionally useful are:
UXX456
■
■
■
■
All these features are not a part of Tecnotion's standard delivery.
A digital Hall module for commutation can be used as cost effective
alternative to a separate encoder system when positioning require-
ments are not too strict. These products can be supplied by Tecnotion,
information on these products can be found in Chapter 5. Analog Hall
modules are not available for ironless motors.
In order to mount the coil units and magnet yokes, bolts and (option-
ally) dowel pins are required. Information regarding these parts can
be found in Chapter 4.
power supply, cabling and connectors;
an Allen key set to install the products;
fixing components like bolts and dowel pins;
a bearing system.
dampers to prevent uncontrolled runout from the track;
a mechanical brake, especially in vertical applications;
heat sink compound for better heat transfer from the motor to
the heat sink;
isopropanol wipes to clean mounting surfaces.
For installation, use non-ferro magnetic tools to prevent damaging
the magnet yokes.
MOTOR COMPONENTS
10
