SDC QuietDuo LR100 Series Installation Instructions

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
ADAMS RITE ELECTRIC LATCH RETRACTION DEVICE KIT
*Visit: sdcsec.com/adamsrite
for Installation Video
Retrofit Installation Note: 42" or 48" exit devices that have been modified to fit a 36" or smaller opening, may not have
the required space to fit the standard E. L. R. assembly. Always verify the distance from the end of the touchpad to the
end rail, and if necessary, consult with the factory for appropriate selection.

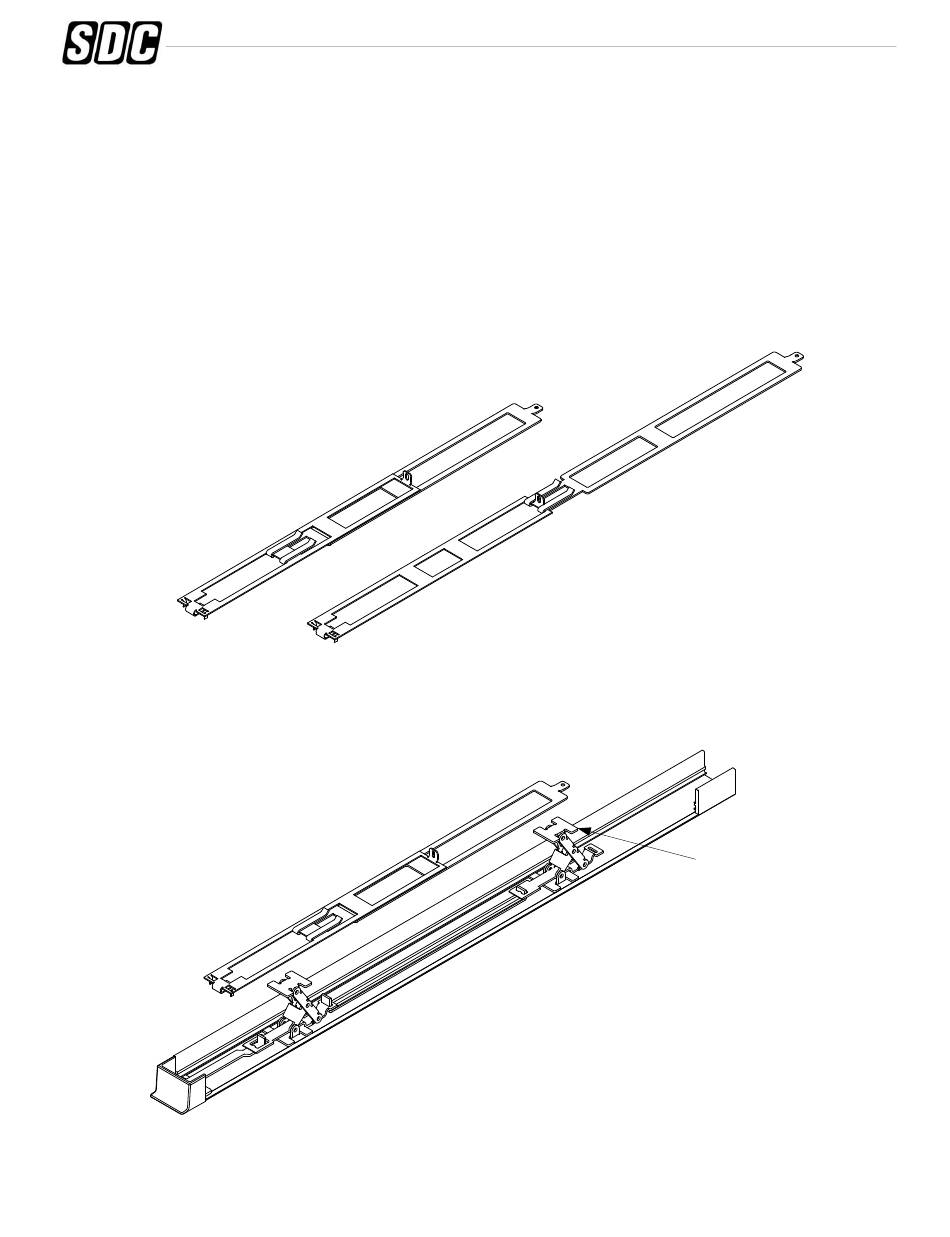

Assemble brackets as
shown for different size
Exit Devices.
36" or 42"
Install the ELR bracket
assembly into device
extrusion, over the Push Bar
support brackets.
P:\INST INSTRUCTIONS\ELR KITS\INST-LR100ARK_RIM
INSTALLATION INSTRUCTIONS
LR100ARK
RIM EXIT DEVICE
MODELS: 3700 & 8800
REV H 10-23 Page 1
48"
ELECTRICAL DATA
24VDC +/- 10%
1.5A inrush/200mA holding
RED (+) BLK (-)
PATENT #8,851,530
Remove End
Cap
Push Bar support
bracket
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
