SDC LR100ARK Installation Instructions

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 •
www.sdcsecurity.com • E-mail: service@sdcsecurity.com

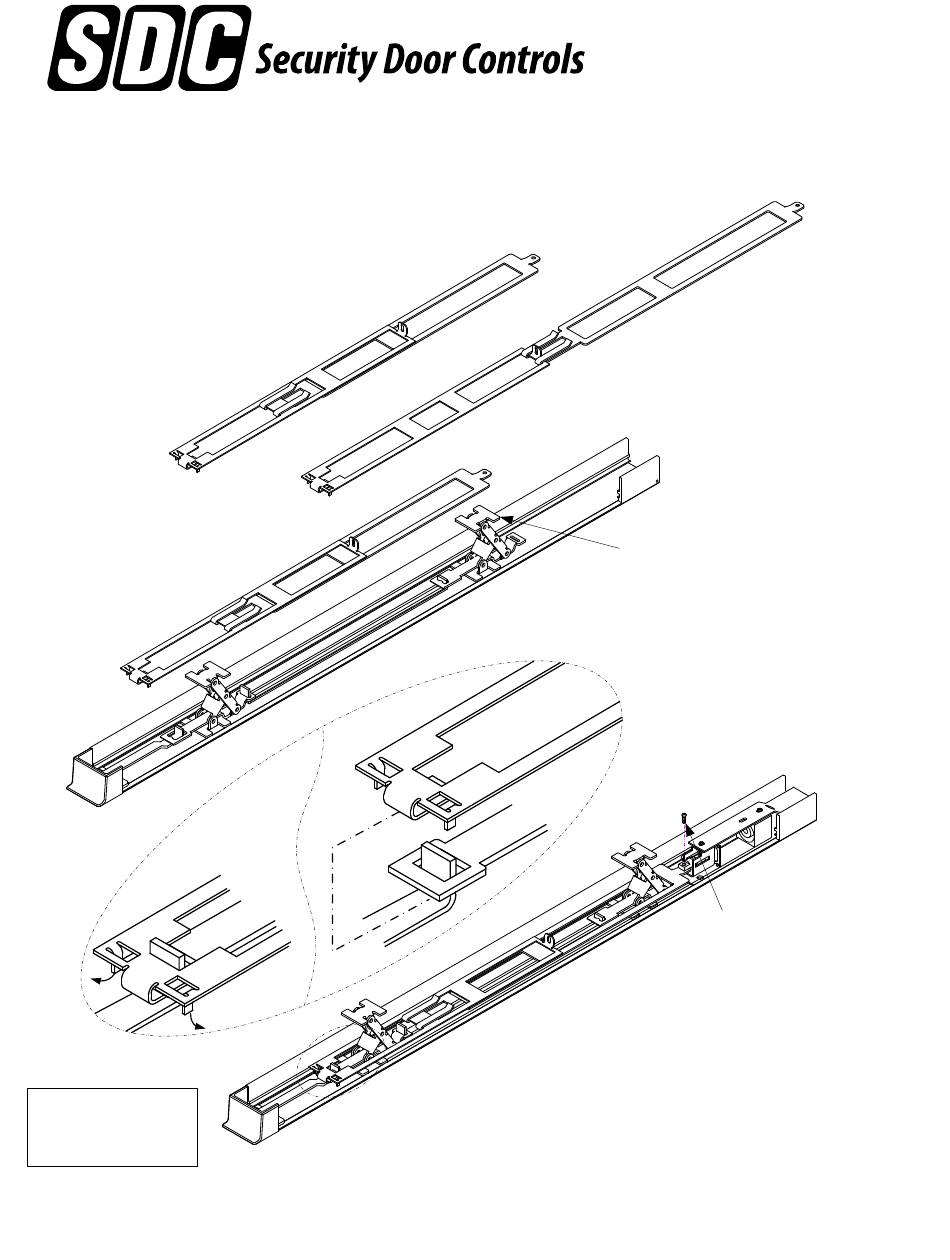

Assemble brackets
as shown for different
size Exit Devices.
36" or 42"
Install the ELR bracket
assembly into device
extrusion, over the Push
Bar support brackets.
Bend tabs out
ELECTRICAL DATA
24VDC @ 700/200mA
RED (+) BLK (-)
PATENT #8,851,530
P:\INSTALLATION INST\SWITCH KITS\INST-LR100ARK.vsd
INSTALLATION INSTRUCTIONS LR100ARK
ADAMS RITE ELECTRIC LATCH RETRACTION DEVICE KIT
MODELS: 3700 & 8800
REV - 12-19 Page 1
RIM EXIT DEVICE
48"
Apply power to the ELR unit to make it draw the
sliding latch bracket back to the open position.
Secure in position by tightening the set screws in the
ELR assembly.
* Visit: sdcsec.com/adamsrite
For Installation video
Retrofit Installation Note: 42" or
48" exit devices that have been
modified to fit a 36" or smaller
opening, may not have the
required space to fit the standard
Remove
E. L. R. assembly. Always verify
End Cap
the distance from the end of the
touchpad to the end rail, and if
necessary, consult with the
factory for appropriate selection.
Push Bar
support bracket
Attach the Bracket assembly to
the existing Device linkage as
shown. Once the Bracket is in
place, bend out the tabs so the
Bracket assembly will slide easily,
without falling out or binding.
Slide ELR into back of
device and attach to
bracket assembly with
supplied screw.
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
