SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
P:\INST-INSTRUCTIONS\Electrical Devices\INST-S4200
INSTALLATION INSTRUCTIONS

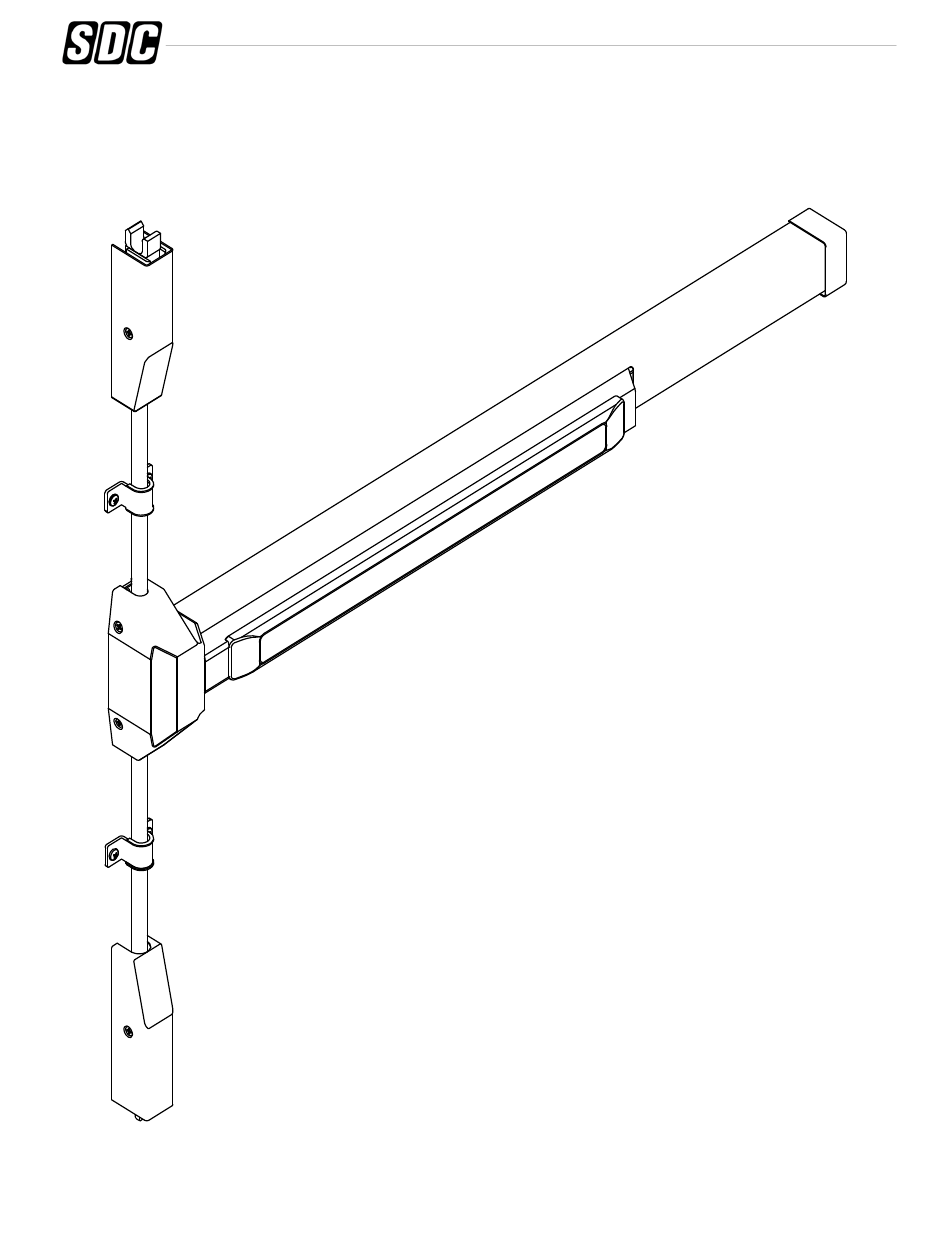

SURFACE VERTICAL ROD
PANIC / FIRE EXIT DEVICE
REV -
11/20
Page 1
S4200
These instructions are presented in step by step sequence.
Use the provided templates to tape to your door and frame
as an aid to prepare in mounting the device.
Please read instructions thoroughly before installing.
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SDC S4200
Summary of Contents for SDC S4200
- Page 1 Please read instructions thoroughly before installing. Any suggestions or comments to this instruction or product are welcome. Please contact us through P:\INST-INSTRUCTIONS\Electrical Devices\INST-S4200 REV - 11/20 Page 1 our website or email engineer@sdcsecurity.com...
- Page 2 Assembly cover Mounting End Cap Bracket Bracket Vertical Rod Device Housing Guide Connector Push Chassis Cover Vertical Rod Head Assembly Bottom Mounting Bottom Bracket Latch Assembly Bottom Latch Bottom Latch Assembly Cover Bottom Strike P:\INST-INSTRUCTIONS\Electrical Devices\INST-S4200 REV - 11/20 Page 2...
- Page 3 6. Install two mounting brackets on top and bottom of the door. Device is level (See Figure 2.) 2" Minimum Mounting Device Cam Bracket Insert Trim actuating shaft Device Cam Figure 2 Into Device Cam P:\INST-INSTRUCTIONS\Electrical Devices\INST-S4200 REV - 11/20 Page 3...
- Page 4 Rod & mtg. screw Actuator Figure 4 3. Screw the threaded end of bottom rod in to bottom latch assembly. (See Figure 5.) Threaded end of Bottom Rod Figure 5 P:\INST-INSTRUCTIONS\Electrical Devices\INST-S4200 REV - 11/20 Page 4...
- Page 5 2. Fasten the threaded end of the top rod into the top latch assembly. (See Figure 9.) NOTE: Latch should be in Locked position Figure 9 Figure 8 Threaded end of Top Rod P:\INST-INSTRUCTIONS\Electrical Devices\INST-S4200 REV - 11/20 Page 5...
- Page 6 Note: If the hole on the top connecting rod does not align with the mounting hole of the rod actuator, then adjust the height of the top rod as shown in Figure 9 or re-cut to length. Figure 12 P:\INST-INSTRUCTIONS\Electrical Devices\INST-S4200 REV - 11/20 Page 6...
-
Page 7: Step 6: Test Operation
ELR is dogged down opening and closing the door. 8. De-energize the ELR and verify that the top and bottom latch are fully extended. 9. Cycle the ELR on and off to verify operation. P:\INST-INSTRUCTIONS\Electrical Devices\INST-S4200 REV - 11/20... -
Page 8: Step 6: Install Covers
Providing constant power of 24VDC to the ELR will keep the push bar depressed and the latch retracted. Release Electric Dogging: De-energizing the ELR will release the push bar. The push bar will return to the detracted position and the latch will extend to lock door. P:\INST-INSTRUCTIONS\Electrical Devices\INST-S4200 REV - 11/20 Page 8...
