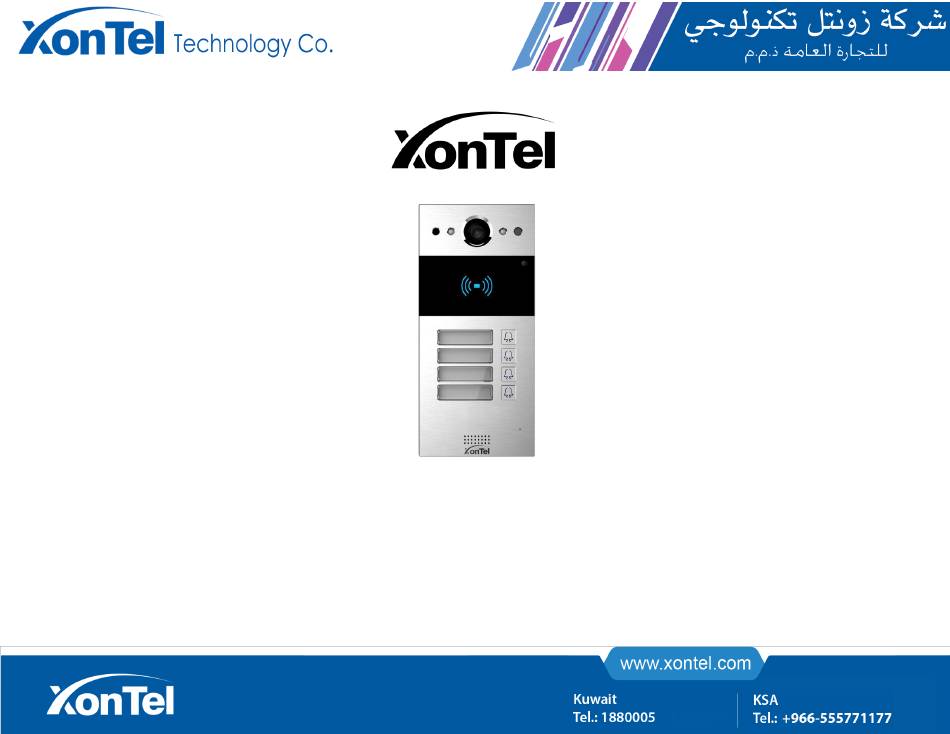

- Page 1 IP-Door Video Intercom XT-11P Quick Guide...
- Page 2 Before you start using the device, please check the version you got and ensure that the following items are included in the shipped box: Universal Accessories: M2.5 x 6 crossheaad Sealing pressing plate X 1 Wiring cover X 1 XT-11P X 1 screw X 6 RJ45 coupler ethernet Rubber plug X 3 Rope X 1 RJ45 cable X 1 extension connector X 1 （S,M,L）...
-
Page 3: Product Overview
Product Overview... -
Page 4: Installation Environment
Installation Environment Please do not place device under direct sunlight. If installing the device indoors, please keep device at least 2 meters away from light, and at least 3 meters away from window and door. -
Page 5: Installation
Installation Flush Mounting Step1: Bracket/Box Installation 1. Normal Installation Insert the flush-mounting Mark the four holes of Cut a rectangular hole on the wall box into the hole. the flush-mounting box (height*wide*depth=207*89*40mm) on the wall. that can accommodate all the cables. Take down the flush-mounting box, then drill (6mm drill bit required) the four marked... - Page 6 2. Or you can choose another simple method without fixing ST4x20 crosshead screws Use cement or non-corrosive Finish the flush-mounting structural adhesives to fill the gap box installation. between the wall and flush- mounting box. Wait for the adhesive material to dry, then go to the next step.
- Page 7 Step2：Flush-mounting Bracket Installation Tighten the device onto the Flush-mounting bracket Combine the device with the flush-mounting bracket with four installation is completed. flush-mounting bracket according wall-mounting screws. to the direction indicated in the drawing.
- Page 8 Select a suitable size rubber plug to push all the cables into the For convenient wiring, wiring cover. Fix sealing pressing plate to the wiring cover hang XT-11P on the with two M2.5x6 crosshead screws. flush-mounting box with rope.
- Page 9 Wire Length & AWG Table Please follow the properly measured wire gauge/length to install device: 20 AWG 22 AWG 24 AWG 26 AWG ≤50m ≤40m ≤20m 12V 1A Adapter...
- Page 10 Notice Information XonTel XT-11P firmware contains third-party open source software under the terms of the GNU General Public License (GPL). XonTel is committed to meeting the requirements of the GNU General Public License (GPL) and will make all required source code available.
