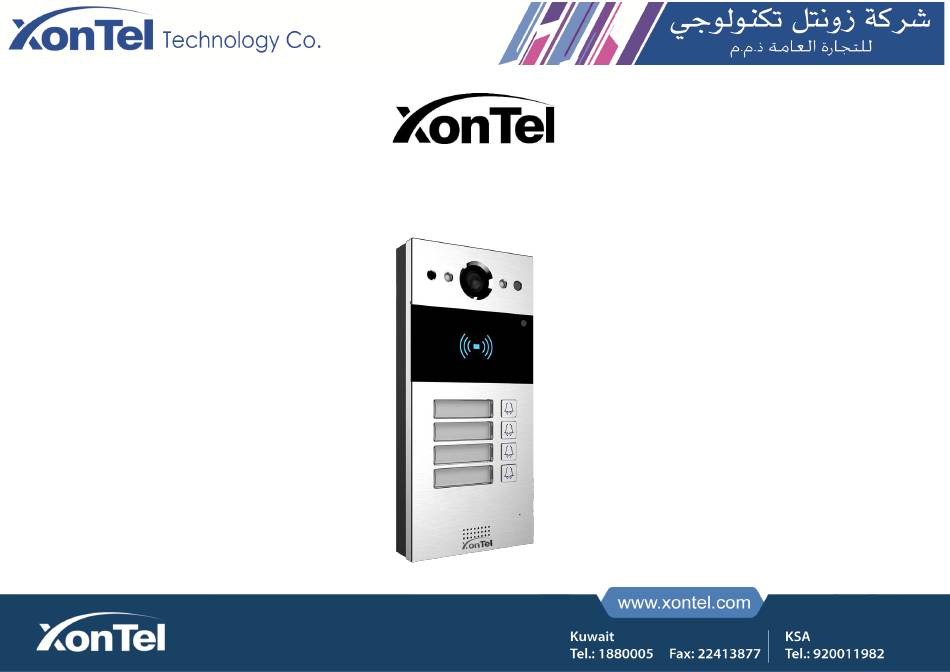

  • Page 1 XT-11P User Manual...
  • Page 2 About This Manual Thank you for choosing XonTel XT-11P door phone. This manual is intended for end users who need to properly configure the door phone. This manual provides all functions’ configurations of XT-11P. Please visit XonTel forum or consult technical support for any new information or latest firmware.

  • Page 3: Table Of Contents

    Content 1. Product Overview ................................... 8 1.1. Product Description ................................. 8 1.2. Connector Introduction ................................8 2. Daily Use ....................................... 10 2.1. Make a Call ................................... 10 2.2. Receive a Call ..................................10 2.3. Unlock ....................................11 2.3.1. Unlock by RFID Cards ..............................11 2.3.2.
  • Page 4 3.2.1. Modify the Web Password ............................13 3.3. Phone Configuration ................................13 3.3.1. Language ..................................13 3.3.2. Time ....................................14 3.3.3. Network ..................................14 3.3.4. Sound ..................................15 3.4. Intercom Call ..................................17 3.4.1. SIP Call ..................................17 3.4.2. SIP Account ................................. 17 3.4.3.
  • Page 5 3.5. Security ....................................22 3.5.1. Live view ..................................22 3.5.2. RTSP ................................... 23 3.5.3. ONVIF ..................................25 3.6. Access Control ..................................26 3.6.1. Unlock via DTMF ................................. 26 3.6.2. Unlock via RFID Card ..............................32 3.6.3. Unlock via HTTP command ............................33 3.6.4.
  • Page 6 4.2.1. Call Time Related ................................ 38 4.2.2. SIP Call Related ................................38 4.2.3. Codec ..................................39 4.2.4. DTMF ................................... 41 4.2.5. Encryption ..................................42 4.2.6. NAT ........................................42 4.2.7. User Agent ................................... 42 4.3. Access Control ..................................43 4.3.1. Web Relay ................................... 43 4.4.
  • Page 7 4.6. Log ......................................50 4.6.1. Call Log ..................................50 4.6.2. Door Log ..................................50 4.6.3. System Log .................................. 51 4.6.4. PCAP ................................... 52...

  • Page 8: Product Overview

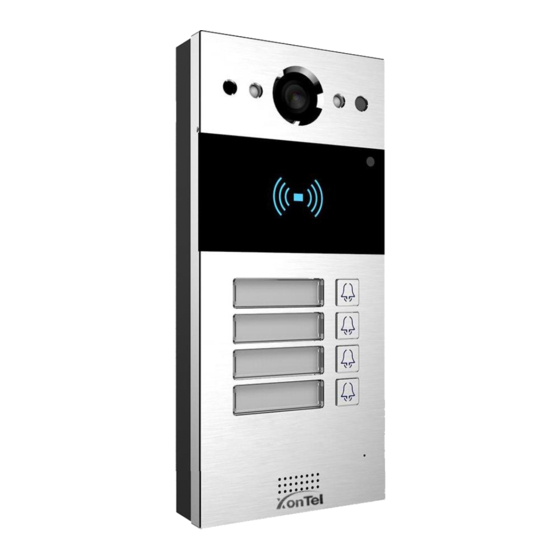

    1. Product Overview 1.1. Product Description XonTel XT-11P is a SIP-compliant, hands-free and video door phone. It can be connected with XonTel indoor monitors for remote access controlling and monitoring. Users can communicate with visitors via audio and video calls, and unlock the door if they need.
  • Page 9 DOORA/B: Trigger signal input terminal. RelayA/B (NO/NC/COM): Relay control terminal. Note: The general door phone interface diagram is only for reference.

  • Page 10: Daily Use

    Press one of the intercom push buttons to make a call (you need to configure the destination of each push button through web interface). 2.2. Receive a Call XT-11P will auto answer the incoming call by default. If users disable auto answer function, they can press “Dial key” to answer the incoming call.

  • Page 11: Unlock

    Place the predefined user cards in RFID card reader to unlock. Under normal conditions, XT-11P will announce “The door is now opened.” If the card has not been registered, XT-11P will show “Unauthorized.” Both 13.56MHz and 125KHz RFID cards are supported on XT-11P.

  • Page 12: Basic Features

    3.1. Access the Website Setting 3.1.1. Obtain IP Address XT-11P use DHCP IP by default. Hold the first push button in the intercom and voice system will enter IP announcement mode. In IP announcement mode, the IP address will be announced.

  • Page 13: Password Modification

    3.2. Password Modification 3.2.1. Modify the Web Password Go to Security - Basic to modify password for webpage. To modify password for “admin” or “user” account. Choose the user then click on “ Change Password “ 3.3. Phone Configuration 3.3.1. Language Go to Phone - Time/Lang to select language for webpage.

  • Page 14: Time

    NTP: To select local time zone for NTP server. 3.3.3. Network DHCP Mode In Website, go to Network - Basic. XT-11P uses DHCP mode by default which will get IP address, subnet mask, default gateway and DNS server address from DHCP server automatically. Static IP Mode In Website, go to Network - Basic.

  • Page 15: Sound

    3.3.4. Sound Go to Phone - Audio to configure volume and upload tone file. Mic Volume: To configure microphone volume. Volume Level: To configure volume level. Speaker Volume: To configure speaker volume. Tamper Alarm Volume: To configure tamper alarm volume. Prompt Volume: To configure voice prompt volume.
  • Page 16 Open Door Tone setting: Disable it, and users will not hear the prompt voice when the door is opened. IP Announcement: Configure loop times that user will hear the voice prompt of intercom IP address after pressing first push button. RingBack Upload: To upload the ring back tone by users themselves.

  • Page 17: Intercom Call

    3.4. Intercom Call 3.4.1. SIP Call SIP calls which use SIP numbers to make or receive calls should be supported by SIP server. Users need to register accounts and fill SIP feature parameters before using it. Go to Account - Basic to configure SIP account and SIP server for door phones first.

  • Page 18: Sip Server 1&2

    User Name: To enter user name of the extension. Password: To enter password for the extension. 3.4.3. SIP Server 1&2 Server IP 1: To enter preferred SIP server’s IP address or URL. Server IP 2: To display and configure alternate SIP server settings. This is for redundancy, if registering to preferred SIP server fails, the phone will go to alternate SIP server for registering.

  • Page 19: Transport Type

    3.4.5. Transport Type To display and configure transport type for SIP message. ⚫ UDP: UDP is an unreliable but very efficient transport layer protocol. ⚫ TCP: Reliable but less-efficient transport layer protocol. ⚫ TLS: Secured and reliable transport layer protocol. ⚫...

  • Page 20: Push Buttons Configuration

    3.4.7. Push Buttons configuration Go to Intercom - Basic to configure first. After setup the number which users need to call. The desired push button to call. 3.4.8. Auto Answer Go to Phone – Call Feature to enable auto answer feature for SIP calls.

  • Page 21: Web Call

    3.4.9. Web Call Go to Intercom - Basic to dial out or hang up incoming calls from website.

  • Page 22: Security

    3.5. Security 3.5.1. Live view Go to Intercom - Live Stream to check the real-time video from XT-11P. In addition, user also can check the real-time picture via URL: http://IP_address:8080/picture.jpg.

  • Page 23: Rtsp

    3.5.2. RTSP XT-11P supports RTSP stream, go to Intercom - RTSP to enable or disable RTSP server. The URL for RTSP stream is: rtsp://IP_address/live/ch00_0. RTSP Stream: To enable RTSP video and select the video codec. XT-11P supports H.264 video codec by default.
  • Page 24 H.264 Video Parameters: H.264 is a video stream compression standard. To modify the resolution, framerate and bitrate of H.264. MPEG4 Video Parameters: MPEG4 is network video image compression standard. It supports the maximum compression ratio 4000:1. It is an important and common video function with great communication application integration ability and less core program space.

  • Page 25: Onvif

    3.5.3. ONVIF XT-11P supports ONVIF protocol, which means XT-11P’s camera can be searched by other devices, like NVR which supports ONVIF protocol as well. Go to Intercom - ONVIF to configure ONVIF mode, its username and password. Switching ONVIF mode to “Undiscoverable,” and it means users must program ONVIF’s URL manually.

  • Page 26: Access Control

    Invert state means NC and COM are normally opened. Relay Mode: There is two modes Monostable and Bistable. Monostable refers to the momentary action, or pulse of duration 0.5 seconds of the XT-11P each time is recognized. Bistable refers to the maintained operation of the XT-11P...
  • Page 27 Relay Delay: To configure the duration of opened relay. Over the value, the relay would be closed again. DTMF Option: To select digit of DTMF code, XT-11P support maximum to 4 digits’ DTMF code. DTMF: To configure DTMF code for remote unlocking.
  • Page 28 Relay Schedule: Set the corresponding relay always open at a specific time. This feature is designed for some specific scenarios, for example, the time after school, or for morning work time. • Relay ID: choose on the relay you need to set up. •...
  • Page 29 Intercom > To do schedule configuration go to Schedules interface. Schedule Type: set the type of time period. There are three types to choose from: Daily, Weekly, and Normal. The default is Daily. Schedule Name: set the name of the time period. Date Range: set the corresponding date.
  • Page 30 XT-11P door phone supports can give access permission to the indoor monitor or other devices. Access white list includes group setting and contact setting and...
  • Page 31 To setup access whitelist on web go to Contacts > Access Allowlist. Name: enter the contact’s name, which is required. Phone Number: enter the phone number of the contact, which is required. Account: select which SIP account will be used to call out.

  • Page 32: Unlock Via Rfid Card

    3.6.2. Unlock via RFID Card and Private PIN You can tap the RF card on the reader and click obtain to add RF card for the user. Path: Intercom > User. After that add new user as shown. User ID: Enter the user ID. The user ID is 11 digits maximum in length and cannot be reused for other users.

  • Page 33: Unlock Via Http Command

    Enabled: Enable this function. Disable by default. Session Check: enable it to protect data transmission security. UserName&Password: Users can setup the username and password for HTTP unlock (by default username is admin and password is xontel). URL format: http://(Intercom_IP)/fcgi/do?action=OpenDoor&UserName=ad min&Password=xontel&DoorNum=1...

  • Page 34: Unlock Via Exit Button

    3.6.4. Unlock via Exit Button Go to Intercom - Input to configure input settings. XT-11P supports 2 input triggers “Input A/B (DOOR A/B).” Enabled: To enable or disable input trigger service. Trigger Electrical Level: To choose open circuit trigger or closed- circuit trigger.

  • Page 35: Reboot

    3.7. Reboot Go to Upgrade - Basic, users can reboot the phone. 3.8. Reset Go to Upgrade - Basic, users can reset the phone to factory settings. Note: All configurations will be reset after restore. Please backup the data if users need.

  • Page 36: Advanced Features

    Go to Intercom - LED Setting to configure. Photoresistor: The setting is for night vision, when the surrounding of XT-11P is very dark, infrared LED will turn on and XT- 11P will turn to night mode. Photoresistor value relates to light intensity and larger value means that light intensity is smaller.

  • Page 37: Rfid Card Code Display Related

    Wiegand Transafer Mode: Input or output. Typically, when users select input, we generally connect the wiegand input device, such as the wiegand card reader. Or XT-11P can be used as output, it is generally used to connect the third-party access control, and XT-11P change the card information as wiegand signal, and then transfer to the access control module.

  • Page 38: Intercom

    4.2. Intercom 4.2.1. Call Time Related Go to Intercom - Basic to configure. Max Call Time: To configure the max call time. Dial In Time: To configure the max incoming dial time, available when auto answer is disabled. Dial Out Time: To configure the max no answer call time. 4.2.2.

  • Page 39: Codec

    Go to Account - Advanced to configure SIP call related codec. Account: To choose which account to configure. Audio Codec: XT-11P support four audio codecs: PCMA, PCMU, G729, G722. Different audio codecs require different bandwidth; users can enable/disable them according to different network environment.
  • Page 40 Video Codec: XT-11P support H.264 standard, which provides better video quality at substantially lower bit rates than previous standards. Codec Resolution: XT-11P support four resolutions, QCIF, CIF, VGA, 4CIF and 720P. Bitrate: To configure bit rates of video stream. Payload: To configure RTP audio video profile.

  • Page 41: Dtmf

    4.2.4. DTMF Go to Account - Advanced to configure RTP audio video profile for DTMF and its payload type. Type: Support inband, info, RFC2833 or their combination. How To Notify DTMF: Only available when DTMF type is info. Payload: To configure payload type for DTMF.

  • Page 42: Encryption

    4.2.5. Encryption Go to Account - Advanced to configure. If enabled, voice will be encrypted. 4.2.6. NAT Go to Account - Advanced to display NAT related settings. UDP Keep Alive message: If enabled, the phone will send UDP keep-alive message periodically to router to keep NAT port alive. UDP Alive Msg Interval: Keep alive message interval.

  • Page 43: Access Control

    PCAP. 4.3. Access Control 4.3.1. Web Relay XT-11P can support to connect to web relay. Go to Phone – Web Relay to configure. Type: Connect web relay and choose the type.

  • Page 44: Security

    Note: Users can modify username and password in web relay website. 4.4. Security 4.4.1. Motion XT-11P supports motion detection, go to Intercom - Motion to configure detection related parameters. Motion Detection Options: To enable or disable motion detection. If enabled.

  • Page 45: Action

    4.4.2. Action XT-11P supports to send notifications, snapshots via email and ftp transfer method, or calls via sip call method, when trigger specific actions. 4.4.2.1. Action Parameters Go to Intercom - Action to set action receiver. Email Notification Sender’s email address: To configure email address of sender.
  • Page 46 FTP User Name: To configure user name of FTP server. FTP Password: To configure password of FTP server. FTP Test: To test whether FTP notification is available. SIP Notification SIP Call Number: To configure sip call number. SIP Call Name: To configure display name of XT-11P.
  • Page 47 4.4.2.2. Input Interface Triggered Action Go to Intercom - Input to configure. Action to execute: To choose which action to execute after triggering. HTTP URL: To configure URL, if HTTP action is chosen. 4.4.2.3. Motion Triggered Action Go to Intercom - Motion to configure. Action to execute: To choose which action to execute after triggering.

  • Page 48: Upgrade

    4.5. Upgrade 4.5.1. Web Upgrade Go to Upgrade - Basic to do web upgrade. Upgrade: Choose “.rom” firmware from the PC, and then click “Submit” to start update. 4.5.2. Autop Upgrade Go to Upgrade - Advanced to configure automatically update server’s settings.

  • Page 49: Backup Config File

    Automatic Autop To display and configure auto provisioning mode settings. This auto provisioning mode is actually self-explanatory. For example, mode “Power on” means the phone will go to do provisioning every time it powers on. Note: Please refer to the related feature guide from forum. 4.5.3.

  • Page 50: Log

    4.6. Log 4.6.1. Call Log Go to Phone - Call Log, users can see a list of call logs which have dialed, received or missed. Users can delete call logs from list. 4.6.2. Door Log Go to Phone - Door Log, users can see a list of door logs which records card information and date.

  • Page 51: System Log

    4.6.3. System Log Go to Upgrade - Advanced to configure system log level and export system log file. LogLevel: From level 0 to 7. The higher level means the more specific system log is saved to a temporary file. It’s level 3 by default. Export Log: Click to export temporary system log file to local PC.

  • Page 52: Pcap

    4.6.4 PCAP Go to Upgrade - Advanced to start, stop packets capturing or to export captured packet file. Start: To start capturing all the packets file sent or received from phone. Stop: To stop capturing packets.
