XT-10P IP Intercom User Manual
About this manual
Thank you for choosing XonTel XT-10P IP Video Intercom. This manual is intended for end
users, who need to use and configure the XT-10P IP Intercom. It provides an overview of the
most essential functions and features of the product.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT-10P and is the answer not in the manual?

Questions and answers

Related Manuals for XONTEL XT-10P

Summary of Contents for XONTEL XT-10P

  • Page 1 Thank you for choosing XonTel XT-10P IP Video Intercom. This manual is intended for end users, who need to use and configure the XT-10P IP Intercom. It provides an overview of the most essential functions and features of the product.

  • Page 2: Table Of Contents

    Content 1. Product overview ....................4 1.1 Product Description ..................4 1.2 Power connection .................... 4 2. Daily use ......................5 2.1 Making a call ....................5 2.2 Receiving a call ....................5 2.3 Unlock by RF Card ..................5 3.
  • Page 3 3.4.4 Web Call ....................16 3.4.5 Call time and dial time ................. 17 3.4.6 Push To Hang Up ................17 3.4.7 TFTP Server ..................17 3.5 Photoresistor and Tamper Alarm..............18 3.6 LED settings ....................19 3.7 Relay ......................20 3.8 Input ......................

  • Page 4: Product Overview

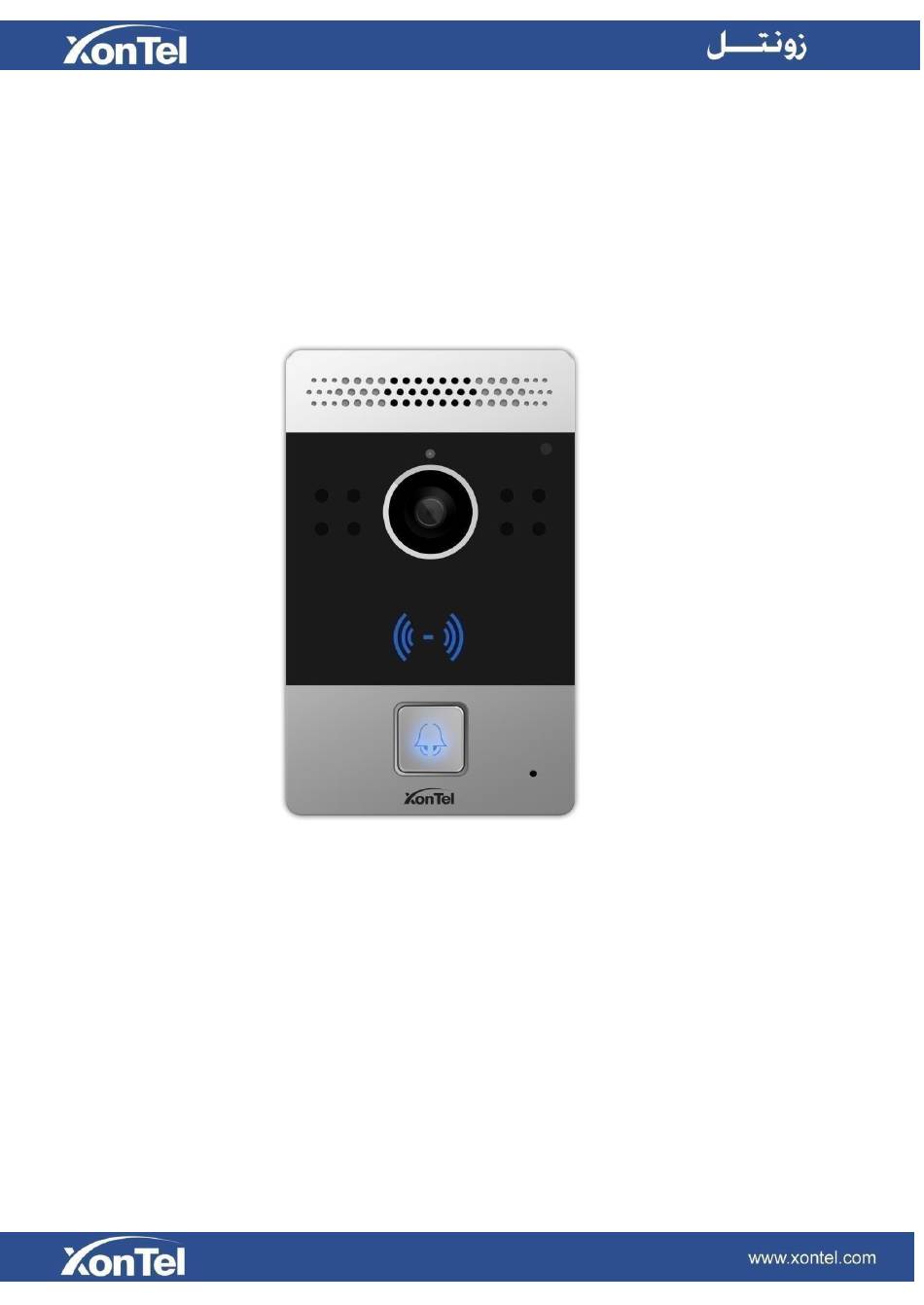

    Product overview Product Description XonTel XT-10P is a SIP-compliant, hands-free one button video outdoor phone. It can be connected with your IP Phone or IP indoor monitor for remote unlock and monitor. Users can operate the indoor phone to communicate with visitors via voice and video, and use RF card to unlock the door.

  • Page 5: Daily Use

    LED turns green, it means the call has been answered. Receiving a call User can use IP phone or indoor monitor to call XT-10P and XT-10P will answer it automatically by default. If user disable auto answer, user should press push button to answer incoming call.

  • Page 6: Configuration

    3.1.1 Obtaining IP address The XonTel XT-10P uses DHCP IP address by default. If IP address is unknown, press and hold call button for a short period of time (about 5 seconds) after LED light turns blue, XT-10P will announce its IP address.

  • Page 7: Status

    3.1.3 Status From here you can see XT-10P status, including product information, network information and account information. This settings can be viewed from Status -> Basic Sections Description Product Information To display the device information such as Model name, MAC address (IP device’s physical address), Firmware version and Hardware firmware.

  • Page 8: Phone Basic Settings

    Phone Basic settings 3.2.1 Time/Lang To select local Time Zone and set the NTP servers for the XT-10P go to Phone->Time/Lang...

  • Page 9: Call Feature

    3.2.2 Call Feature To configure call feature settings go to Phone->Call Feature Sections Description  Others Return Code When Refuse: Allows user to assign specific code as return code to SIP server when an incoming call is rejected.  Auto Answer Delay: To configure delay time before an incoming call is automatically answered.

  • Page 10: Voice

    3.2.3 Voice To configure XT-10P volume settings and upload tone files to the XT-10P go to Phone->Voice Mic Volume: To configure Microphone volume. Speaker Volume: To configure Speaker volume. Ringback Volume: To configure ringback volume. Open Door Warning: When the door is opened, users will hear open door prompt voice.If you disable this option, users will not hear open door...

  • Page 11: Call Log

    3.2.4 Call Log To check XT-10P call history go to Phone->Call Log, Sections Description Call History To display call history records. Available call history types are All calls, Dialed calls, Received calls, Missed calls and Forwarded calls. Users can check the call history in detail. Tick the number...

  • Page 12: Door Log

    3.2.5 Door Log To check XT-10P door unlock history go to Phone->Door Log Sections Description Door Log To display unlock history. This interface can only show the RF card unlock history now. Users can check the unlock information in detail. User can...

  • Page 13: Web Relay

    3.2.6 Web Relay XonTel XT-10P can support extra web relay. This function is more safety to use DTMF code to remote unlock. To configure Web Relay settings go to Phone->Web Relay Type: Connect web relay and choose the type. IP Address: Enter web relay IP address.

  • Page 14: Network Settings

    Network settings To set XT-10P IP address automatically or manually go to Network->Basic 3.3.1 DHCP XT-10P uses DHCP by default, it will get IP address, Subnet Mask, Default Gateway and DNS server address from DHCP server automatically. 3.3.2 Static IP...

  • Page 15: Call Settings

    Call settings To configure basic call settings go to Intercom->Basic, 3.4.1 No Answer Call If there is no answer from push button number over 60s (default value), XT-10P will call predefined 'No Answer Call' number. 3.4.2 Push Button Push Button: To configure the destination number or IP you want to contact with.

  • Page 16: Push Button Action

    If you choose HTTP mode, enter the URL format: http://http server IP address/any information such as “ http://192.168.35.48/mac=000 “, then you will check this information which capture the network packet. 3.4.4 Web Call From here you can dial out or hang up the XT-10P intercom call from website.

  • Page 17: Call Time And Dial Time

    A. Max Call Time: To configure max call time for the XT-10P intercom. B. Max Dial Time  Dial in Time: When other phone calls to XT-10P, if ring tone is over the Dial in Time without answer. The call will be hang up. ...

  • Page 18: Photoresistor And Tamper Alarm

    Sections Description Photoresistor Photoresistor is used to sense the light intensity that XT-10P will auto enable infrared LED. You can adjust the photosensitive value by yourself. Tamper Alarm Enable the Tamper Alarm, if the gravity of XT-10P changes, the phone will...

  • Page 19: Led Settings

    To configure XT-10P LED settings go to Intercom->LED Setting As shown in the figure below you can control the color and blink mode of five of XT-10P states LED which is normal mode, offline mode, calling mode, talking mode and receiving call mode.

  • Page 20: Relay

     Relay Delay(sec): Allows door remain open for certain period from 1 to 10 seconds.  DTMF Option: XonTel XT-10P support 1、 2、 3、 4 digits DTMF unlock code. Please select one type and enter the corresponding code.  DTMF: Setup 1 digit DTMF code for remote unlock.

  • Page 21: Input

    Username & password: Users can setup the username and password for HTTP unlock. By default username is admin and password is xontel. Default URL format: http://192.168.10.236/fcgi/do?action=OpenDoor&UserName=admin&Password=xontel& DoorNum=1 where: 192.168.10.236 is XT-10P IP address. admin is XT-10P username. xontel is XT-10P password. Input To configure input settings go to Intercom->Input.

  • Page 22: Live Stream

     Open Relay: To choose a suitable relay for input connector. Live Stream To check the real-time video of XT-10P go to Intercom->Live Stream user also can check the real-time picture via URL: http://XT-10P IP address:8080/picture.jpg...

  • Page 23: Rtsp

    To configure XT-10P RTSP settings go to Intercom->RTSP Sections Description RTSP Basic To active the RTSP function, then XT-10P can be monitored. The URL for RTSP stream is: rtsp://XT-10P IP address/live/ch00_0 RTSP Stream To enable RTSP video and select the video codec. XT-10P supports H264 video codec.

  • Page 24: Onvif

    ONVIF 3.11 XT-10P supports ONVIF protocol, which means XT-10P camera can be searched by other devices, like NVR which supports ONVIF protocol as well. To configure XT-10P ONVIF settings go to Intercom->ONVIF Sections Description  ONVIF Mode: Two modes - Discoverable and Non- Discoverable.

  • Page 25: Motion

    Action to execute: Select a suitable way to receive the motion detection information (FTP, Email, SIP Call and HTTP). To setup FTP, Email and SIP call notifications, please refer to chapter 3.14. Motion Detect Time Setting Here you can set the time for XonTel XT-10P motion detection setting.

  • Page 26: Card Settings

    To manage card access system go to Intercom -> Card setting 3.13.1 Import / Export Card Data XT-10P supports import or Export the card data file, which is convenient for administrator to deal with a large number of cards. 3.13.2 Obtain and Add Card ①...

  • Page 27: Door Card Management

    3.13.3 Door card Management Valid card information will be shown in the list. Administrator could delete one card’s access permission or empty all the list.

  • Page 28: Action

    Action 3.14 To configure Email, FTP and SIP call notification settings in XT-10P go to Intercom -> Action...
  • Page 29 Sections Description Email Notification  Sender Email Address: Input the sender Email address.  Receiver Email Address: set the receiver email address.  -SMTP Server Address: Enter the SMTP server format.  SMTP User name: Enter the SMTP Username (sender Email address). ...

  • Page 30: Account Settings

    Account settings 3.15 3.15.1 Basic To configure XT-10P basic account settings go to Account -> Basic,...
  • Page 31 An outbound proxy server is used to receive all initiating request messages and route them to the designated SIP server. Note: If configured, all SIP request messages from the XT-10P will be sent to the outbound proxy server forcefully. Transport Type To display and configure Transport type for SIP message ...

  • Page 32: Advanced

    Advanced 3.15.2 To configure XT-10P advanced account settings go to Account -> Advanced...
  • Page 33 Caller ID Header: To configure which caller ID format to fetch for displaying on Phone UI.  Auto Answer: If enabled, XT-10P will be auto-answered when there is an incoming call for designated account.  Anonymous Call: If enabled, all outgoing call for the designated account will be anonymous number.
  • Page 34  Session Refresher: To configure who should be response for refreshing a session. Note: UAC means User Agent Client, here stands for XT-10P. UAS means User Agent Server, here stands for SIP server. Encryption To enable or disabled SRTP feature.

  • Page 35: Upgrade

    Upgrade 3.16 3.16.1 Basic In XT-10P web page go to Upgrade -> Basic Sections Description Firmware version To display firmware version, firmware version starts with model name. Hardware Version To display Hardware version. To select upgrading zip file from local or a remote server automatically.

  • Page 36: Advanced

    Export Log: Click to export temporary system log file to local PC. PCAP To make Packet capture for XT-10P Intercom.  If you want to start packet capture in XT-10P press “ Start“.  If you want to finish packet capture in XT-10P press “Stop“ ...

  • Page 37: Security

    Security 3.17 3.17.1 Basic To change XT-10P web login password and configure web login session timeout go to Security -> Basic Sections Description Web Password Modify To modify user’s password.  Current Password: The current password that you used. ...
