XT-12P
Quick Guide
Unpacking

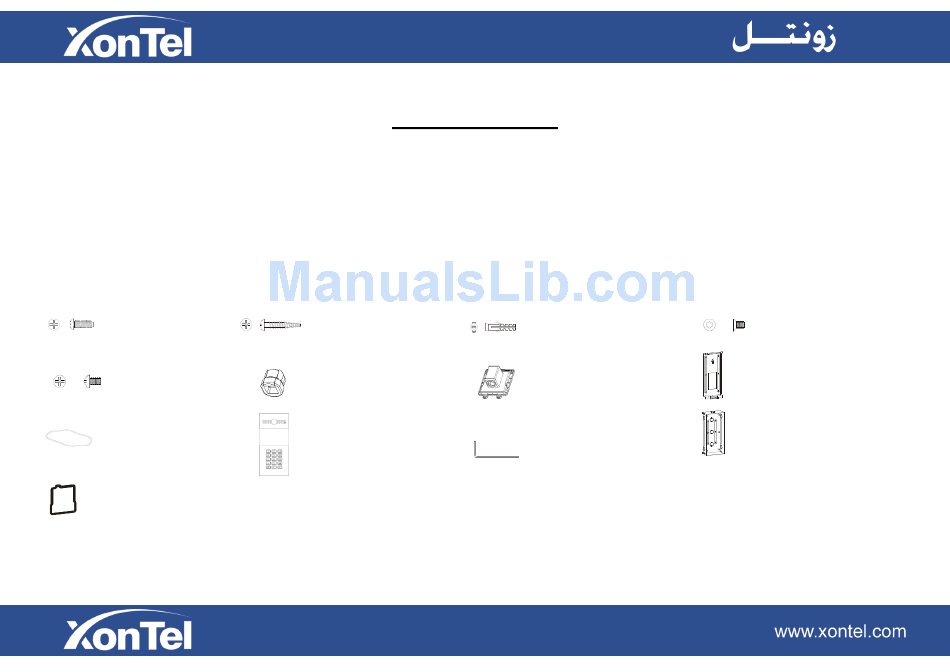

Please make sure the package contains the following items:
M4x10 screw x 6
ST4x20 screw x 6
M3x6 screw x 2
Screw fixing seat x 6
Stand x 1
M3x5 screw x 4
Back over x 1
Cable buckle x 1
Rope x 1
Embedded box x 1
XT-12P x 1
Wrench x 1
Silicon rubber sealing ring x 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT-12P and is the answer not in the manual?

Questions and answers

Related Manuals for XONTEL XT-12P

Summary of Contents for XONTEL XT-12P

  • Page 1 M3x6 screw x 2 Screw fixing seat x 6 Stand x 1 M3x5 screw x 4 Back over x 1 Cable buckle x 1 Rope x 1 Embedded box x 1 XT-12P x 1 Wrench x 1 Silicon rubber sealing ring x 1...

  • Page 2: Product Overview

    XT-12P Product Overview Camera Photosensitive sensor Infrared sensor Infrared LED Screen Keypad Manage center key Clear key Dial key XT-12P IP Intercom...
  • Page 3 XT-12P...

  • Page 4: Wall Bracket Installation

    XT-12P Installation Wall Bracket Installation Insert the embedded box Dig out a square hole Take down the embedded into the hole and make sure (height*width*depth=269.5 box, and then use a hand the cables of the door phone *122.4*60.5mm). drill with 5mm diameter...
  • Page 5 XT-12P If users don’t have ST4x20 screw, please follow the below installation method. square hole Use cement or non-corrosive structural (height*width*depth=269.5*1 adhesives to fill the gap between the 22.4*60.5mm). wall the adhesive material desiccation, Use 6 M4X10 screws go the to the next step...

  • Page 6: Back Cover Installation

    XT-12P Back cover Installation For convenient wiring, hang XT-12P on the bracket with rope then insert Take down the back the silicon rubber sealing ring into cover, cable buckle. the groove. Use 4 M3x5 screws to fix Route the cables of the device the back cover.

  • Page 7: Device Mounting

    XT-12P Device Mounting 1. Place the device into the wall bracket until the edges of which align to the wall. Then pull the device downward and ensure the groove of it hooks to the lock catches of the back 2. Use the Allen wrench to tighten the device with M3x6 screws.
  • Page 8 XT-12P Interface Description on PCB Board:...

  • Page 9: Application Scenario

    XT-12P Application Scenario (Third party) Video Phone Network Video Recorder (Third party) XT-12P XT-12P...

  • Page 10: Operation

    IP Address Checking: Press *2396# to enter administrator setting interface. Input the room number, press Dial key to make a call. Click System Information to get the IP address. XT-12P uses DHCP by default. Receive a call Account Registration: On web UI, go to the path: Account -> Basic page to register account and fill in the account information.
