XT-12P Door Phone User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT-12P and is the answer not in the manual?

Questions and answers

Related Manuals for XONTEL XT-12P

Summary of Contents for XONTEL XT-12P

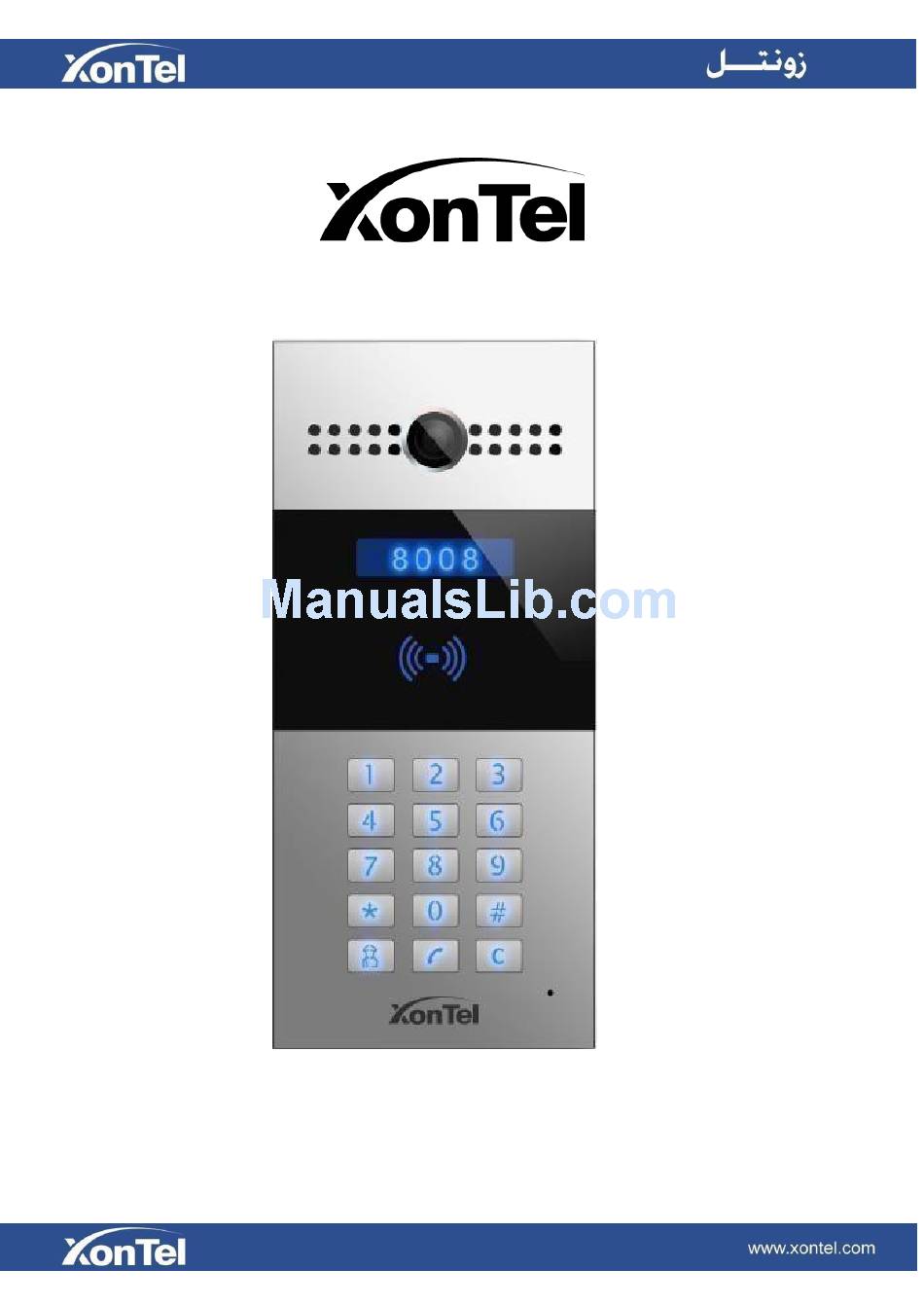

  • Page 1 XT-12P Door Phone User Manual...

  • Page 2: About This Manual

    About This Manual Thank you for choosing XonTel products. In user manual, we provides all functions and configurations you want to know about XonTel XT-12P IP intercom. Please verify the packaging content and network status before setting.

  • Page 3: Table Of Contents

    Content 1. Overview ................... 5 1.1. Product Description ......................5 1.2. Features..........................6 1.3. Keypad ..........................8 2. Configuration ................9 2.1. Administrator interface ...................... 9 2.1.1 System Information ....................9 2.1.2 Admin Settings ......................9 2.1.3 System Setting ......................10 2.2.
  • Page 4 4.7.2 Call Feature ......................33 4.7.3 Voice ........................34 4.7.4 Dial Plan ........................35 4.7.5 Multicast ........................ 36 4.7.6 Call log ........................37 4.7.7 Door log ........................38 4.8. Upgrade ..........................38 4.8.1 Basic ........................38 4.8.2 Advanced ........................ 39 4.9.

  • Page 5: Overview

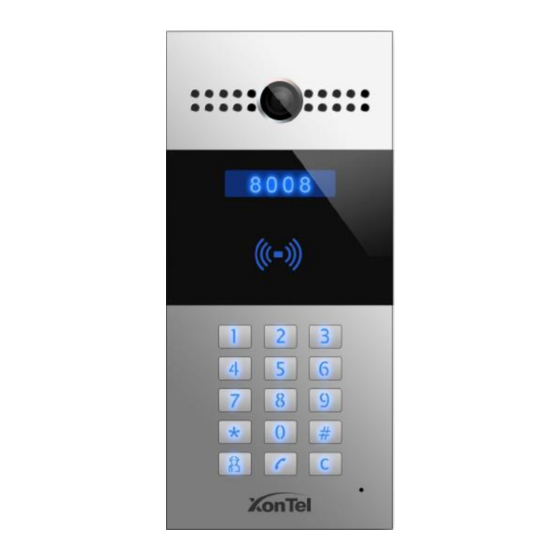

    1.1. Product Description XonTel XT-12P XonTel XT-12P is a SIP-compliant, hands-free and video outdoor phone. It can be connected with your IP Phone for remote unlock control and monitor. You can operate the indoor handset to communicate with visitors via voice and video, and...

  • Page 6: Features

    1.2. Features Highlight   Vandal resistant body, with a flush button  Wild-angle camera:120°  POE(IEEE802.3af, Power-over-Ethernet)  Two-way audio communication over IP network with Echo cancel feature  Complies with SIP Standard for easy integration in each SIP PBXs ...
  • Page 7 SIP Endpoint   SIP v1(RFC2543), SIP v2(RFC3261)  Audio codecs: G.711a, G.711μ, G.722, G.729  Video codecs: H264  Speech Quality: 7kHz Audio  Echo Cancellation  Voice Activation Detection  Comfort Noise Generator Video   Resolution: up to 720p ...

  • Page 8: Keypad

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP and ARP 1.3. Keypad Description Numeric Key Manage Center Key Dialing Key Delete Key...

  • Page 9: Configuration

    2. Configuration 2.1. Administrator interface Press *2396# to enter administrator interface. Administrator interface provides some advanced permissions to administrators, including System Information, Admin Settings and System Settings. 2.1.1 System Information Press 1 to enter System Information to check IP address, Mac address and Firmware version of the door phone.

  • Page 10: System Setting

    2.1.2.2 Admin Code Setting Admin code is used to enter administrator interface. The default code is 2396. Enter Admin Code Setting to input 4 digit new admin codes, click Dial key to save. 2.1.2.3 Service Code Setting Service Code Setting is used to enter user interface. The default code is 3888. Enter service code setting to input 4 digit new user codes, click Dial to save.

  • Page 11: User Interface

    2.2. User interface Press *3888# to enter user interface. User interface includes Public Pin Modif, Add User Cards and Add Private Pin. These functions can only be accessed by administrator. 2.2.1 Public Pin Modif The default public Pin is 33333333. Before you modify public Pin, users need to swipe admin card or enter admin code, then you can enter 8 digit new Public Pin, click Dial to save.

  • Page 12: Basic Using

    In the idle interface, press the account or IP address + Dial key to make a call. 3.2. Receive a call XonTel XT-12P will auto answer the incoming call by default. If users disable auto answer function, press dial key to answer the incoming call. 3.3. Unlock Unlock by Pin code: Users can unlock the door by using predefined Public Pin or Private Pin.

  • Page 13: Web

    4. Web 4.1. Obtain IP address The XonTel XT-12P use DHCP IP by default. Press *2396# to enter Administrator interface. Enter System Information to check the phone IP address. 4.2. Login the web Open a Web Browser, enter the corresponding IP address. Then, type the default...

  • Page 14: Status

    4.3. Status 4.3.1 Basic Status, including product information, network information and account information, this can be viewed from Status -> Basic. Sections Description Product Information To display the device’s information such as Model name, MAC address (IP device’s physical address), Firmware version and Hardware firmware.

  • Page 15: Intercom

    4.4. Intercom 4.4.1 Basic Go to the path: Intercom-Basic Sections Description Public Key Public Key is used to unlock.  Key Switch: User can disable or enable this function.  Key Value: The default public Key is 33333333. Users can modify this function.

  • Page 16: Advanced

    To configure the max call time.  Max Dial Time Dial in Time: When other phone calls to XT-12P, if ring tone is over the Dial in Time without answer. The call will be hang  Dial out Time: When XT-12P call to the other party, if the ringtone is over the Dial out Time without answer.

  • Page 17: Relay

    Photoresistor Photoresistor is used to sense the light intensity that XT-12P will auto enable infrared LED. You can adjust the Photosensitive value by yourself. Tamper Alarm Enable the Tamper Alarm, if the gravity of XT-12P changes, the phone will alarm. The Threshold value is smaller, the faster reaction of device.

  • Page 18: Input

    Username & password: Users can setup the username and password for HTTP unlock. by default username is admin and password is xontel URL format: http://192.168.1.102/fcgi/do?action=OpenDoor&UserName=admin&Password =xontel&DoorNum=1 where: 192.168.1.102 is XT-12P IP address admin is XT-12P username xontel is XT-12P password 4.4.4 Input...

  • Page 19: Live Stream

    Action Delay: Setup the action delay time. After the delay time, the phone will send to the action information in the corresponding way.  Open Relay: To choose a suitable relay for input connector. 4.4.5 Live Stream Sections Description Live Stream To check the real-time video from XT-12P.

  • Page 20: Rtsp

    RTSP Basic To active the RTSP function, then XT-12P can be monitored. RTSP Stream To enabled RTSP video and select the video codec. XT-12P supports H264 video codec. H.264 Video Parameters H264: A video stream compression standard. Different from H263, it provides an approximately identical level of video stream quality but a half bit rate.

  • Page 21: Onvif

    ONVIF software can search XT-12P.  User Name: To modify the user name you need. admin by default.  Password: To modify the password you want. xontel by default. Note: User name and password is used for authentication. 4.4.8 Motion Sections...

  • Page 22: Card Setting

    4.4.9 Card Setting Sections Description Import/Export Card Data To import or export the card data file. Only support .xml format.  Card Status Normal: Choose Normal mode when reading card.  Card Issuing: Choose Card Issuing mode when writing card. Card Event This feature is similar with the Input event.
  • Page 23 IC Key Name: To setup corresponding name for thecard.  IC Key Code: Place the card in the XT-12P RF Card Read area, then click Obtain button. After XT-12P reads the card code, click Add, the card information will show in the Door Card Management list.

  • Page 24: Action

    4.4.10 Action Sections Description Email Notification Sender Email Address: Input the sender email address Receiver Email Address: Input the receiver email address SMTP Server Address: Enter the SMTP server format SMTP User name: Enter the SMTP Username SMTP password: Enter the sender email password Email Subject: Enter the subject name.

  • Page 25: Account

    4.5. Account 4.5.1 Basic Sections Description SIP Account To display and configure the specific Account settings.  Status: To display register result.  Display Name: Which is sent to the other call party for display.  Register Name: Allocated by SIP server provider, used for authentication.
  • Page 26  Registration Period: The registration will expire after Registration period, the IP phone will re-register automatically within registration period. SIP Server 2 To display and configure Secondary SIP server settings. This is for redundancy, if registering to Primary SIP server fails, the IP phone will go to Secondary SIP server for registering.

  • Page 27: Advanced

    4.5.2 Advanced...
  • Page 28 Sections Description SIP Account To display current Account settings or to select which account to display. Codecs To display and configure available/unavailable codecs list. Codec means coder-decoder which is used to transfer analog signal to digital signal or vice versa. Familiar codecs are PCMU (G711U), PCMA (G711A), G722 and G729.
  • Page 29  PTime: Interval time between two consecutive RTP packets.  Anonymous Call: If enabled, all outgoing call for the designated account will be anonymous number.  Anonymous Call Rejection: If enabled, all incoming anonymous-out call for the designated account will be rejected. ...

  • Page 30: Network

    4.6. Network 4.6.1 Basic Sections Description LAN Port To display and configure LAN Port settings.  DHCP: If selected, IP phone will get IP address, Subnet Mask, Default Gateway and DNS server address from DHCP server automatically.  Static IP: If selected, you have to set IP address, Subnet Mask, Default Gateway and DNS server manually.

  • Page 31: Advanced

    4.6.2 Advanced Sections Description Local RTP To display and configure Local RTP settings.  Max RTP Port: Determine the maximum port that RTP stream can use.  Starting RTP Port: Determine the minimum port that RTP stream can use SNMP To display and configure SNMP settings.

  • Page 32: Phone

    TR069 To display and configure TR069 settings.  Active: To enable or disable TR069 feature.  Version: To select supported TR069 version (version1.0 or 1.1).  ACS/CPE: ACS is short for Auto configuration servers as server side, CPE is short for Customer-premise equipment as client side devices. ...

  • Page 33: Call Feature

    4.7.2 Call Feature Sections Description Mode Mode: Select the desired mode. DND (Do Not Disturb) allows IP phones to ignore any incoming calls.  Return Code when DND: Determine what response code should be sent back to server when there is an incoming call if DND on.

  • Page 34: Voice

     Intercom Mute: If enabled, once the call established, the callee will be muted.  Others Return Code When Refuse: Allows user to assign specific code as return code to SIP server when an incoming call is rejected.  Auto Answer Delay: To configure delay time before an incoming call is automatically answered.

  • Page 35: Dial Plan

    4.7.4 Dial Plan Sections Description Rules Management For easy management, users can export and import the replace rule file directly. (The export file format is .tgz, user need to unzip it, then check the .XML file. The Import format is .XML) Rules Allow user to select Replace rule or Dial-now to display or edit.

  • Page 36: Multicast

    4.7.5 Multicast Sections Description Multicast Setting To display and configure the Multicast setting.  Paging Barge: Choose the multicast number, the range is 1-10.  Paging priority Active: Enable o disable the multicast. Priority List To setup the multicast parameters. ...

  • Page 37: Call Log

    To display call history records. Available call history types are All calls, dialed calls, received calls, missed calls, and forwarded calls. Users can check the call history in detail. Tick the number to delete or delete all logs. XT-12P supports 100 call logs.

  • Page 38: Door Log

    4.7.7 Door log Sections Description Door Log To display unlock history. This interface can only show the RF card unlock history now. Users can check the unlock information in detail. User can delete one or all logs. The maximum door log is 500. 4.8.

  • Page 39: Advanced

    Note: Please make sure it’s right file format for right model. Firmware version To display firmware version, firmware version starts with model name. Hardware Version To display Hardware version. Reset to Factory Setting To enable you to reset IP phone’s setting to factory settings. Reboot To reboot IP phone remotely from Web UI.
  • Page 40 Sections Description PNP Option To display and configure PNP setting for Auto Provisioning.  PNP: Plug and Play, once PNP is enabled, the phone will send SIP subscription message to PNP server automatically to get Auto Provisioning server’s address. By default, this SIP message is sent to multicast address 224.0.1.75(PNP server address by standard).

  • Page 41: Security

    4.9. Security 4.9.1 Basic Sections Description Web Password Modify To modify user’s password.  Current Password: The current password you used.  New Password: Input new password you intend to use.  Confirm Password: Repeat the new password.
