Icom IC-720A Instruction Manual page 30

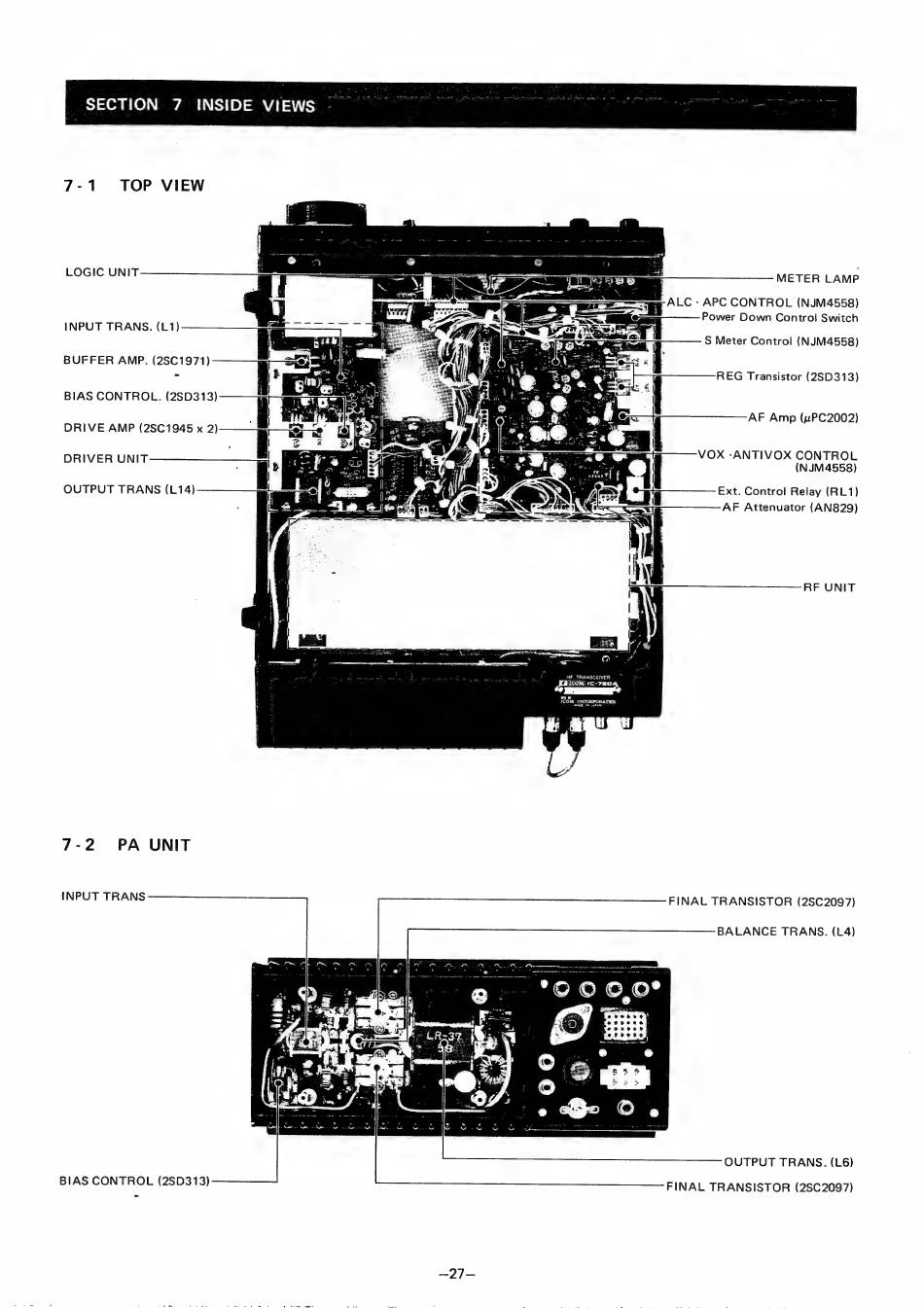

SECTION 7 INSIDE VIEWS
7-1 TOP VIEW
METER LAMP
Е АС. APC CONTROL (NJM4558)
= Power Down Control Switch
INPUT TRANS. (11)
S Meter Control (NJM4558)
BUFFER AMP. (2SC1971)
REG Transistor (250313)
BIAS CONTROL. (250313)
AF Amp (иРС2002)
DRIVE AMP (25С1945 x 2)
VOX -ANTIVOX CONTROL
Ext. Control Relay (RL1)
AF Attenuator (AN829)
OUTPUT TRANS (114)
RF UNIT
НЕ TRANSCEIVER `
дам iT- ==
ma
ICOM INCOAPORATED
MADE IN JAPAN
7-2 PA UNIT
BALANCE TRANS. (L4)
OUTPUT TRANS. (L6)
BIAS CONTROL (250313)
FINAL TRANSISTOR (28С2097)
Ops
