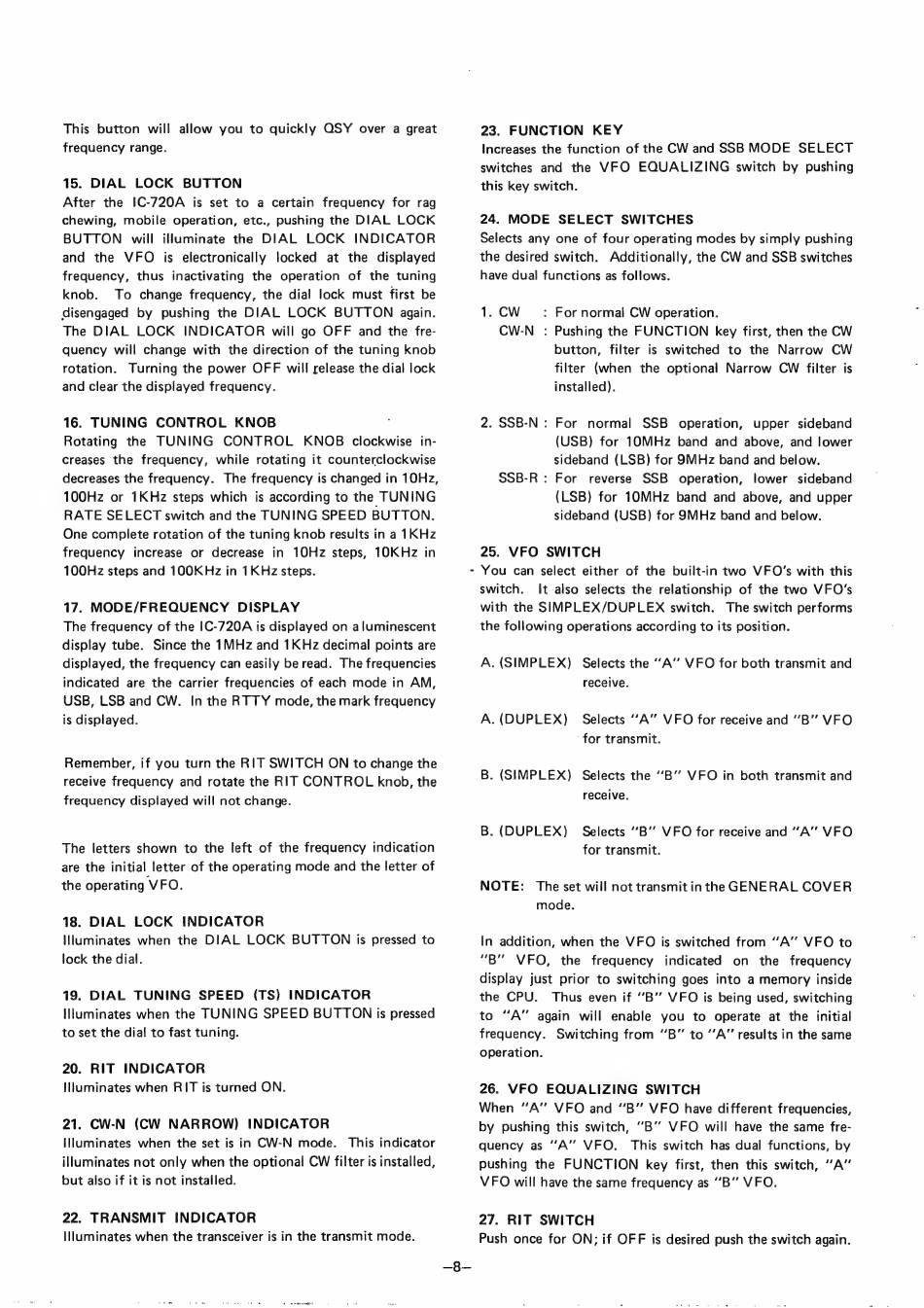

This button
will allow you to quickly QSY over a great
frequency range.
15. DIAL
LOCK
BUTTON
After the
IC-720A
is set to a certain
frequency
for rag
chewing,
mobile
operation,
etc., pushing the DIAL
LOCK
BUTTON
will illuminate the DIAL
LOCK
INDICATOR
and
the VFO
is electronically
locked
at the displayed
frequency,
thus
inactivating
the operation
of the tuning
knob.
To change frequency, the dial lock must first be
disengaged
by pushing the DIAL
LOCK
BUTTON
again.
The DIAL
LOCK
INDICATOR
will go OFF and the fre-
quency will change with the direction of the tuning knob
rotation.
Turning the power OFF will release the dial lock
and clear the displayed frequency.
16. TUNING
CONTROL
KNOB
Rotating
the TUNING
CONTROL
KNOB
clockwise
іп-
creases the frequency,
while rotating it counterclockwise
decreases the frequency.
The frequency is changed in 10Hz,
100Hz or 1KHz steps which is according to the TUNING
RATE SELECT switch and the TUNING SPEED BUTTON.
One complete rotation of the tuning knob results in a 1KHz
frequency
increase or decrease
іп 10Hz steps, 10KHz
in
100Н2 steps and
100K Hz in 1K Hz steps.
17. MODE/FREQUENCY
DISPLAY
The frequency of the IC-720A is displayed on aluminescent
display tube.
Since the 1MHz and 1KHz decimal points are
displayed, the frequency can easily Бе read. The frequencies
indicated are the carrier frequencies of each mode in AM,
USB, LSB and CW.
In the RTTY mode, the mark frequency
is displayed.
Remember, if you turn the RIT SWITCH ON to change the
receive frequency and rotate the RIT CONTROL. knob, the
frequency displayed will not change.
The letters shown to the left of the frequency indication
are the initial letter of the operating mode and the letter of
the operating VFO.
18. DIAL
LOCK
INDICATOR
illuminates when
the DIAL
LOCK
BUTTON
is pressed to
lock the dial.
19. DIAL
TUNING
SPEED
(TS) INDICATOR
illuminates when the TUNING
SPEED BUTTON is pressed
to set the dial to fast tuning.
20. RIT
INDICATOR
Шитіпаїеѕ when RIT is turned ОМ.
21. CW-N
(CW NARROW)
INDICATOR
Шитіпаїеѕ
when the set is іп CW-N mode.
This indicator
illuminates not only when the optional CW filter is installed,
but also if it is not installed.
22. TRANSMIT
INDICATOR
IIluminates when the transceiver іс in the transmit mode.
23. FUNCTION
KEY
Increases the function of the CW and SSB MODE
SELECT
switches
and the VFO
EQUALIZING
switch by pushing
this key switch.
24.
MODE
SELECT
SWITCHES
Selects any one of four operating modes by simply pushing
the desired switch.
Additionally, the CW and SSB switches
have dual functions as follows.
: For normal CW operation.
: Pushing the FUNCTION
key first, then the CW
button,
filter is switched
to the Narrow
CW
filter (when the optional Narrow CW filter is
installed).
CW-N
2. SSB-N : For
normal
SSB
operation,
upper
sideband
(USB) for 10MHz
band
and above, and lower
sideband (LSB) for 9MHz band and below.
For
reverse
SSB
operation,
lower
sideband
(LSB) for 10MHz band and above, and upper
sideband (USB) for 9MHz band and below.
SSB-R :
25. VFO
SWITCH
You can select either of the built-in two VFO''s with this
switch.
It also selects the relationship of the two МЕО"
with the SIMPLEX/DUPLEX
switch.
The switch performs
the following operations according to its position.
А. (SIMPLEX)
Selects the "А" VFO for both transmit and
receive.
А. (DUPLEX)
Selects "А" VFO for receive and "В" VFO
"Тог transmit.
В. (SIMPLEX)
Selects the "В" VFO
in both transmit апа
receive.
B. (DUPLEX)
Selects "В" VFO for receive апа "А" VFO
for transmit.
NOTE:
The set will not transmit in the GENERAL COVER
mode.
In addition, when the VFO is switched from "A" VFO to
"Б"
VFO,
the
frequency
indicated
on
the
frequency
display just prior to switching goes into a memory inside
the CPU.
Thus even if "В" VFO is being used, switching
to "А"
again
will enable
you to operate at the initial
frequency.
Switching from "В" to "А" results in the same
Operation.
26. VFO
EQUALIZING
SWITCH
When
"А" VFO апа "В" VFO have different frequencies,
by pushing this switch, "В" VFO will have the same fre-
quency
as "А"
VFO.
This switch
has dual functions, by
pushing the
FUNCTION
key first, then this switch, "А"
VFO will have the same frequency as "В" VFO.
27. RIT SWITCH
Push once for ON; if OFF is desired push the switch again.
