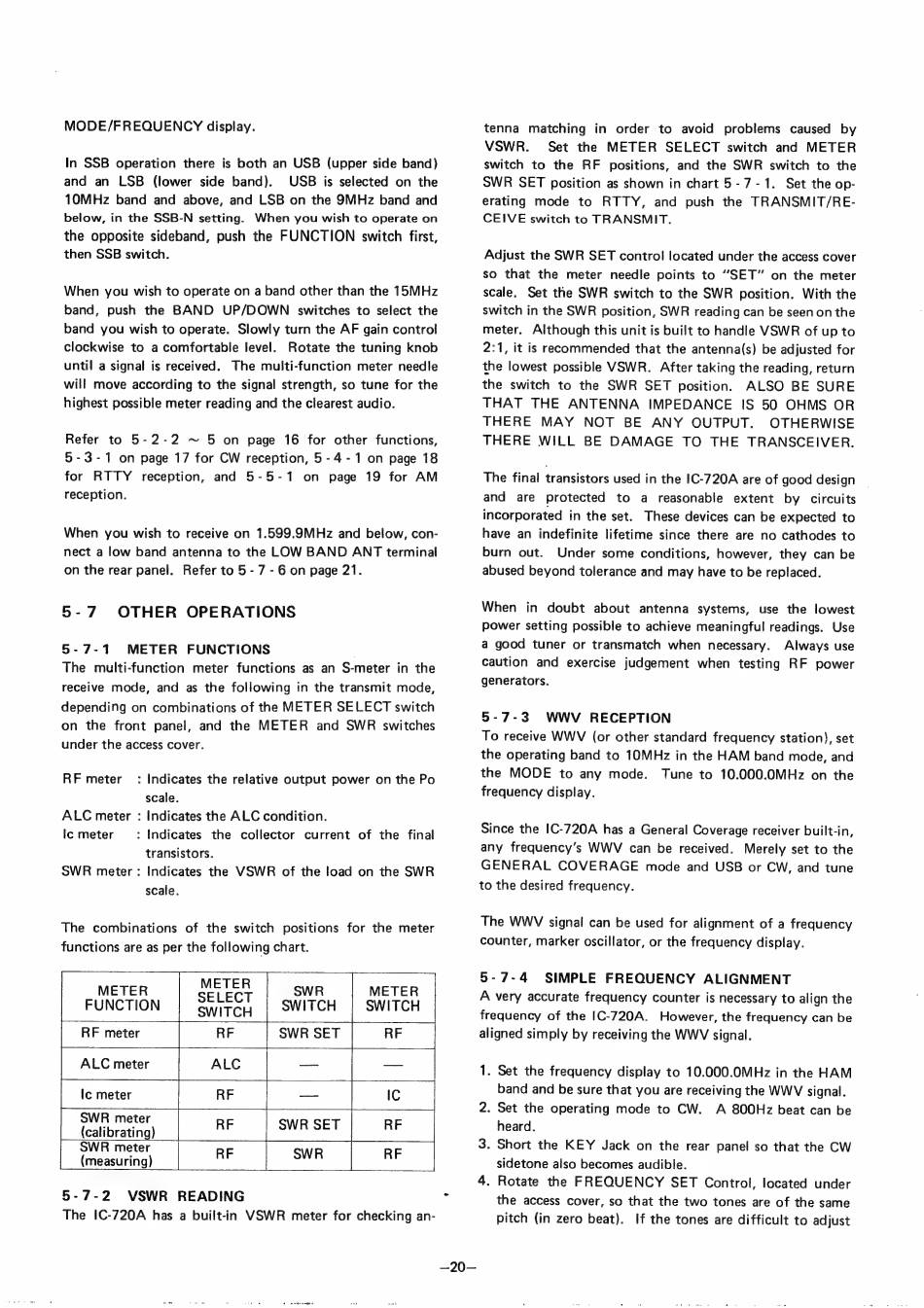

MODE/FREQUENCY display.
In SSB operation
there is both an USB
(upper side band)
and an LSB
(lower side band).
USB is selected on the
10MHz
band and above, and LSB on the 9MHz band and
below, in the SSB-N
setting.
When you wish to operate on
the opposite sideband, push the FUNCTION
switch first,
then SSB switch.
When you wish to operate on а band other than the 15MHz
band,
push the BAND
UP/DOWN
switches to select the
band you wish to operate.
Slowly turn the AF gain control
clockwise to a comfortable level.
Rotate the tuning knob
until a signal is received.
The multi-function meter needle
will move according to the signal strength, so tune for the
highest possible meter reading and the clearest audio.
Refer
to
5-2-2
~
5 on
page
16 for other
functions,
5-3-1
on page 17 for CW reception,
5-4-1 on page 18
for
RTTY
reception,
and
5-5-1
on
page
19 for AM
reception.
When you wish to receive on 1.599.9MHz and below, con-
nect a low band antenna to the LOW BAND ANT terminal
on the rear panel.
Refer to 5 - 7 - 6 on page 21.
5-7
OTHER
OPERATIONS
5-7-1
METER
FUNCTIONS
|
The multi-function
meter functions as ап S-meter in the
receive mode, and as the following in the transmit mode,
depending on combinations of the METER SELECT switch
on the front panel, and the METER
and SWR switches
under the access cover.
RF meter
: Indicates the relative output power оп the Ро
scale.
ALC meter : Indicates the ALC condition.
Ic meter
: Indicates
the
collector
current
of the final
transistors.
SWR meter : Indicates the VSWR
of the load on the SWR
scale.
The combinations
of the switch
positions for the meter
functions are as per the following chart.
METER
SELECT
SWITCH
METER
SWITCH
RF
5-7-2
VSWR
READING
The IC-720A has a built-in VSWR meter for checking an-
METER
FUNCTION
RF meter
SWR SET
ALC meter
ALC
іс meter
RF
SWR meter
(calibrating)
SWR meter
(measuring)
SWR SET
_20—
tenna
matching
іп order
to avoid
problems
caused
by
VSWR.
Set the
METER
SELECT
switch
and METER
switch to the RF
positions, and the SWR
switch to the
SWR SET position as shown in chart 5 - 7 - 1. Set the op-
erating mode
to RTTY,
and push the TRANSMIT/RE-
CEIVE
switch to TRANSMIT.
Adjust the SWR SET control located under the access cover
so that the meter
needle points to "SET"
on the meter
scale.
Set the SWR switch to the SWR position.
With the
switch іп the SWR position, SWR reading can be seen оп the
meter.
Although this unit is built to handle VSWR of up to
2:1, it is recommended that the antenna(s) be adjusted for
the lowest possible VSWR.
After taking the reading, return
the switch
to the SWR
SET position.
ALSO
BE SURE
THAT
THE
ANTENNA
IMPEDANCE
15 50 OHMS
OR
THERE
MAY
NOT
BE
ANY
OUTPUT.
OTHERWISE
THERE
WILL
BE DAMAGE
TO
THE
TRANSCEIVER.
The final transistors used in the ІС-720А are of good design
and
аге
protected
to
a
reasonable
extent
by
circuits
incorporated
in the set.
These devices can be expected to
have an indefinite lifetime since there are no cathodes to
burn
out.
Under
some
conditions,
however,
they can be
abused beyond tolerance and may have to be replaced.
When
in doubt
about
antenna
systems,
use the lowest
power setting possible to achieve meaningful readings.
Use
a good tuner or transmatch
when
necessary.
Always use
Caution
and exercise judgement
when
testing RF power
generators.
5-7-3
WWV
RECEPTION
To receive WWV
(or other standard frequency station}, set
the operating band to 10MHz in the HAM band mode, and
the MODE
to any mode.
Tune to 10.000.0MHz
on the
frequency display.
Since the IC-720A has a General Coverage receiver built-in,
any frequency's WWV
can be received.
Merely set to the
GENERAL
COVERAGE
mode
and USB or CW, and tune
to the desired frequency.
The WWV signal сап be used for alignment of a frequency
counter, marker oscillator, or the frequency display.
5-7-4
SIMPLE
FREQUENCY
ALIGNMENT
A very accurate frequency counter is necessary to align the
frequency of the IC-720A.
However, the frequency can be
aligned simply by receiving the WWV signal.
. Set the frequency display to 10.000.0MHz in the HAM
band and be sure that you are receiving the WWV signal.
. Set the operating mode to CW.
A 800Hz beat can be
heard.
