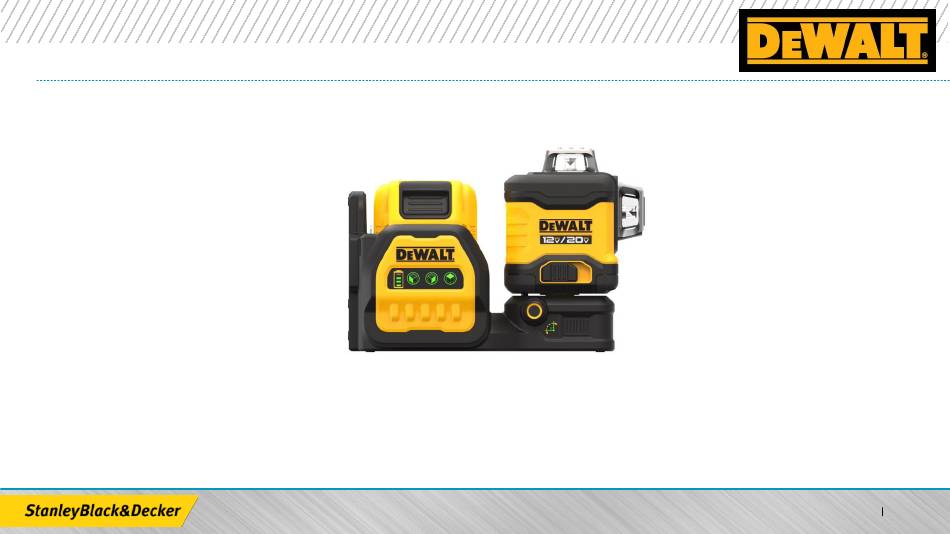

18V Crossline lasers
DCE088G18 – DCE822G18 - DCE089G18
Eddy Laermans 1/2021 Version V1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DCE088G18 and is the answer not in the manual?

Questions and answers

Summary of Contents for DeWalt DCE088G18

  • Page 1 18V Crossline lasers DCE088G18 – DCE822G18 - DCE089G18 Eddy Laermans 1/2021 Version V1...
  • Page 2 Legend of Icons present into training document ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH CHECK ÜBERPRÜFEN CONTROLLARE CONTROLER COMPROBAR VERIFIQUE CONTROLEREN ATTENTION ! ACHTUNG ! ATTENZIONE ! ATTENTION ! ATENCION ! ATENÇÃO! ATTENTIE ! TOURNEZ DANS GIRAR SENTIDO TURN COUNTER DREHEN GEGEN GIRARE IN SENSO LE SENS INVERSE...
  • Page 3 Legend of Icons present into training document ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH GRÖSSE DIMENSIONE VITE TAMAÑO LLAVE TAMANHO CHAVE HEX KEY SIZE INNENSECHSKANT- TAILLE SIX PAN INBUSSLEUTEL ESAGONALE EXAGONAL SCHLÜSSEL TORX- TORX TORX HEAD CACCIAVITE TOURNEVIS DESTORNILLAD SCHRAUBEN- CHAVE TORX SCHROEVEN SCREWDRIVER...
  • Page 4 Legend of Icons present into training document ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH SERIAL SERIAL NUMBER ORDNUNGSNUMMER NUMERO DI SERIE NUMÉRO DE SÉRIE NÚMERO DE SERIE NÚMERO DE SÉRIE SERIE NUMMER DATE HERSTELLUNGS- DATA DI FECHA CÓDIGO DE DATE CODE DATE CODE DATUM CODE DATUM...
  • Page 5 SAFETY: before to attempt the repair, the following should be observed • In General: • Ensure that the correct tool is used and only use good quality hand tools. • Ensure the work shop is clean and tidy. • Always wear protective clothing, •...
  • Page 6 Visit www.2helpu.com for parts...
  • Page 7 Visit www.2helpu.com for manual and or more specifications...
  • Page 8 Product registration: date code and serial number DATE SERIAL CODE...
  • Page 9: Used Tools

    Used tools:...
  • Page 10 Check: Batteries and Charger...
  • Page 11 Disassemble support foot 6 X TX9...
  • Page 12 Disassemble the the control mechanicm 2 X TX6...
  • Page 13 Disassemble keypad 6 X Tx9...
  • Page 14 4 X TX6...
  • Page 15 Disassemble magnet holder 8 X Tx9...
  • Page 16 Disassemble uper case / laser head for DCE0825G18...
  • Page 17 Disassemble uper case / laser head for DCE0825G18 2 X TX9 2 X TX9 2 X TX6...
  • Page 18 Disassemble uper case / laser head for DCE088G18...
  • Page 19 Disassemble uper case / laser head for DCE088G18 2 X TX9 2 X TX9...
  • Page 20 Disassemble uper case / laser head for DCE089G18...
  • Page 21 Disassemble uper case / laser head for DCE089G18 8 X TX6 4 X TX9...
  • Page 22 Adjustment screws /calibration DCE088G18 1 X TX9 1 X TX9...
  • Page 23 Adjustment screws /calibration DCE089G18 1 X TX9 1 X TX9...
  • Page 24 Adjustment screws /calibration DCE0825G18 1 or 2 X Tx9 1 X Tx9...
  • Page 25 How to deal with calibration? (short version) • Safety: • Mark your laser stand to inform visitors that they enter an area with laser tools in operations and pass a zone with laser beams. • Avoid that laser tools are working on eye level •...
  • Page 26 How can we adjust crossline lasers in case of misalignment? Adjustment of the Y axes Adjustment of the X axes...
  • Page 27: How It Works

    How it works? Important remark: The setup in a box is only for explanation of the adjustment screws and method !! This is not a life test environment !!
  • Page 28 X axe adjustment Move the beam to the right, adjust anti - clock wise...
  • Page 29 X axe adjustment Move the beam to the left, adjust clock wise...
  • Page 30 Y axe adjustment (turn the laser 90°- your laser face with the Y axe the opposite target) Move the beam to the right, adjust anti - clock wise...
  • Page 31 Y axe adjustment Move the beam to the left, adjust clock wise...
  • Page 32 What to do after adjustment? Finalize your calibration activity: • Seal and block the adjustment screws, use herefore a block varnish to fix Check the tilt function of the laser. • Lift the laser a couple degrees (see specs in the manual) and check that the laser starts to blink in tilt mode (X and Y axes).
  • Page 33 SAFETY: after the repair, the following should be observed TEST 2helpu.com • General: • Ensure that the correct tool is used and only use good quality hand tools. • Ensure the workshop is clean and tidy. • Always wear protective clothing. •...
