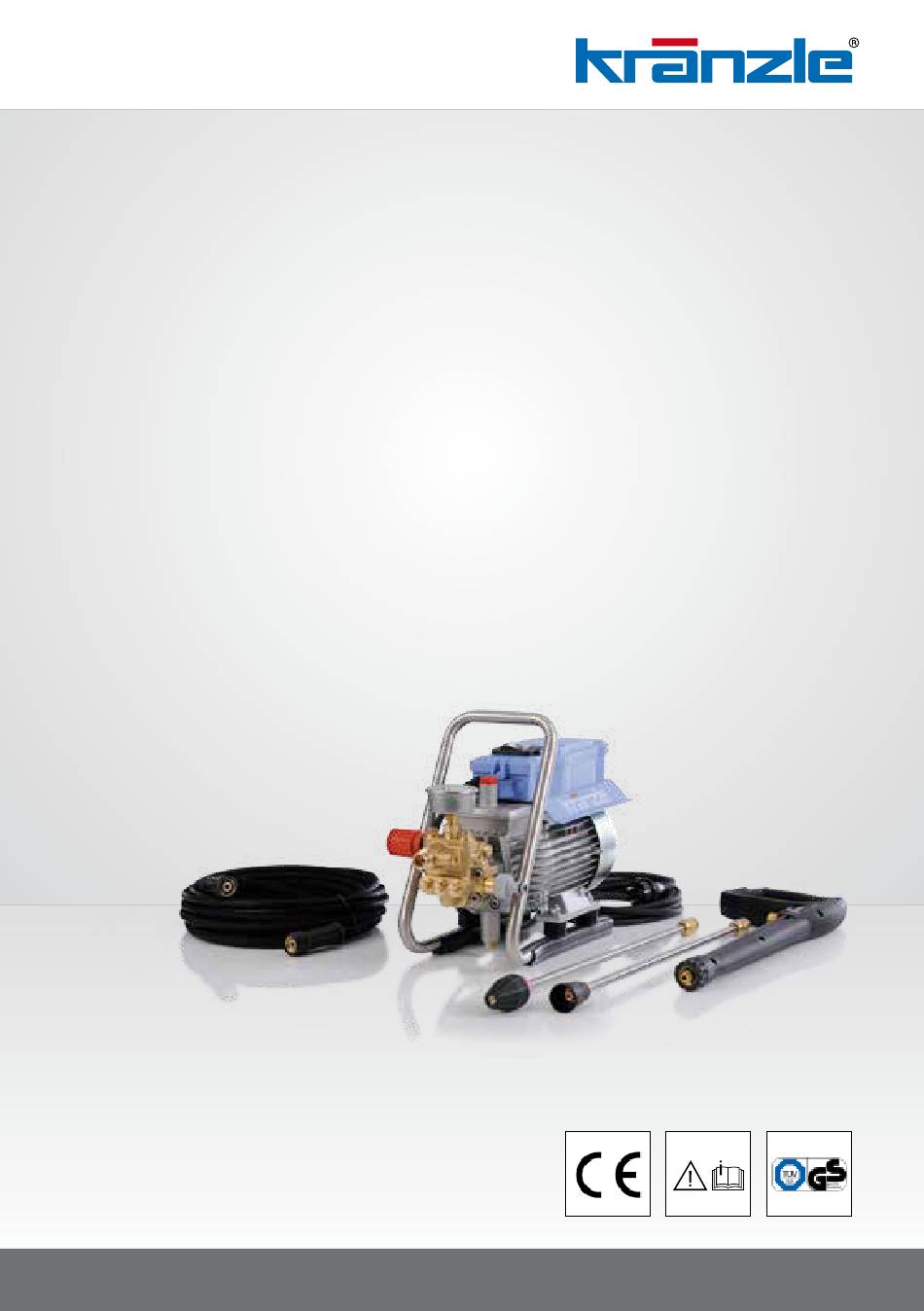

- Page 1 - USA - H i g h - p r e s s u r e c l e a n e r s K 1622 Read and conform safety instructions before use! Keep instructions in a safe place for later use and pass them on to any future user.
- Page 2 - removing of - flagstones - containers old paint - terraces - machines etc. Technical Kränzle data K 1622 Operating pressure, 150 - 1600 psi steplessly adjustable Nozzle size 20 028 Perm. overpressure 1800 psi Water output at 1700 rpm 1,7 GPM Hot water input (1-8 bar) max.
-
Page 3: Connection Principle
Description Water 115 V Connection principle The KRÄNZLE K 1622 - high pressure cleaners are mobile machines. The de- sign can be seen from the diagram. Components 5 Unloader valve - safety valve 1 Water inlet connection with filter 6 High pressure hose... - Page 4 Description Lance with trigger gun The machine can only be operated when the safety trigger is squeezed. The machine can only be operated when the safety trigger is squeezed. When the lever is squeezed, the spray gun opens. The liquid is then pumped to the nozzle.
-
Page 5: Motor Protection Switch
Description Motor protection switch The motor is protected from overload by a motor protection switch, which automatically cuts out the motor in the event of overload. However should the switch trip frequently, the cause of the malfunction should be located and recti- fied (see page 6). -
Page 6: Electrical Connection
30mA residual current operated device. The socket must be pro- tected with a 15A delay action fuse on the mains side. KRÄNZLE K 1622 115 Volt / 60 Hz When using an extension cable, this must have an earthed lead which is properly connected to the socket. -
Page 7: Water Connection
Description Water connection: Please check that the high pressure cleaner has available the quan- tity of water specified on page 2 (techn. specifications) (Litres per minute). Test: Allow the water to run through the supply hose into a bucket for 1 minute. The received quantity of water must be at least the quantity given on page 2 !!! Lack of water causes fast wear on seals (no warranty) -
Page 8: High Pressure Hose And Spray Device
Description Brief operating instructions When operating your high pressure cleaner pay attention that it is in a horizontal position. 1. Connect the high pressure hose with the spray gun. 2. Connect to suitable water supply. 3. Flush the air from the pump (open and close the spray gun several times) 4. -
Page 9: Safety Notes
Safety notes As to the recoil - see notice on page 2! Apply the safety catch on the spray gun after each use, in order to prevent unintentional spraying! Always aim the underbody lance. Note when using an angled underbody lance, like for example lance no. -
Page 10: This Is What You've Purchased
This is what you’ve purchased: 1. Spray lance with high pressure nozzle 2. Spray gun with insulated pistol grip and screw connection 3. KRÄNZLE - High pressure cleaners K 1622 5. Operating instructions 4. Steel braided high pressure hose 10 m, NW 6... -
Page 11: Preparation For Use
Preparation for use 1. Check oil level Oil has to be visible in the oil-level sight glass 2. Connect the high pressure lance to the spray gun. 3. Unroll hose without kinks and connect with handgun and pump. Max. extension 20 m-HP hose or 2x 10 m with hose connections. - Page 12 Preparation for use 4. The machine can be connected to a pressurised water line with 60°C hot water (see page 2). Ensure that the water supply is clean when sucking from external sources. The hose cross section must be at least 1/2“...
-
Page 13: To Shut Down The Pump
Preparation for use Adjusting the pressure This is accomplished by turning the handwheel. The default setting is maximum pressure. To shut down the pump: 1. Switch off the machine. 2. Cut off the water supply. 3. Open the spray gun briefly until the pressure is released. - Page 14 This is prohibited ! Never allow children to use the high pressure cleaner ! Never direct the water jet at the machine itself ! Never direct the water jet at a power socket !
- Page 15 This is prohibited ! Do not damage the power cable or repair it incorrectly ! (Replace defective or damaged cables immediately ! Never work with a defective app- liance !) Never direct the water jet at people or animals ! Never pull the high pressure hose if it has formed kinks or “nooses”! Never pull the hose over sharp...
- Page 16 Additional KRÄNZLE-accessories for ... Rotary scrubbing brush Order No. 41.050 1 Drain and pipe cleaning hose 10 m - Order No. 41.058 1 15 m - Order No. 41.058 Underbody lance Order No. 41.075 Flat brush Order No. 41.073 Dirtkiller 028 Order No.
- Page 17 ... for further combination possibilities Car cleaning, glass, caravan, boat etc. rotary washing brush with 40 cm exten- sion and ST 30 nipple M 22 x 1.5 Cleaning pipes, channels and drains: pipe cleaning hose with KN nozzle and ST 30 nipple M 22 x 1.<<<<<5 Underbody cleaning of cars, trailers and equipment: lance 90 cm with high pressure nozzle and ST 30 nipple M 22 x 1.5.
-
Page 18: Small Repairs
Small repairs - Nozzle dirty or sticky! Pressure gauge does not show full pressure. The high-pressure Water comes out in spurts. hose vibrates. If you do not use the high-pressure cleaner for some time the valves can stick the gauge When a valve is blocked, or the high shows little... -
Page 19: Do-It-Yourself
- Do it yourself! The nozzle is blocked! No water but the gauge shows full pressure ! but if you You should now have Rinse the hose a powerful only get a few through stream of drops from first. water, the lance Using the flat spray lance you remove the lance and clean... - Page 20 Small repairs - Do it yourself! Stopping leaks from hose or gun After closing the gun the manometer shows full pressure ! The pressure regulator switches on and off continuously! If the Pull out the First dis- manometer power plug! connect the shows full hose!
-
Page 21: Gun With Lance
Gun with lance Descriptio Qty. Ord.-No Pistolenschale re+li 12.450 Schraube 3,5 x 14 44.525 Reparatursatz M2000 12.454 O-Ring 9,3 x 2,4 13.273 ST 30-Nippel M 22 x 1,5 13.363 Rohr 500 lang, bds. M12 x 1 41.527 1 Aluminium Dichtring 13.275 1 Klemmstück 41.155 2... -
Page 22: Complete Assembly
Complete assembly... - Page 23 KRÄNZLE 1622 Spare parts list KRÄNZLE 1622 Complete assembly Description Qty. Ord.-No Tragbügel 44.581 Gummiprofilfuß 44.582 Senkschraube M6x20 43.473 1 Gummipuffer 30 x 20 46.023 1 Scheibe 8,4 41.409 Mutter DIN985 M8 41.410 M2000 Pistole 12.480 Vario-Jet-Lanze 028 41.156 8-028 Dirtkiller 03 cpl.
- Page 24 Motor...
- Page 25 KRÄNZLE 1622 Spare parts list KRÄNZLE 1622 Motor Description Qty. Ord.-No Ölgehäuse mit Dichtung und Deckel 44.501 Stator 23.002 2 Motorwelle mit Rotor 43.104 Passfeder 6 x 6 x 20 41.483 1 Motor-Lager B-Seite Z-Lager 43.025 Motor-Lager A-Seite Schulterl. 43.026 Schelle für Lüfterrad 44.534 1 Öldichtung 25 x 35 x 7...
- Page 26 Transmission...
- Page 27 KRÄNZLE 1622...
-
Page 28: Valve Housing
Valve housing... - Page 29 KRÄNZLE 1622...
- Page 30 Dirtkiller (special accessory) Spare parts list Dirtkiller Description Qty. Ord.-No Sprühkörper 41.520 O-Ring 6,88 x 1,68 41.521 Düsensitz 41.522 Düse 028 41.523-028 Stabilisator 41.524 O-Ring 40.016 1 Sprühstopfen 41.526 Rohr 500 mm 2x M 12 x 1 41.527 1 ST 30-Nippel M 22 x 1,5 / M 12 x 1 ISK 13.363 Front cap for Dirtkiller 41.528 1...
- Page 31 Wiring diagram / Warranty Wiring diagram for KRÄNZLE K 1622 C : 80 µF braun = brown blau = blue schw = black = red = yellow Terminal strip = green = white Weber-Unimat WT 22 - 551 14,5A excess current release...
-
Page 32: General Rules
General rules Inspections The machine must be inspected according to the “Guidelines for Liquid Spray De- vices” at least once every 12 months by a qualified person, to ensure that contin- ued safe operation is guarateed. The results of the inspection are to be recorded in writing. -
Page 33: Ec Declaration Of Conformity
We hereby declare, that the high-pressure models: Manfred Bauer, Fa. Josef Kränzle (techn. documentation available Rudolf-Diesel-Str. 20, 89257 Illertissen from): K 1622: 420 l/h; Nominal flow Machine guideline 2006/42/EEC comply with the following guidelines Specification for electromagnetic and specifications and their amend-... - Page 34 Notes...
- Page 35 Notes...
- Page 36 I . K r ä n z l e G m b H E l p k e 9 7 D - 3 3 6 0 5 B i e l e f e l d Re p r i n t o n l y a l l o w e d w i t h t h e a u t h o r i z a t i o n o f K r ä n z l e A s d a t e o f 0 3 / 2 4 / 2 0 1 4 Made Germany...
